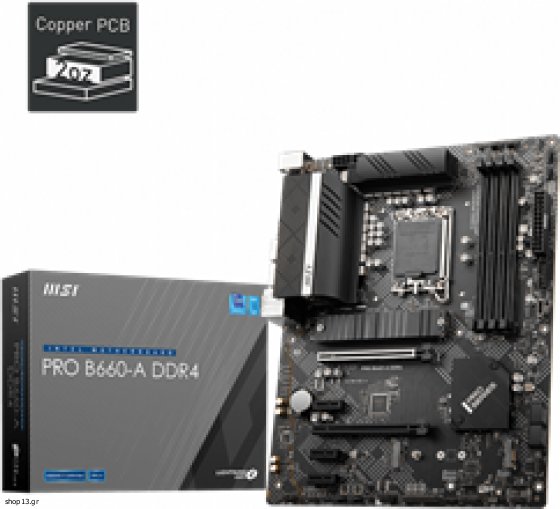

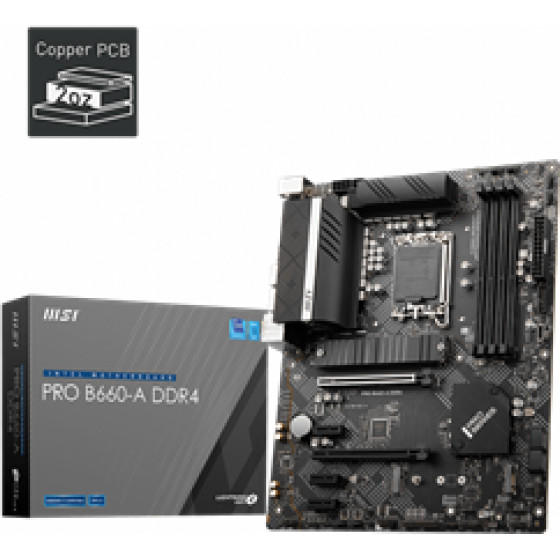

MSI Mb Socket Intel LGA1700 12th GEN, Cs Intel B660, 4 Dimm Sockets DDR4, D-SUB/HDMI/DP, Lan 2.5G, ATX, 3YW. - (Pro B660-A DDR4)

CPU Support: Socket Intel LGA1700 for 12th Generation Intel CPU Core and Intel Pentium Gold/Celeron
Chipset: Intel B660
MB Size: ATX
Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 4800+MHz (OC).Max 128GB. Dual Channel architecture. Support Intel XMP
VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU
VGA Out: 1xD-Sub (supports a maximum resolution of 2048x1536 @60Hz, 1920x1200 @60Hz), 1x HDMI v2.1port (supports a maximum resolution of4K @60Hz), 1x Display Port v1.4 (supports a maximum resolution of 4K @60Hz), )
Slots: 2x PCI-E (x16) v3.0/v4.0, 3x PCI-E (x1) v3.0, 1x M.2 slot with E-key for PCIe WiFi module only (M2_3)
Storage: 4x SATA 6Gb/s ports support RAID 0/1/5/10. 2x M.2 slots (Key M), M2_1 slot Supports PCIe 4.0 x4, Supports 2242/ 2260/ 2280, 22110storage devices. M2_2 slot Supports PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices. Intel Optane™ Memory
NIC: 1x Realtek RTL8125B 2.5Gbps LAN controller
Audio: 7.1 Channel HD Audio
I/O: 1x PS/2 Mouse/Keyboard port, 1x D-Sub,1x HDMI, 1x Display Port, 4x (+2int) USB2.0, 2x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C,1x RJ45 (LAN),5 Audio jacks, 1x front panel audio connector, 1x USB 3.2 Gen 1 5Gbps Type-C internal port
Special: Front Type-C USB 3.2 Gen 1 5Gbps, M.2 SHIELD FROZR, Core Boost,Memory Boost, Lightning Gen4 Solution, Extended Heatsink Design,Frozr AI Cooling, EZ Debug LED, 8+4 Pin power supply
Εγγύηση: 3 χρόνια
