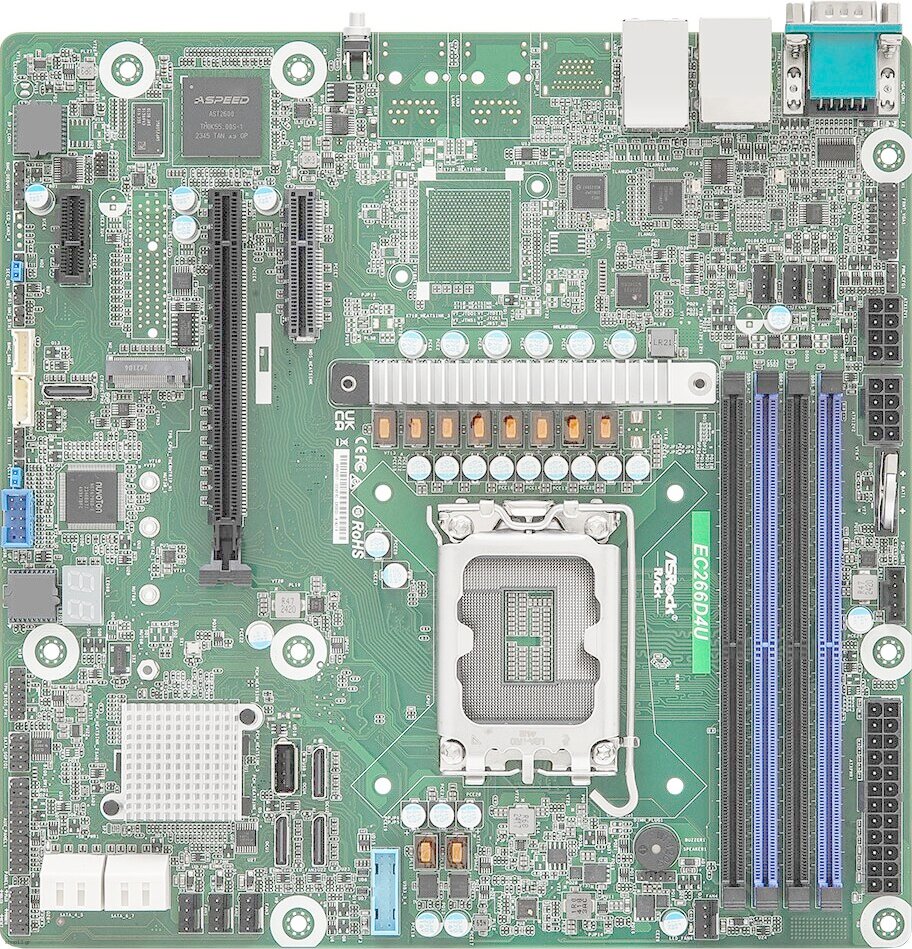

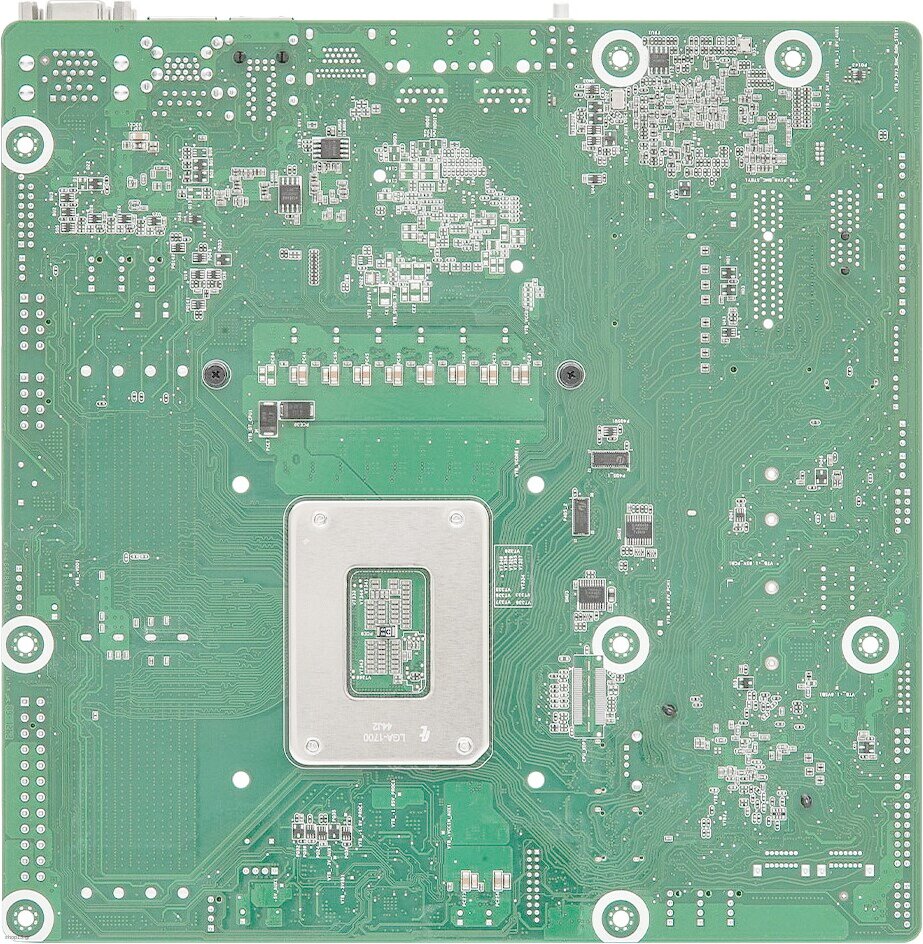

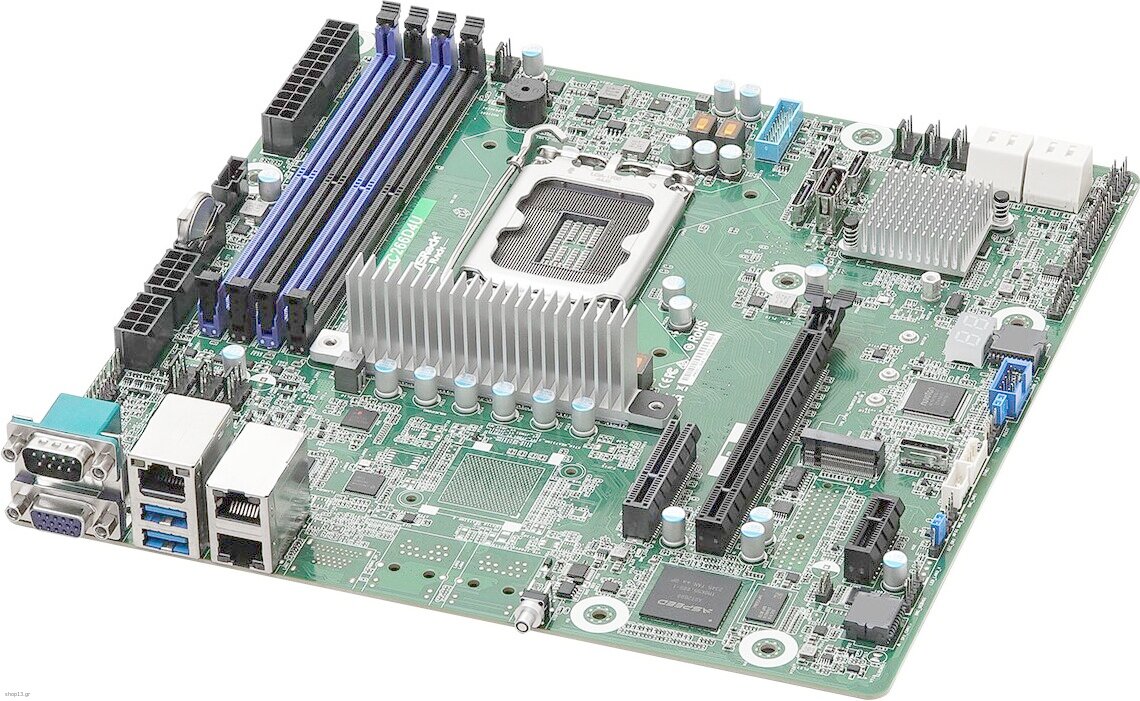

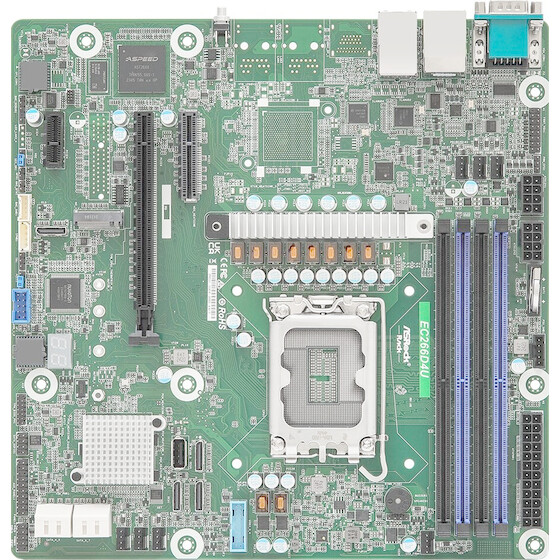

Asrock Motherboard Intel C266 Lga 1700 Micro Atx - (EC266D4U)

Processor
Compatible processor series: Intel Xeon E, Intel(R) Pentium(R) Gold, Intel(R) Xeon(R)
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Graphics
On-board graphics card model: Aspeed AST2600

Features
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
PC health monitoring: CPU, Fan
Motherboard chipset: Intel C266

Memory
Supported memory types: DDR5-SDRAM
Memory voltage: 1.1
Number of memory slots: 4
Maximum internal memory: 32 GB
ECC ?ompatibility: ECC
Supported memory clock speed (max): 4400 MHz

Operational conditions
Storage relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
TPM connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
USB 2.0 connectors: 3
ATX Power connector (24-pin): Yes

BIOS
BIOS memory size: 256 Mbit
System Management BIOS (SMBIOS) version: 2.8
ACPI version: 6.4
BIOS type: AMI

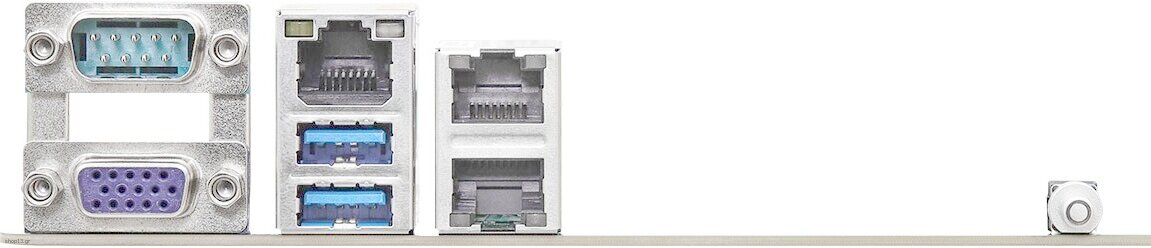

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1

Expansion slots
PCI Express OCuLink connectors (NVMe support): 3
Number of M.2 (M) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1


Warranty: warranty 36 months
