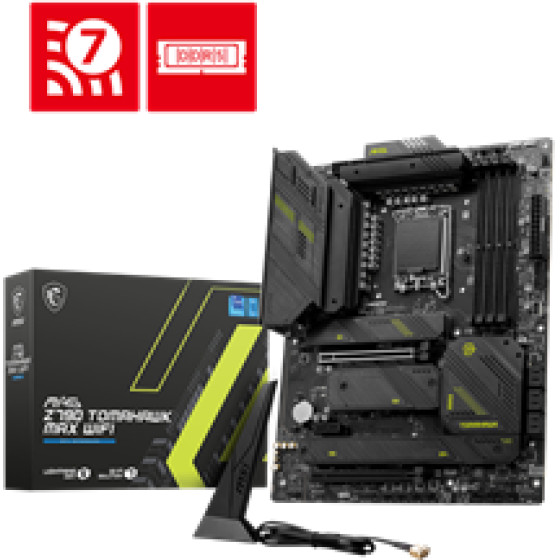

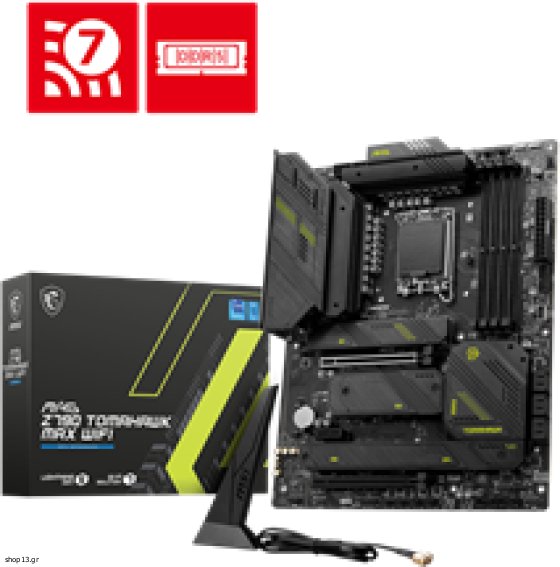

MSI Mb Mag Z790 Tomahawk Max WIFI, Socket Intel LGA1700 14th/13th/12th Gen CPU, Cs Intel Z790, 4 Dimm Sockets DDR5, DP/HDMI, 2.5 Gigabit LAN, Wifi 7.0, ATX, 3YW. - (911-7E25-003)

CPU Support: Socket Intel LGA1700 for 14th/13th/12th Generation Intel CPU Core Processors and Intel Pentium Gold,Celeron Processors.
Chipset: Intel Z790.
MB Size: ATX.
Memory Support: 4 DDR5 UDIMM Sockets for non-ECC un-buffered DDR5 RAM up to 7800+ MHz (OC). Max 192GB. Dual-Controller, Dual-Channel mode. Support Intel XMP3.0 OC.
VGA Out: 1x HDMI v2.1 max resolution 4K 60Hz, 1x Display Port v1.4 max resolution 8K 60Hz. Available only on processors featuring integrated GPU.
Slots: 2x PCI-E x16 slot, 1x PCI-E x1 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
Storage: 4x M.2. M.2_1 PCIe 5.0x 4, M.2_2/ M.2_3/ M.2_4 PCIe 4.0 x4. Supports RAID 0/1/5/10 for M.2 NVMe SSD.
8x SATA 6Gbps. Support RAID 0/1/5/10 for SATA storage devices.
NIC: Intel 2.5Gbps LAN
Wireless/ Bluetooth: WiFi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be. Bluetooth 5.4.
Audio: Realtek ALC4080 Codec. 7.1-Channel High Performance Audio.
I/O: 4x USB 2.0, 4x (+2 int.) USB 3.2 Gen1 Type A, 4x USB 3.2 Gen2 Type A, 1x (+1int) USB 3.2 Gen2 Type C, 1x USB 3.2 Gen 2x2 Type C, 1x LAN, 1x Display Port, 1x HDMI, Audio Connectors, 2 WiFi Antenna port.
Special: WiFi 7, Screwless M.2 Shield Frozr, Lightning Gen 5, Quadruple M.2 Connectors, Extended Heatsink Design, M.2 Shield FROZR, Core Boost, Latest DDR5 Memory, 2.5G Network Solution, Audio Boost 5
Εγγύηση: 3 χρόνια.
