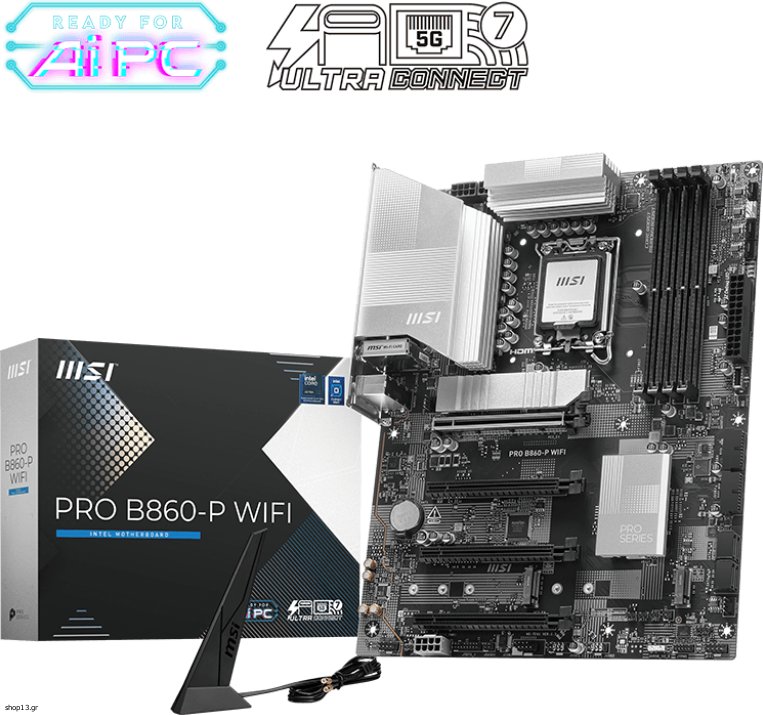

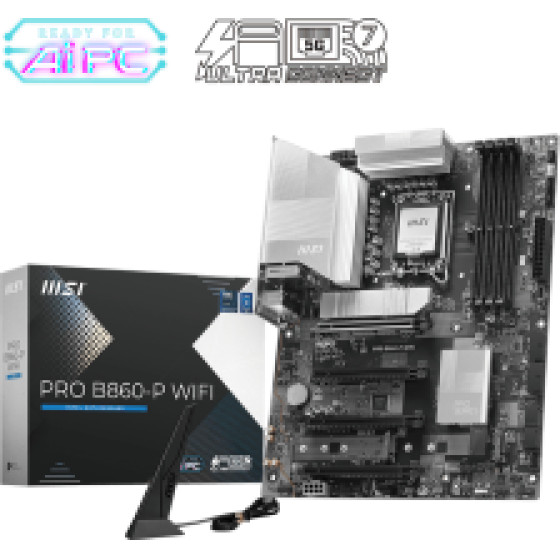

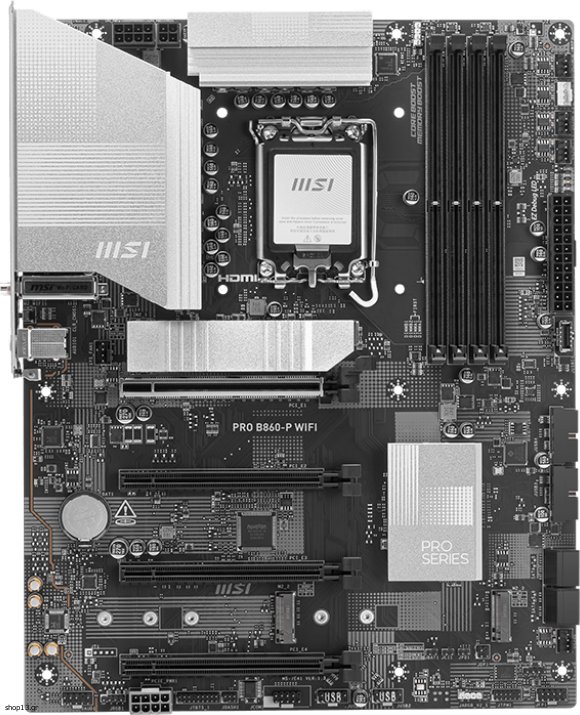

MSI Mb Pro B860-P WIFI, Socket LGA1851 CPU, Cs Intel B860, 4 Dimm Sockets DDR5 HDMI/ DP, PCI-E Gen 5.0, Lan 5G, ATX, 3YW. - (911-7E41-001)

CPU Support: LGA 1851, supports Intel Core Ultra Processors (Series 2).
Chipset: INTEL B860.
MB Size: ATX.
Memory Support: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 8800+ MT/s (OC) or up to 6400 MT/s JEDEC. Max 256GB. Support Dual-Controller Dual Channel mode. Support Intel XMP 3.0.
VGA Out: (Availiable only on processors featuring integrated GPU)

1x HDMI 2.1 maximum resolution of 4K 60Hz.
1x DisplayPort 1.4 maximum resolution of 4K 60Hz.
1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz.
Slots: 4x PCI-E (x16) slots:

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU).
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset).
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset).
Storage:

3x M.2:

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices.
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices.
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices.
4x SATA 6G.
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices.
THUNDERBOLT: 1x Thunderbolt4 port (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
LAN: Realtek 8126 5Gbps LAN.
Wireless:

Intel Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be.
Supports Bluetooth 5.4, MLO, 4KQAM.
Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio.

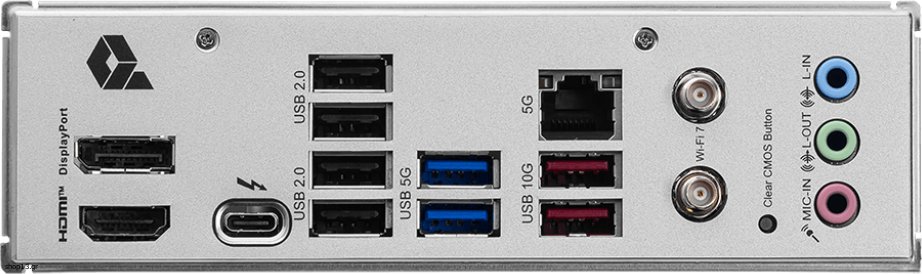

I/O:

4x USB 2.0 (Rear).
4x USB 2.0 (Front).
2x USB 5Gbps Type A (Rear).
4x USB 5Gbps Type A (Front).
2x USB 10Gbps Type A (Rear).
1x USB 10Gbps Type C (Front).
1x LAN 5Gb (Rear).
1x Thunderbolt 4 40Gbps Type-C (Rear).
1x DisplayPort (Rear).
1x HDMI (Rear).
Wi-Fi/ Bluetooth Antenna (Rear).
Audio Connectors (Rear).
Special Features: Wi-Fi 7, Thunderbolt 4 port, 5G Network Solution, EZ M.2 Shield Frozr II, EZ PCIe Clip II, Latest DDR5 Memory, Lightning Gen 5, Extended Heatsink Design, Pre-installed I/O Shielding, Frozr AI Cooling.
Εγγύηση: 3 έτη.
