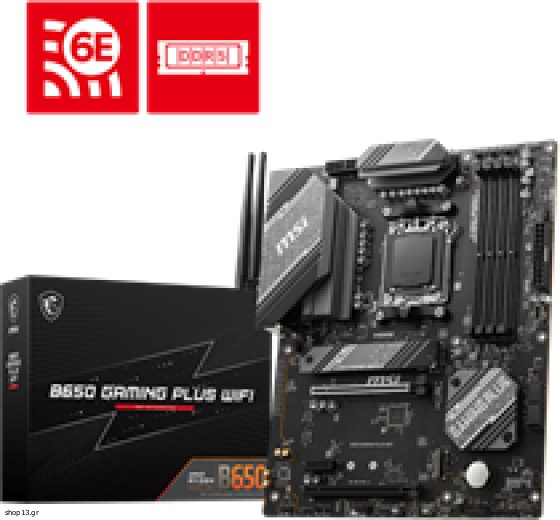

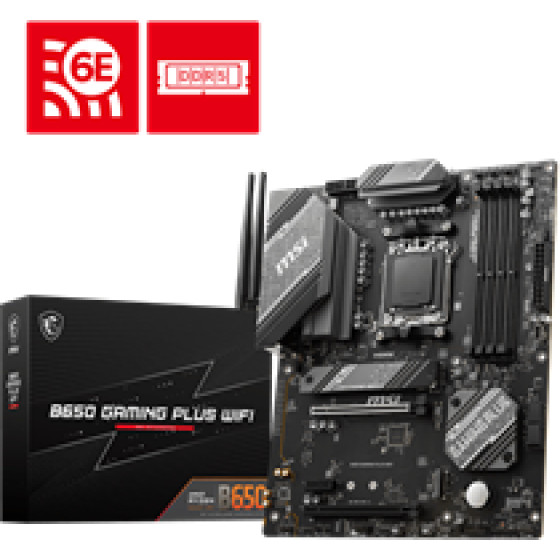

MSI Mb B650 Gaming Plus WIFI, Socket Amd AM5, Cs Amd B650, 4 Dimm Sockets DDR5, DP/HDMI, Lan 2.5G, WIFI, ATX, 3YW.

CPU Support: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset: AMD B650
MB Size: ATX.
Memory Support: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 7200+ MHz (OC). Max 192GB. Dual Channel mode. Support AMD EXPO.
VGA Out: 1x HDMI v2.1with HDR, maximum resolution of 4K 60Hz, 1x DisplayPort v1.4 maximum resolution of 4K 60Hz. Available only on processors featuring integrated GPU.
Slots: 2x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
Storage: 2x M.2, M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4x SATA 6Gbps. Supports RAID 0/1/10 for SATA storage devices. Supports RAID 0/1 for M.2 NVMe storage devices.
NIC: Realtek RTL8125BG 2.5Gbps LAN.
Wireless: AMD Wi-Fi 6E. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX. Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands, support 802.11 a/b/g/n/ac/ax, Bluetooth 5.3.
Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio.
I/O: 4 internal USB2.0, 4(+2 int.) USB3.2 Gen1 Type A, 3x USB3.2 Gen2 Type A, 1 internal USB3.2 Gen2 Type C, 1x USB3.2 Gen2x2 20Gbps Type C, 1x HDMI, 1x Display Port, 1x LAN, WiFi/ Bluetooth, Antenna, Audio Connectors.
Special: Latest DDR5 Memory, Lightning Gen 4 Solution, Extended Heatsink Design, M.2 Shield FROZR, Lightning USB 20G, Core Boost, Audio Boost, WiFi 6E, 2.5G Network Solution.
Εγγύηση: 3 χρόνια
