Περιγραφή
Design
Product colour: White
Form factor: Turret
International Protection (IP) code: IP65
Mounting type: Ceiling/Wall/Pole
Housing material: Plastic
Power
Power source type: DC
DC output voltage: 12
Security
Security algorithms: 64-bit WEP, WPA2, WPA, WPA3-SAE, WPA-PSK, WPA2-PSK, 128-bit WEP
Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 3 - 95%
Storage temperature (T-T): -40 - 70 °C
Management features
Reset button: Yes
Web browser: Yes
Weight & dimensions
Height: 203 mm
Width: 122 mm
Depth: 62 mm
Weight: 527 g
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), 802.11b, 802.11g
Wi-Fi: Yes
Bluetooth: No
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Performance

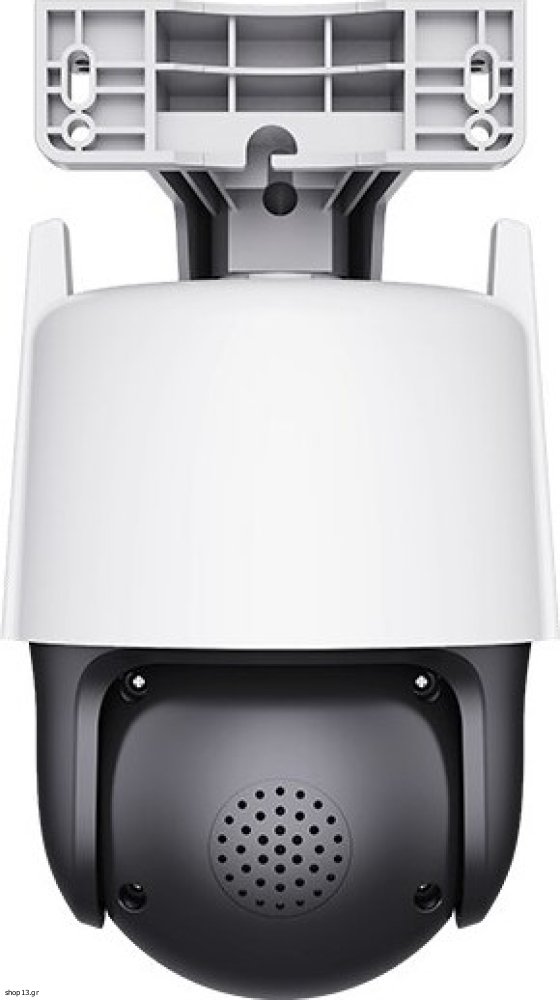

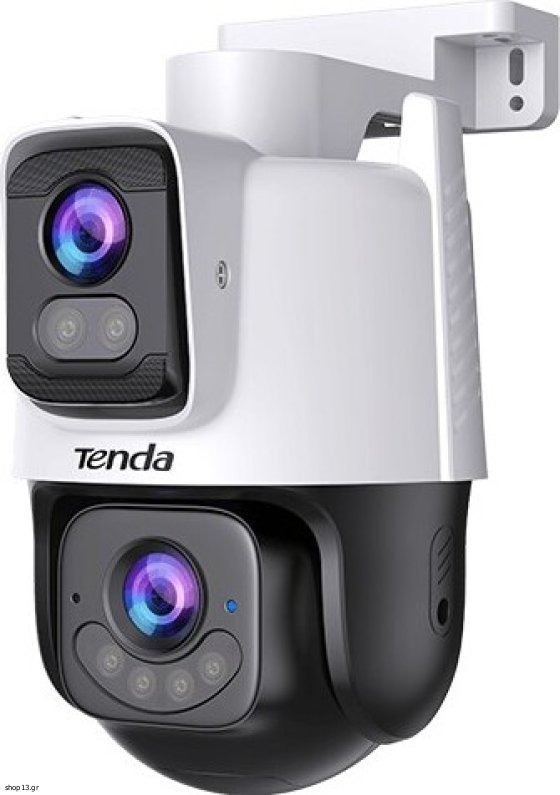

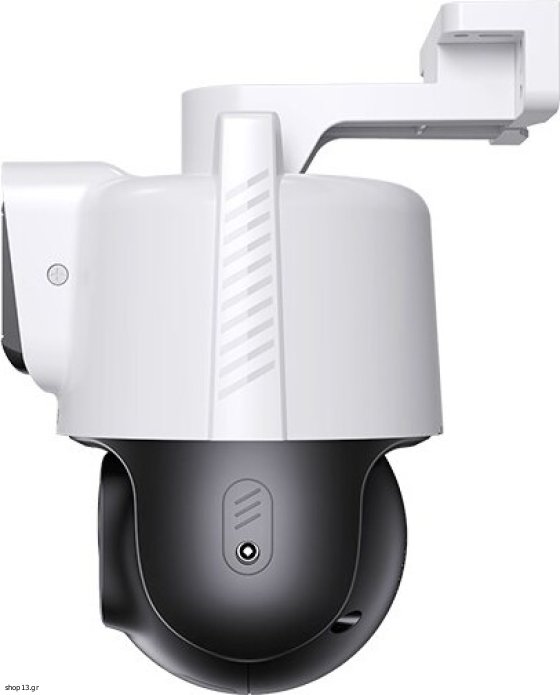

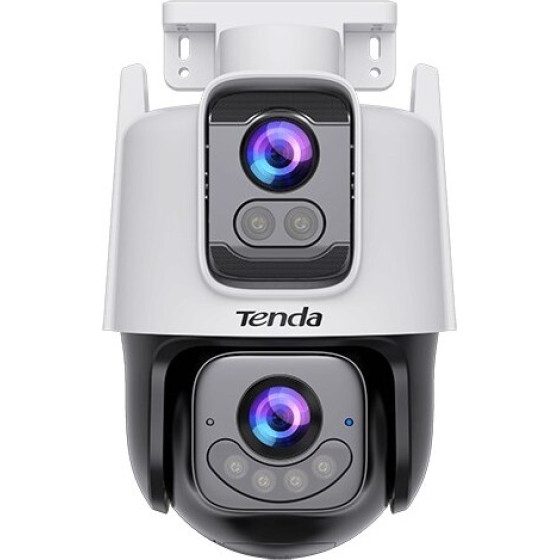

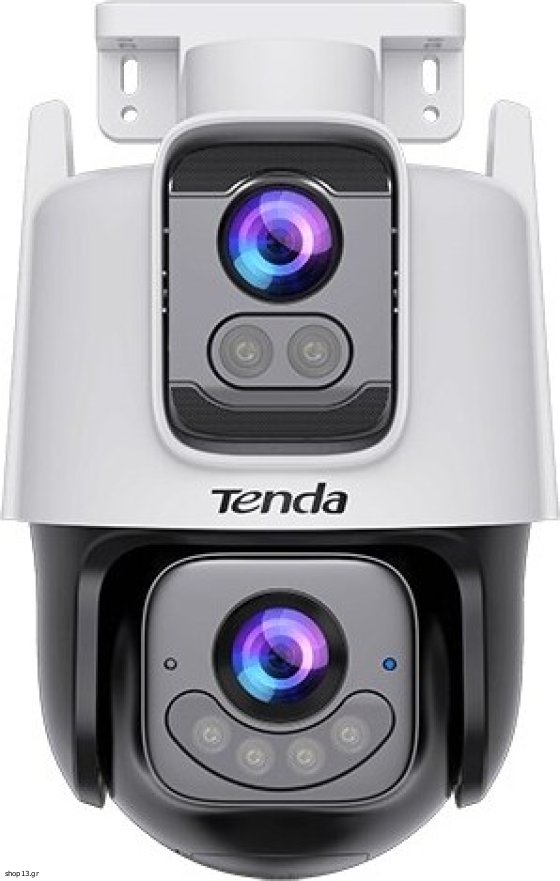

Type: IP security camera
Antenna type: Internal
Connectivity technology: Wired & Wireless
Placement supported: Outdoor
PTZ control: Yes
Packaging data
Package height: 193 mm
Package weight: 802 g
Package width: 240 mm
Package depth: 145 mm
Packaging content
Mounting kit: Yes
Number of cameras: 1
Mounting brackets included: Yes
Audio
Voice codecs: AAC, G.711a, G.711u
Built-in microphone: Yes
Built-in speaker(s): Yes
Storage
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 90°
Camera pan control: Yes
Pan range: 0 - 355°
Camera tilt control: Yes
Viewing angle, diagonal (6mm lens): 60.4°
Viewing angle, horizontal (4mm lens): 82.3°
Viewing angle, horizontal (6mm lens): 51.8°
Viewing angle, vertical (4mm lens): 44.7°
Viewing angle, vertical (6mm lens): 28.2°
Viewing angle, diagonal (4mm lens): 97.4°
Number of Privacy masking areas: 4
Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Video
Supported graphics resolutions: 2304 x 1296, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720)
Maximum resolution: 2304 x 1296 pixels
Total megapixels: 6 MP
Noise reduction: Yes
Back Light Compensation (BLC): Yes
Digital Wide Dynamic Range (DWDR): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video streaming: Yes
Noise reduction technology: 3D noise reduction
Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm
Night vision: Yes
Lens system
Fixed focal length: 4 mm
Maximum aperture number: 1.6
Number of lenses: 2
Sustainability
Compliance certificates: Federal Communications Commission (FCC), RCM, RoHS, CE, UKCA
Panoramic camera
Fixed focal length (panoramic camera): 6 mm
Warranty: warranty 36 months
