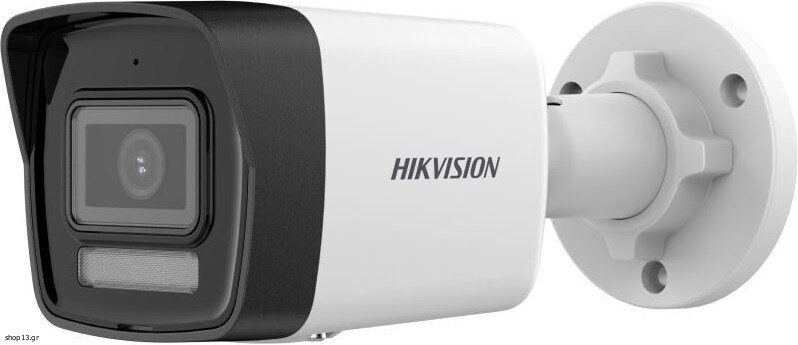

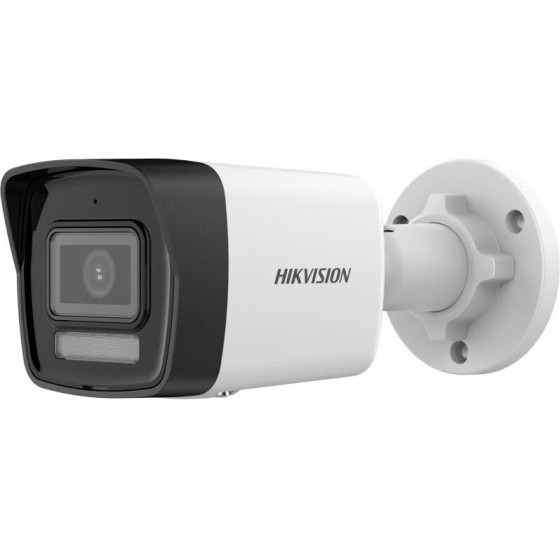

Hikvision IP CAMERA DS-2CD1041G2-LIU 2.8MM EN - (DS-2CD1041G2-LIU 2.8mm PL)

Technical details
Sustainability certificates: WEEE, RoHS

Design
International Protection (IP) code: IP67
Product colour: White
Housing material: Metal, Plastic

Power
PoE standard: IEEE 802.3af
Power over Ethernet (PoE): Yes
Power management: DC 12 V
Maximum power: 5 W
DC output current: 0.4 A

Security
Video motion detection: Yes
Password protection: Yes
Mirror: Yes
Heartbeat: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes

Weight & dimensions
Package weight: 481 g
Width: 216 mm
Package height: 69 mm
Package depth: 66 mm
Weight: 270 g
Depth: 121 mm
Height: 118 mm
Package width: 171 mm

Network
Ethernet LAN data rates: 10,100 Mbit/s
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Client interoperability: ONVIF (Profile S / (Profile T / (Profile G), ISAPI, SDK
Number of users: 32 user(s)

Performance
Connectivity technology: Wired
Wide Dynamic Range (WDR): 120 dB
Type: IP security camera
Day/night mode: Yes

Packaging content
Number of cameras: 1

Audio
Mono sound: Yes
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Noise filter: Y
Sample rate: 8 kHz / 16 kHz

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, diagonal: 114°
Lens viewing angle, vertical: 54°
Lens viewing angle, horizontal: 98°
Camera shutter speed: 1/3 - 1/100000 s
Tilt angle range: 0 - 90°
Pan range: 0 - 360°
Angle of rotation: 360°

Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Sensor type: CMOS

Video
Region of Interest (ROI) encoding: Yes
Maximum resolution: 2560 x 1410 pixels
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Bit rate: 32 Kbps - 8 Mbps
Video compression formats: H.265, H.264+, H.264, M-JPEG, H.265+

Night vision
Minimum illumination: 0.005 lx
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Observe distance (wide): 25 m
Detect distance (wide): 63 m
Number of lenses: 1
Identify distance (wide): 6 m
Recognize distance (wide): 12 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
