Περιγραφή
Processor
Processor socket: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Core(TM) i3, Intel(R) Pentium(R)
Supported processor sockets: LGA 1700
Features
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset: Intel B760
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Windows operating systems supported: Yes
Motherboard form factor: micro ATX
Cooling type: Passive
Memory
Supported memory clock speeds: 5400, 6000, 5600, 5200, 4800
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Maximum internal memory: 64 GB
Weight & dimensions
Depth: 208 mm
Width: 236 mm
Network
Yes (no WiFi card included): Yes (no WiFi card included)
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Internal I/O
Number of SATA III connectors: 4
Number of M.2 (E) slots: 1
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
Number of COM connectors: 1
Front panel audio connector: Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 1
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Packaging content
Set contents: WiFi antenna accessories
Cables included: SATA
Drivers included: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

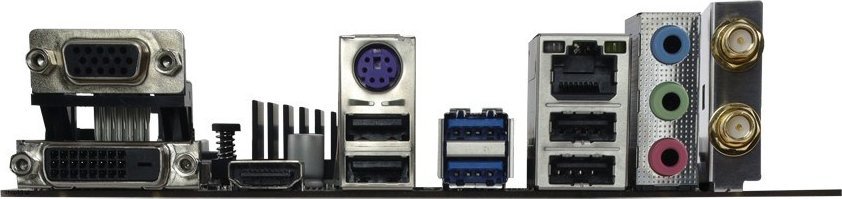

Rear panel I/O ports
Number of Wi-Fi antenna ports: 1
Audio ports quantity: 3
DVI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
Warranty: warranty 24 months
