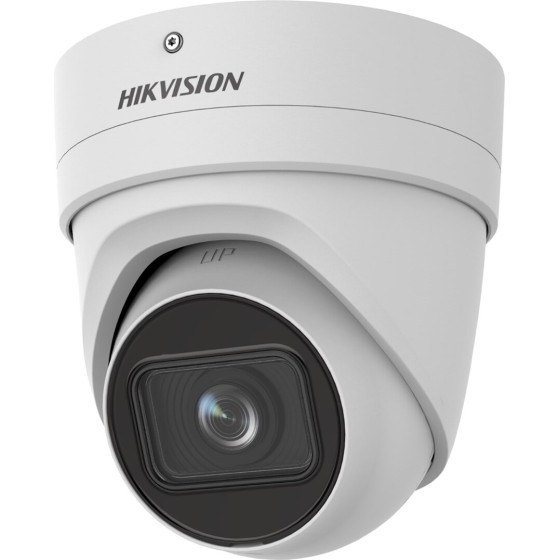

Hikvision DS-2CD2H46G2-IZS(2.8-12MM)(C) Industrial Camera In-Ear IP Security Camera Indoor & Outdoor 2688 x 1520 px Ceiling / Wall - (DS-2CD2H46G2-IZS(2.8-12mm)©)

Design
Product colour: White
Protection features: Water resistant, Dust resistant, Vandal proof
International Protection (IP) code: IP66
Mounting type: Ceiling/wall
IK code: IK10
Form factor: Dome

Power
Power consumption (Power over Ethernet (PoE)): 12.5 W
Power consumption (max): 11 W
DC output current: 0.92 A
DC output voltage: 12
Power source type: DC, PoE

Security
Password reset via email: Yes
Pixel counter: Yes
Heartbeat: Yes
Anti-flicker: Yes
Active tampering alarm: Yes
Mirror: Yes
Alert notification type: E-mail
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Scene change, Face detection
HTTPS encryption: Yes
IP address filtering: Yes
Security algorithms: TLS
Password protection: Yes
Audit log: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Weight & dimensions
Diameter: 13.6 cm
Weight: 1.07 kg
Length: 145.5 mm
Package weight: 1.52 kg
Package width: 170 mm
Package height: 205 mm
Package depth: 170 mm

Network
Bluetooth: No
Networking standards: IEEE 802.3af
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)

Performance
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Alarm input/output: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Languages support: Multi
Placement supported: Indoor & outdoor
Day/night mode: Yes

Packaging content
Number of cameras: 1

Audio
Sample rates: 8 - 48 kHz
Audio output channels: 1 channels
Signal-to-Noise Ratio (SNR): 52 dB
Voice codecs: PCM, G.726, G.711alaw, G.722.1, AAC, G.711ulaw, MP2L2
Audio input channels: 1 channels

Storage
Maximum memory card size: 256 GB
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 131°
Lens viewing angle, horizontal: 108°
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Pan range: 0 - 355°
Camera pan control: Yes
Camera tilt control: Yes

Image sensor
Progressive scan: Yes
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Maximum resolution: 2688 x 1520 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520, 640 x 360
Bit rate: 32 Kbps - 8 Mbps
Back Light Compensation (BLC): Yes
Video compression formats: H.265, M-JPEG, H.264+, H.265+, H.264
Highlight Compensation (HLC): Yes
Gain control type: Auto
Frame rate: 30 fps
Noise reduction: Yes
Image quality adjustment: Contrast, Sharpness, Saturation, Brightness
Total megapixels: 4 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Video streaming: Yes
Noise reduction technology: 3D noise reduction

Night vision
LED type: IR
Night vision distance: 40 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Recognize distance (wide): 12.8 m
Observe distance (wide): 25.4 m
Focal length range: 2.8 - 12 mm
Observe distance (tele): 75.4 m
Identify distance (wide): 6.4 m
Detect distance (wide): 64 m
Maximum aperture number: 1.4
Number of lenses: 1
Recognize distance (tele): 38 m
Identify distance (tele): 19 m
Detect distance (tele): 190 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
