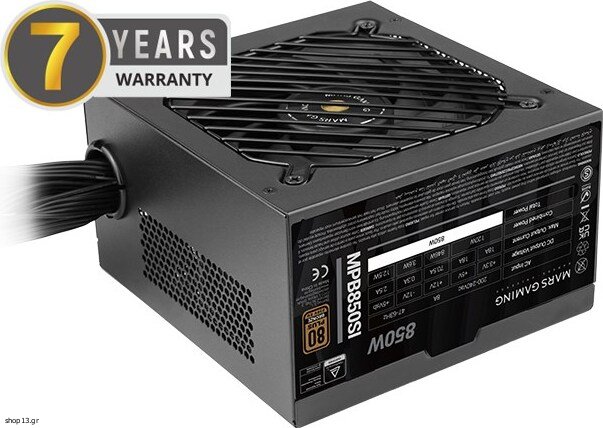

TACENS Mars Gaming MPB850SI power supply unit 850 W 24-pin ATX ATX Black - (TACMARS-MPB850SI)

Design
Product colour: Black

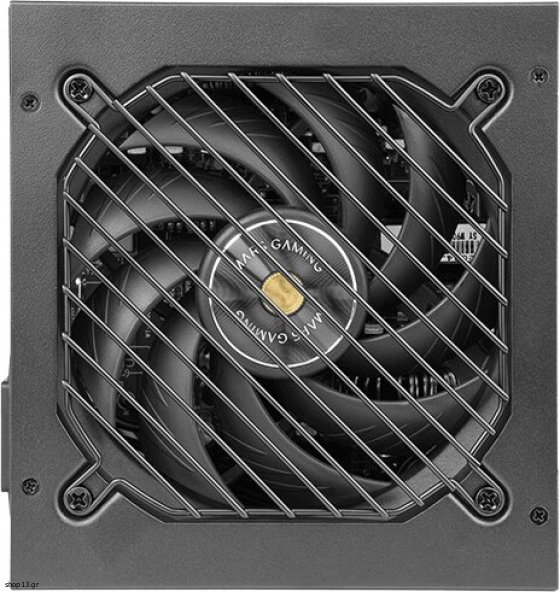

Fan location: Top
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Cooling type: Active
On/off switch: Yes

Power
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Power protection features: Over power, Overcharge, Short circuit, Over voltage, Under voltage
AC input frequency: 47 - 63 Hz
Combined power (+3.3V): 120 W
Max output current (+3.3V): 18 A
Max output current (-12V): 0.3 A
AC input voltage: 200 - 240 V
Max output current (+5Vsb): 2.5 A
Combined power (+12V): 846 W
Combined power (+5Vsb): 12.5 W
Input current: 8 A
Max output current (+5V): 18 A
Combined power (-12V): 3.6 W
Total power: 850 W
Max output current (+12V): 70.5 A
Combined power (+5V): 120 W

Weight & dimensions
Width: 150 mm
Depth: 145 mm
Weight: 1.6 kg
Height: 86 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Bronze

Packaging data
Package height: 205 mm
Package depth: 125 mm
Package type: Box
Package width: 238 mm

Certificates
Compliance certificates: WEEE, CE

Ports & interfaces
PCI Express power connectors (6+2 pin): 4
Motherboard power connector: 24-pin ATX
Cabling type: Non-Modular
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
EPS power connector (4+4 pin): Yes
ATX Power connector (24-pin): Yes


Warranty: warranty 24 months
