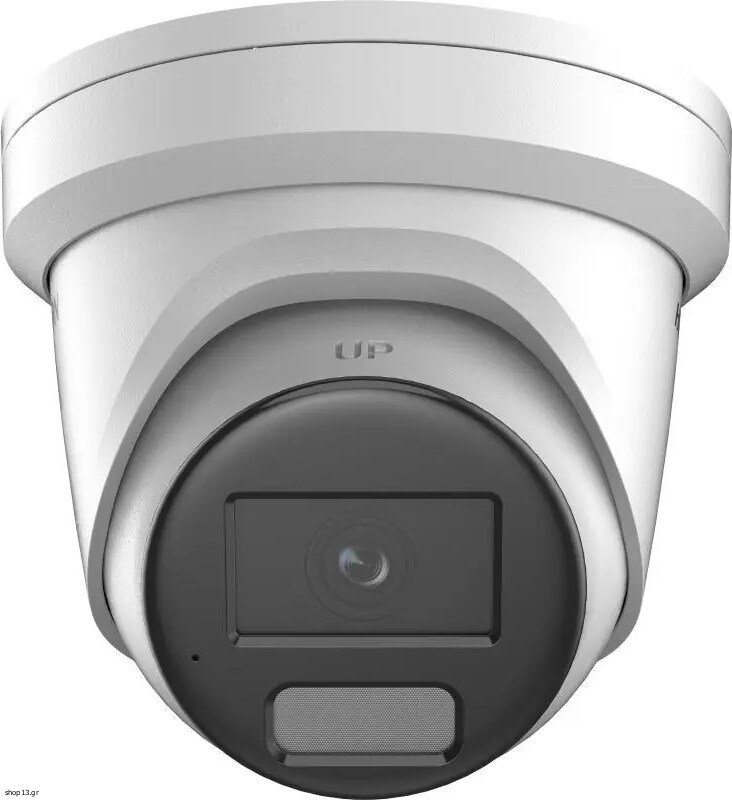

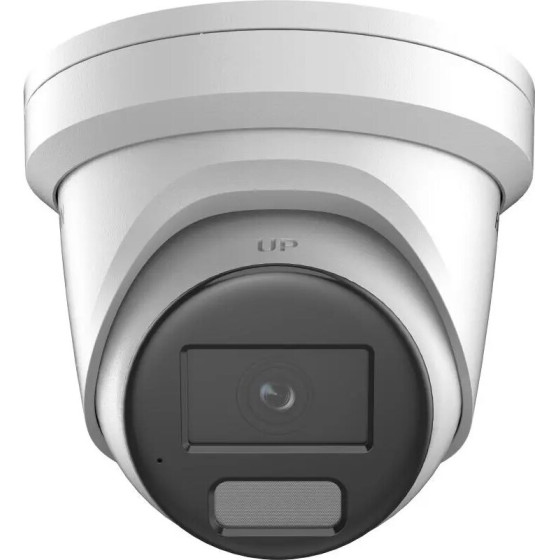

Hikvision DS-2CD2347G2H-LIU(2.8mm)(eF)(O-STD) Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling - (DS-2CD2347G2H-LIU)

Technical details
Iris: Yes
Lens mount interface: M16

Design
Mounting type: Ceiling
Form factor: Turret
International Protection (IP) code: IP67
Housing material: Metal
Protection features: Water resistant, Dust resistant
Product colour: White

Power
Power consumption (Power over Ethernet (PoE)): 6 W
DC output voltage: 12
DC output current: 0.41 A
Power source type: DC, PoE
Power consumption (max): 5 W

Security
HTTPS encryption: Yes
Digital watermark: Yes
Heartbeat: Yes
Privacy protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
Mirror: Yes
IP address filtering: Yes
Password protection: Yes
Digest authentication: Yes
Human and vehicle targets classification: Yes
Password reset via email: Yes
Pixel counter: Yes
Security algorithms: EAP-TLS, EAP-MD5, EAP-LEAP
Automatic Network Replenishment (ANR): Yes
Audit log: Yes
Network access storage (NAS): Yes

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%

Management features
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Reset button: Yes
Web-based management: Yes

Weight & dimensions
Diameter: 13.8 cm
Height: 115.4 mm
Weight: 770 g

Network
Live view: Yes
Number of users: 32 user(s)
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Number of simultaneous live view channels: 6 channels
Quality of Service (QoS) support: Yes
User access level: Administrator, Operator, User
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Bluetooth: No

Performance
Number of languages: 33
Dynamic range: 130 dB
Languages support: Multi
Placement supported: Indoor & outdoor
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Built-in light: Yes
Connectivity technology: Wired

Packaging data
Package weight: 1.04 kg
Package width: 170 mm
Package height: 160 mm
Package depth: 170 mm

Packaging content
Number of cameras: 1

Audio
Audio formats supported: PCM, G.711, MP3, G.726, MP2L2, G.722.1, AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Built-in microphone: Yes

Storage
Maximum memory card size: 512 GB
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Angle of rotation: 360°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, vertical: 57.6°
Lens viewing angle, horizontal: 111.1°
Lens viewing angle, diagonal: 138.5°
Minimum illumination: 0 lx
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 4

Image sensor
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1

Video
Noise reduction: Yes
Frame rate: 30 fps
Image quality adjustment: Contrast, Saturation, Sharpness, Brightness
Video compression formats: H.264, M-JPEG, H.265+, H.264+, H.265
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Region of Interest (ROI) encoding: Yes
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video streaming: Yes
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2688 x 1520, 640 x 360, 1280 x 720 (HD 720)
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps - 8 Mbps
Maximum resolution: 2688 x 1520 pixels

Night vision
Night vision: Yes
Infra-red wavelength: 850 nm
LED type: IR
Night vision distance: 40 m

Lens system
Fixed focal length: 2.8 mm
Recognize distance: 12 m
Number of lenses: 1
Maximum aperture number: 1
Identify distance: 6 m
Observe distance: 24 m
Detect distance: 61 m
Fixed focus: Yes

Sustainability
Sustainability compliance: Yes
Compliance certificates: KC, RoHS, CE, CB


Warranty: Manufacturer warranty 24 months
