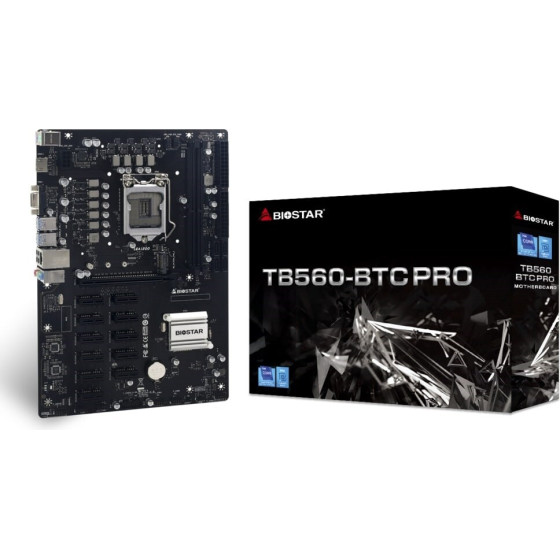

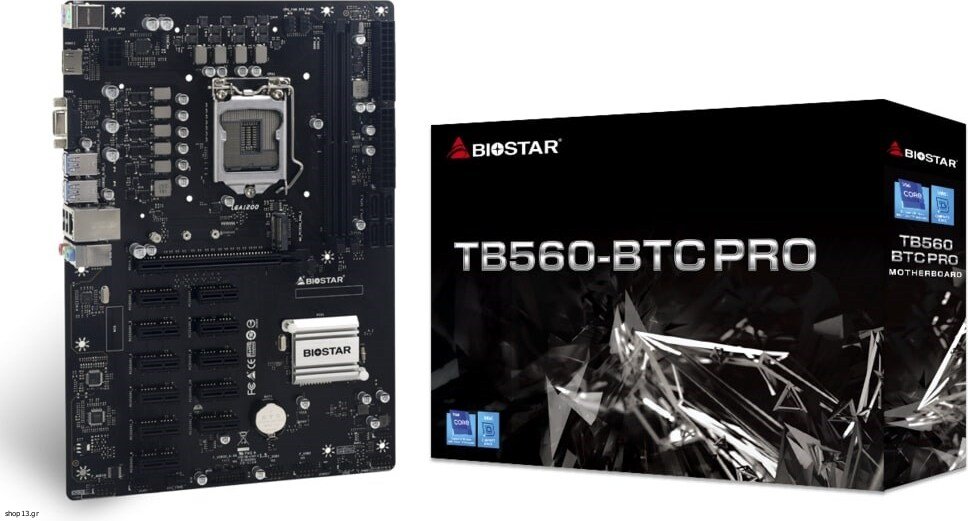

Biostar Motherboard - (TB560-Btc PRO)

Processor
Processor socket: LGA 1200
Processor manufacturer: Intel

Graphics
HDCP: Yes
DirectX version: 12.0

Features
Motherboard chipset: Intel B560
Motherboard chipset family: Intel
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio chip: Realtek ALC897

Memory
ECC ?ompatibility: Non-ECC
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 2666, 2133, 1866, 2933, 2400, 2800
Maximum internal memory: 64 GB
Memory channels: Dual-channel
Number of memory slots: 2
Memory slots type: DIMM

Weight & dimensions
Depth: 210 mm
Width: 304.8 mm

Network
LAN controller: Realtek RTL8111E
Ethernet LAN: Yes

Internal I/O
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel connector: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
12V power connector: Yes
Audio connector: Yes

BIOS
Clear CMOS jumper: Yes

Packaging content
Cables included: SATA

Storage controllers
Number of M.2 (M) slots: 1
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
Number of SATA III connectors: 4
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0

Rear panel I/O ports
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Number of audio jack connectors: 3

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1


Warranty: warranty 24 months
