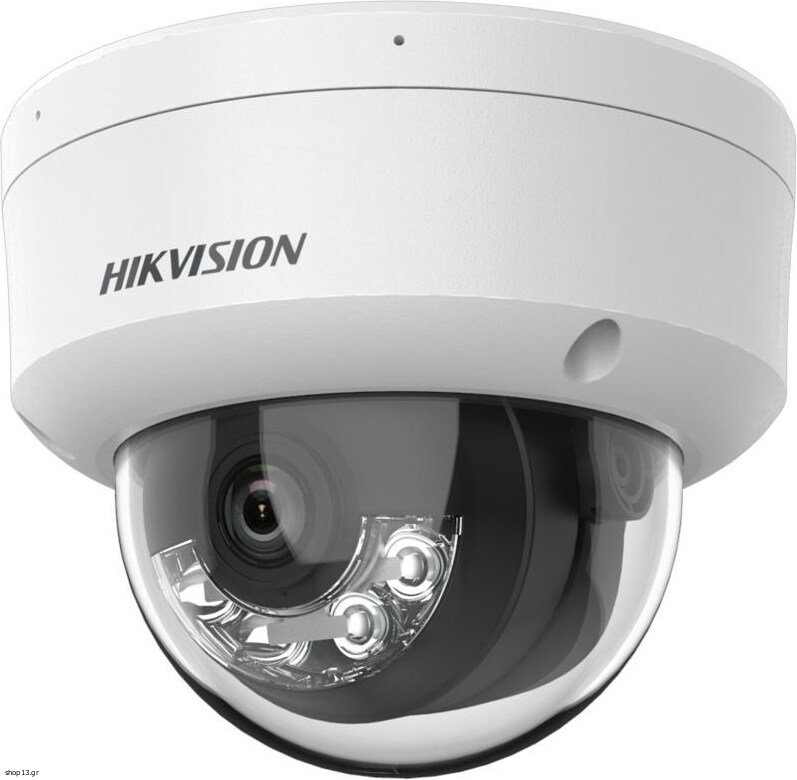

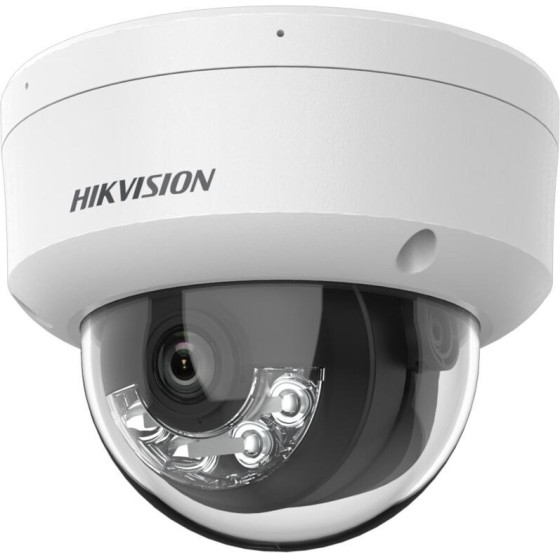

Hikvision Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall - (DS-2CD2123G2-LIS2U(2.8mm))

Design
Form factor: Dome
Product colour: White
IK code: IK10
International Protection (IP) code: IP67
Protection features: Vandal proof, Dust resistant, Water resistant
Housing material: Aluminium
Mounting type: Ceiling/wall

Power
Power consumption (max): 7.2 W
Power source type: DC, PoE
DC output current: 0.6 A
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 8.5 W

Security
Security algorithms: TLS
Audit log: Yes
Alarm input channels: 1
IP address filtering: Yes
Alarm output channels: 1
HTTPS encryption: Yes
Heartbeat: Yes
Password reset via email: Yes
Active tampering alarm: Yes
Password protection: Yes
Video motion detection: Yes
Mirror: Yes
Digest authentication: Yes
Pixel counter: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Management features
Reset button: Yes
Web browser: Yes
Behavior analysis: Line crossing detection

Weight & dimensions
Weight: 600 g
Height: 97.6 mm
Diameter: 12.2 cm

Network
Networking standards: IEEE 802.3af
Bluetooth: No
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Live view: Yes

Performance
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Dynamic range: 120 dB
Alarm input/output: Yes
Languages support: Multi
Placement supported: Indoor & outdoor

Packaging data
Package height: 141 mm
Package width: 150 mm
Package depth: 150 mm
Package weight: 800 g

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Audio output channels: 1.0 channels
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Audio input channels: 1.0 channels
Sample rates: 8 - 48 kHz
Bit rate range: 32 - 320 Kbit/s

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 8
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 355°
Minimum illumination: 0 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 112°
Lens viewing angle, diagonal: 132°
Lens viewing angle, vertical: 61°

Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1

Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 640 x 480 (VGA), 640 x 360
Maximum resolution: 1920 x 1080 pixels
Bit rate: 32 Kbps - 8 Mbps
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video compression formats: H.265, H.264+, H.265+, H.264
Noise reduction: Yes
Region of Interest (ROI) encoding: Yes
Frame rate: 30 fps
Total megapixels: 2 MP
Highlight Compensation (HLC): Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Video streaming: Yes

Night vision
Night vision distance: 30 m
LED type: IR/White
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Identify distance: 4 m
Recognize distance: 8 m
Fixed focal length: 2.8 mm
Observe distance: 16 m
Detect distance: 42 m
Number of lenses: 1


Warranty: Manufacturer warranty 24 months
