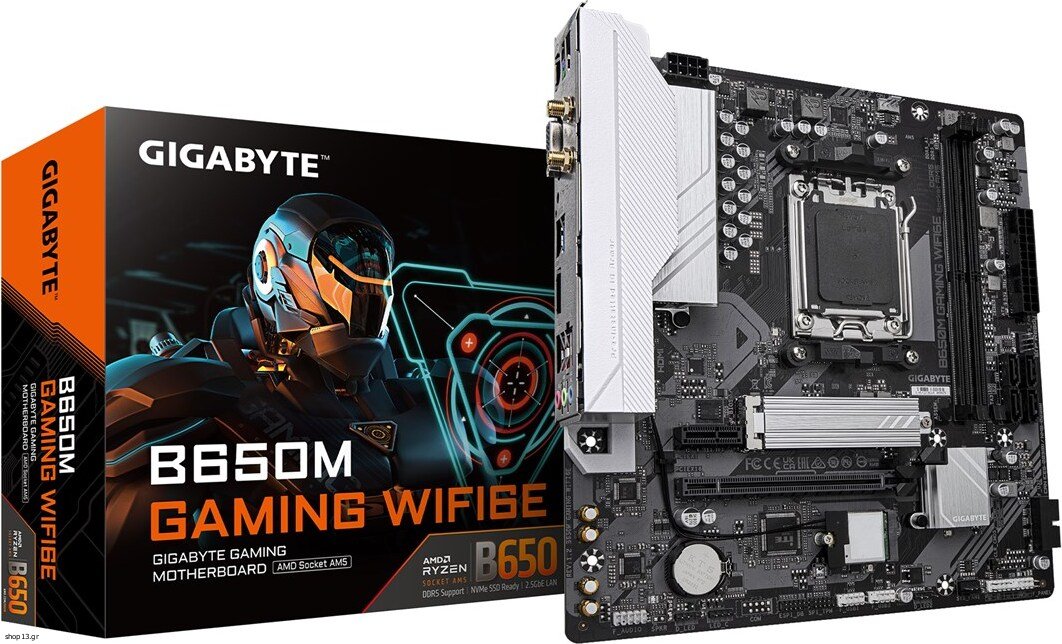

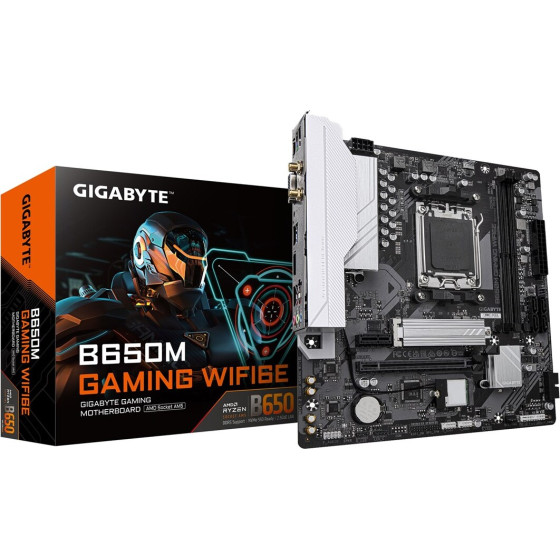

Gigabyte Motherboard - Amd Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, Up To 6400MHz DDR5 (OC), 1xPcie 4.0 M.2, 2.5 Gbe LAN, Wifi 6E, Usb 3.2 Gen 1 - (B650M Gaming WIFI6E)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD

Graphics
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels

Features
PC health monitoring: Fan, Temperature, Voltage
Audio output channels: 7.1 channels
Motherboard chipset: AMD B650
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Power source type: ATX
Motherboard chipset family: AMD

Memory
Maximum internal memory: 256 GB
Supported memory clock speeds: 5200, 6400, 6000, 4400 MHz, 6200, 5600, 4800
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 6400 MHz
Memory channels: Dual-channel
Memory slots type: DIMM
ECC ?ompatibility: Non-ECC
Number of memory slots: 4
Maximum internal memory per slot: 64 GB

Weight & dimensions
Width: 240 mm
Depth: 225 mm
Height: 35 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8852CE
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
TPM connector: Yes
Number of SATA III connectors: 4
Front panel connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3

BIOS
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes

Packaging data
Package weight: 1.21 kg
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm

Packaging content
Screws included: Yes
Batteries included: Yes
Antenna included: Yes

Storage controllers
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 5
Number of HDDs supported: 4

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
Microphone in: Yes
WiFi-AP antenna jack: 2
PS/2 ports quantity: 1
Line-in: Yes
Headphone outputs: 1
HDMI version: 2.1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2580
1st M.2 highest PCI Express generation: 4.0

Battery
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Battery type: CR2032

Other features
Weight: 720 g

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
