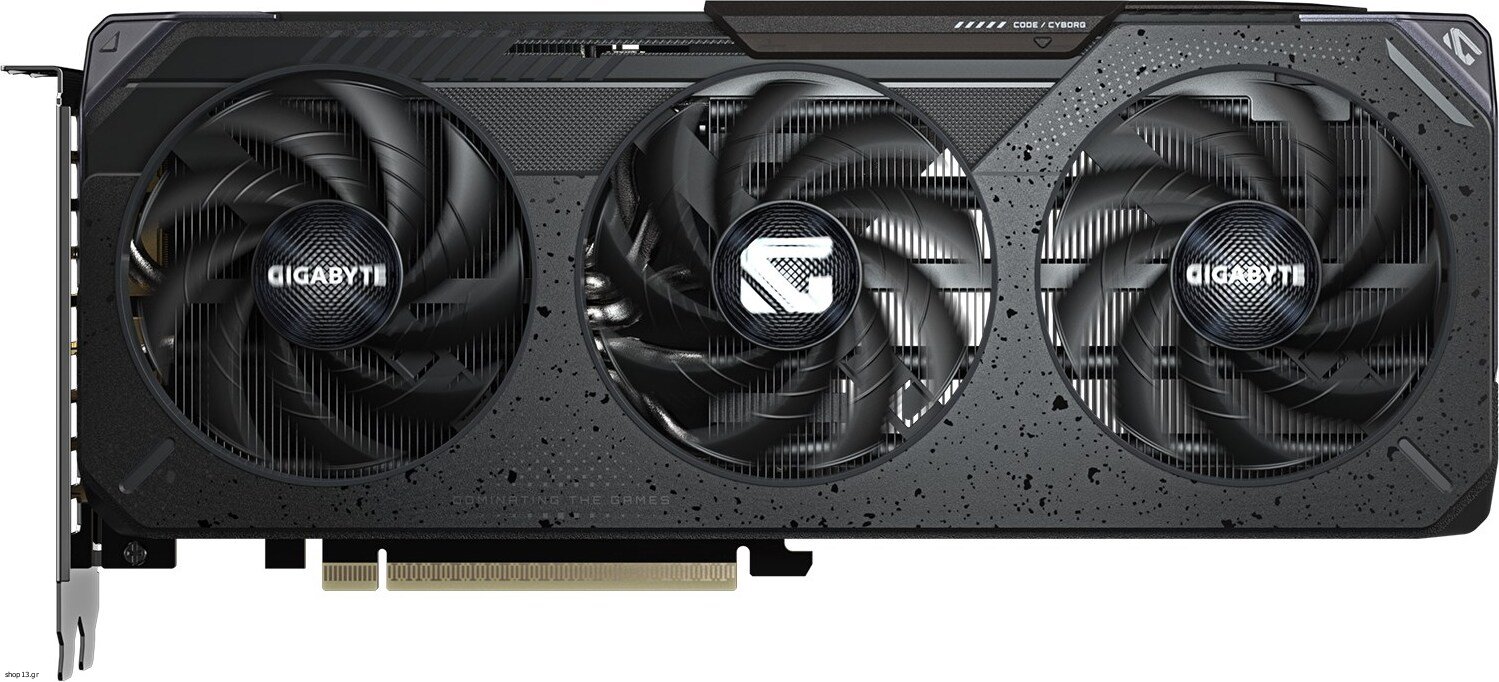

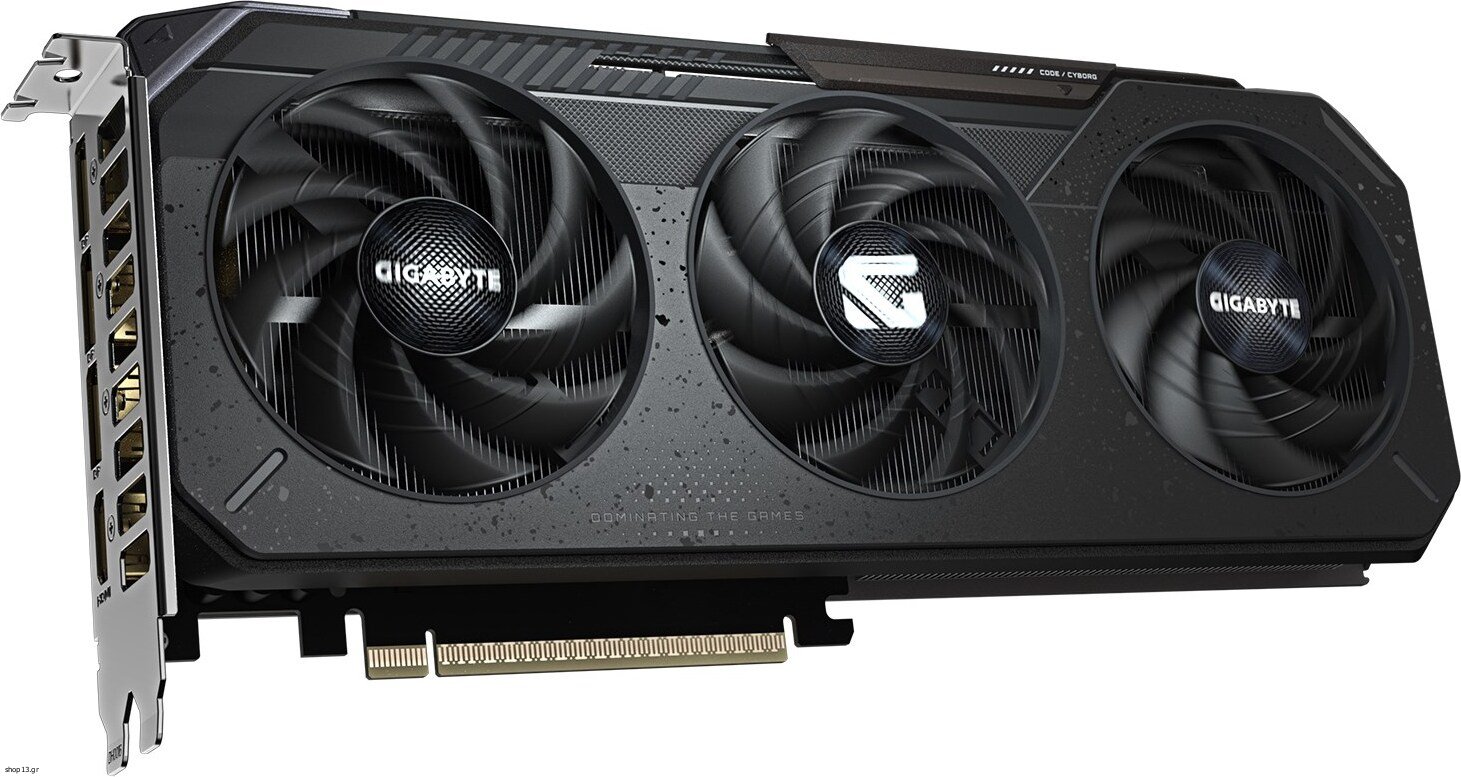

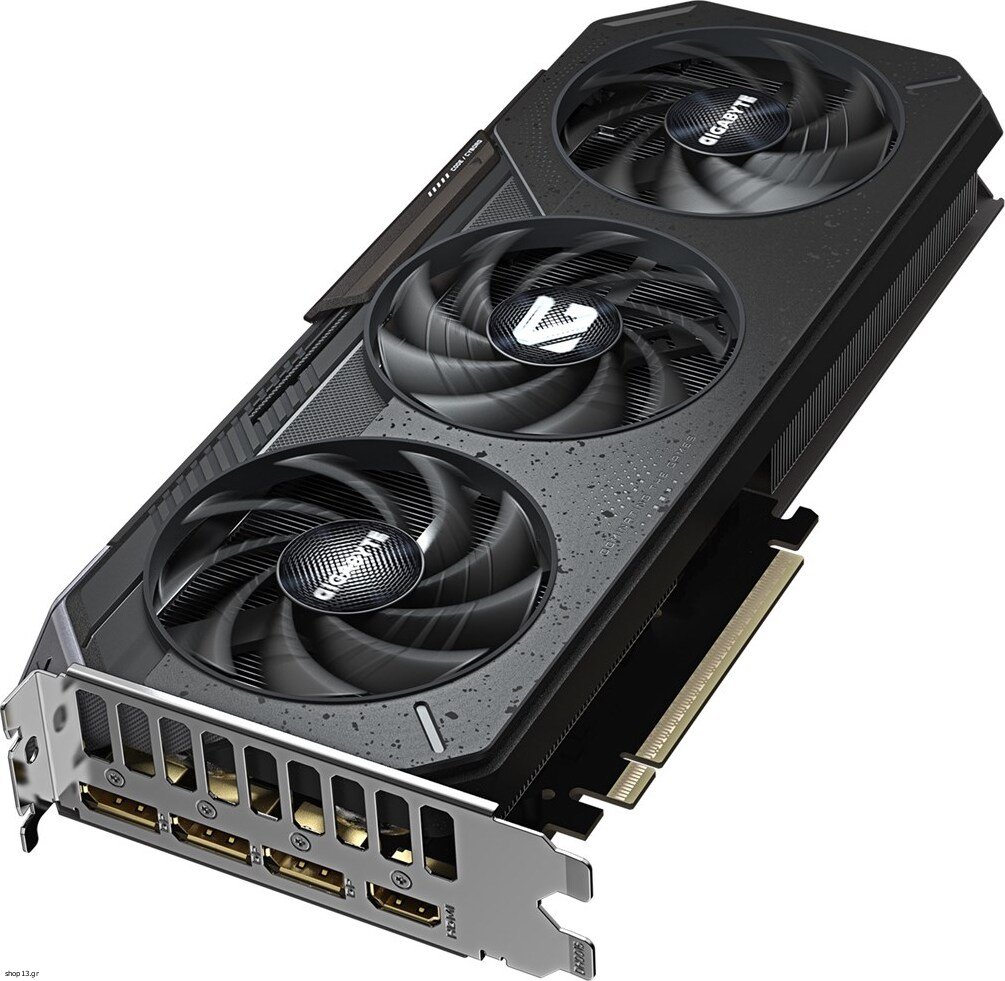

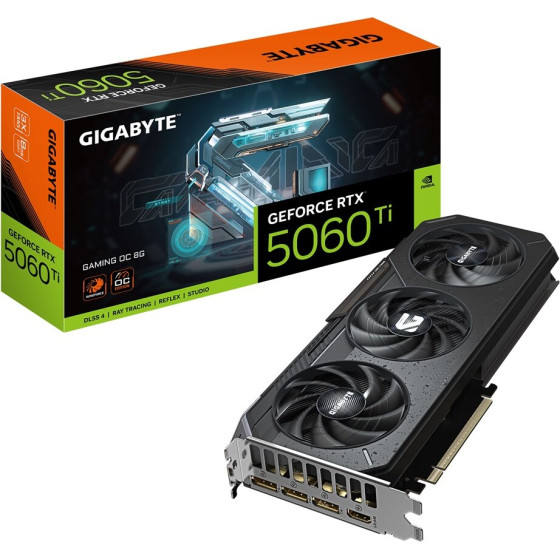

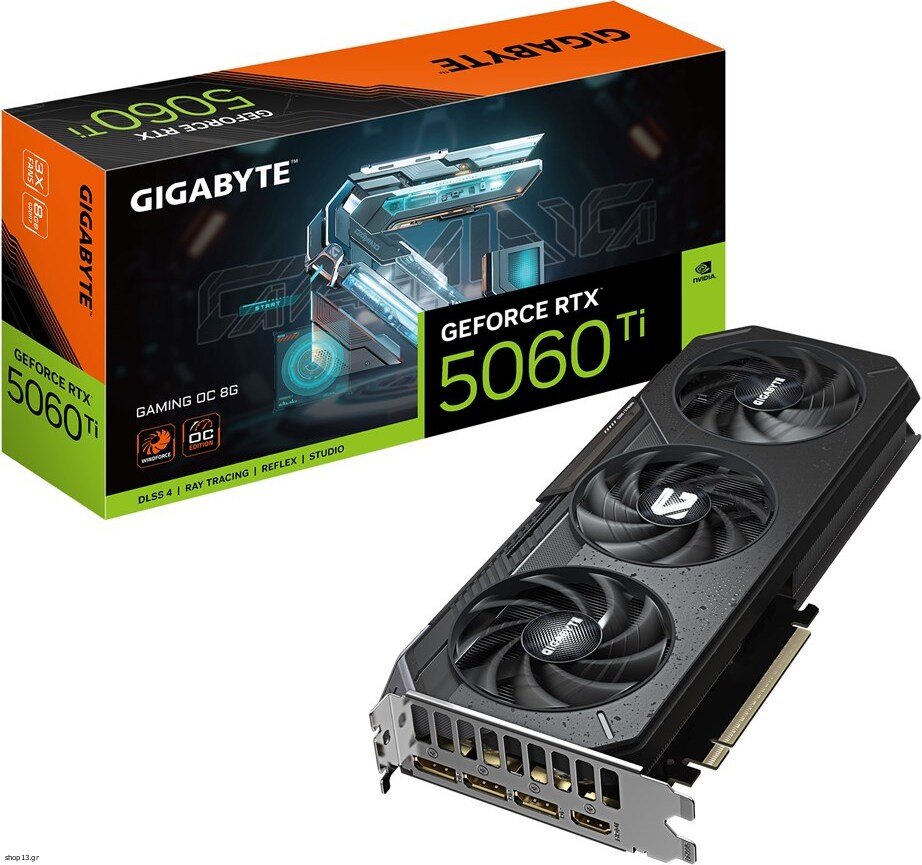

Gigabyte GeForce RTX 5060 Ti GAMING OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2647MHz Core Clock, 3 x DisplayPort, 1 x HDMI, - (GV-N506TGAMING OC-8GD)

Processor
CUDA cores: 4608
CUDA: Yes
Parallel processing technology support: Not supported
Graphics processor: GeForce RTX 5060 Ti
Graphics processor family: NVIDIA
Maximum resolution: 7680 x 4320 pixels
Processor frequency: 2647 MHz
Maximum displays per videocard: 4

Memory
Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR7
Memory clock speed: 28000 MHz
Data transfer rate: 28 Gbit/s
Memory bus: 128 bit

Design
Form factor: Full-Height/Full-Length (FH/FL)
Number of slots: 2
Cooling type: Active
Product colour: Black
Cooling technology: GIGABYTE WINDFORCE 3X
Number of fans: 3 fan(s)

Power
Supplementary power connectors: 1x 8-pin
Minimum system power supply: 650 W
Thermal Design Power (TDP): 135 W

Weight & dimensions
Weight: 800 g
Length: 281 mm
Depth: 40 mm
Height: 119 mm

Performance
Overclocked (OC) edition: Yes
Warranty period: 3 year(s)
NVIDIA G-SYNC: Yes
DirectX version: 12.0
TV tuner integrated: No
OpenGL version: 4.6
Dual Link DVI: No

Packaging data
Package type: Box
Package weight: 1.35 kg
Package depth: 354 mm
Package height: 75 mm
Package width: 182.5 mm

Ports & interfaces
DisplayPorts quantity: 3
DisplayPort version: 2.1b
Interface type: PCI Express x8 5.0
HDMI ports quantity: 1
HDMI version: 2.1b

Logistics data
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
