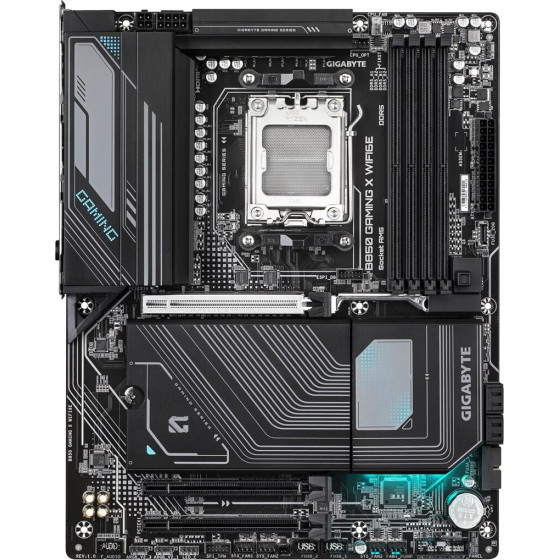

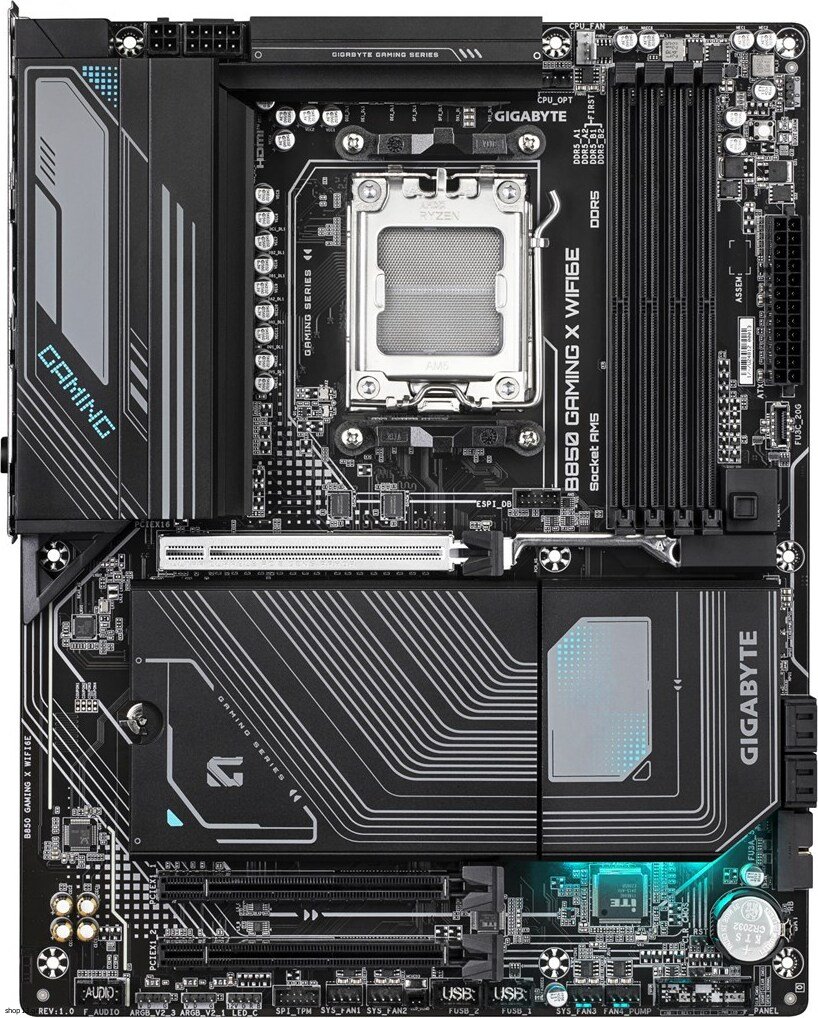

Gigabyte Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2x2 - (B850 GAMING X WIFI6E)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
DirectX version: 12.0
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels

Features
Product colour: Bronze
Motherboard chipset: AMD B850
PC health monitoring: Water cooling, Fan, Temperature, Voltage
Motherboard form factor: ATX
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset family: AMD

Memory
Supported memory clock speeds: 5200, 4400, 7950, 7900, 7600 MHz, 7000, 8200, 6600, 8000, 6000, 6800, 6200, 7400, 5800, 7800, 6400, 5600, 7200, 4800
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Maximum internal memory per slot: 64 GB

Weight & dimensions
Height: 35 mm
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
WLAN controller model: Realtek RTL8111H
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
CPU fan connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Serial port headers: 1
USB 2.0 connectors: 2
Number of SATA III connectors: 4
TPM connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Number of water pump connectors: 2

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Clear CMOS button: Yes
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package height: 80 mm
Package depth: 270 mm
Package weight: 2.38 kg
Package width: 335 mm

Packaging content
Batteries included: Yes
Screws included: Yes
Antenna included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 1, 0, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7

Rear panel I/O ports
Headphone outputs: 1
HDMI ports quantity: 1
DisplayPort version: 2.1
HDMI version: 2.1
WiFi-AP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 3

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 25110
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0

Battery
Battery type: CR2032
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g

Other features
Weight: 2.1 kg

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.


Warranty: warranty 36 months
