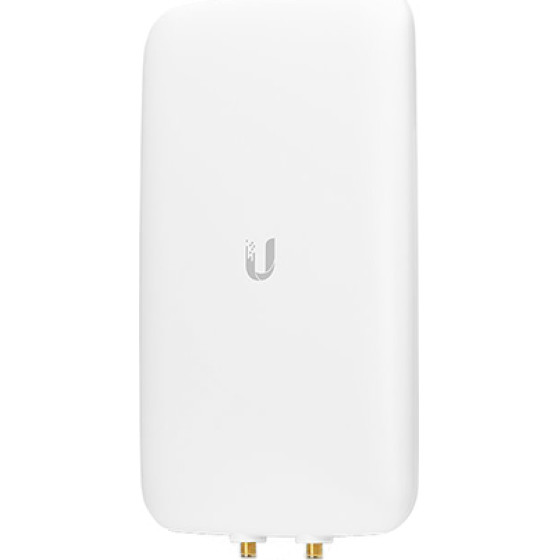

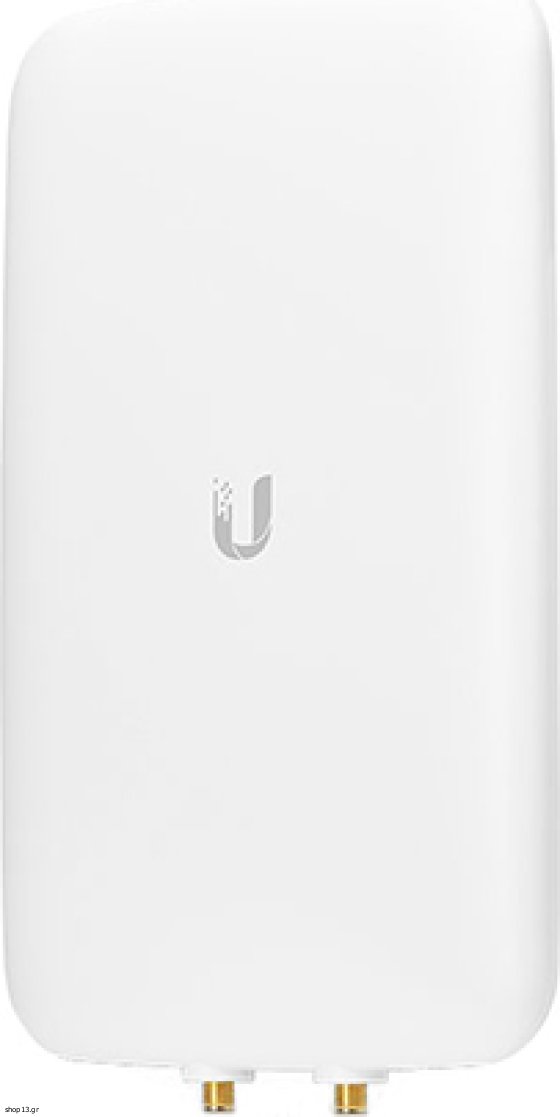

Ubiquiti - (UMA-D)

Description
The Ubiquiti UniFi Directional Dual-Band Antenna UMA-D is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customised pattern shaping.
It features a high efficiency directional radiation pattern with dual polarity and is optimised for 802.11ac.
Ubiquiti UniFi UMA-D Key Features Can be used indoors or outdoors Dual-Band, Dual-Polarity Optimized for 802.11ac High Efficiency Directional Radiation Pattern Three-Axis Ball Joint Mount for Precise Aiming Compatible with the UAP-AC-M.
Specifications


Dimensions
201.3 x 128.0 x 32.5 mm


Weight

-(with Mount)

-(without Mount)
-480 g (16.93 oz)

-400 g (14.11 oz)


Enclosure
Outdoor UV Stabilized Plastic


RF Connections
(2) RP-SMA


Supported Frequency Range
2.4 - 2.5 GHz, 5.1 - 5.9 GHz


HPOL Beamwidth

-2.4 GHz

-5 GHz
-90°

-45°


VPOL Beamwidth

-2.4 GHz

-5 GHz
-90°

-45°


Elevation Beamwidth

-2.4 GHz

-5 GHz
-90°

-45°


Maximum VSWR
2.5:1


Polarization
Dual-Linear


Cross-Pol Isolation

-2.4 GHz

-5 GHz
-25 dB

-30 dB


Antenna Gain

-2.4 GHz

-5 GHz
-10 dBi

-15 dBi


Mounting
Wall/Pole (Kits Included)
