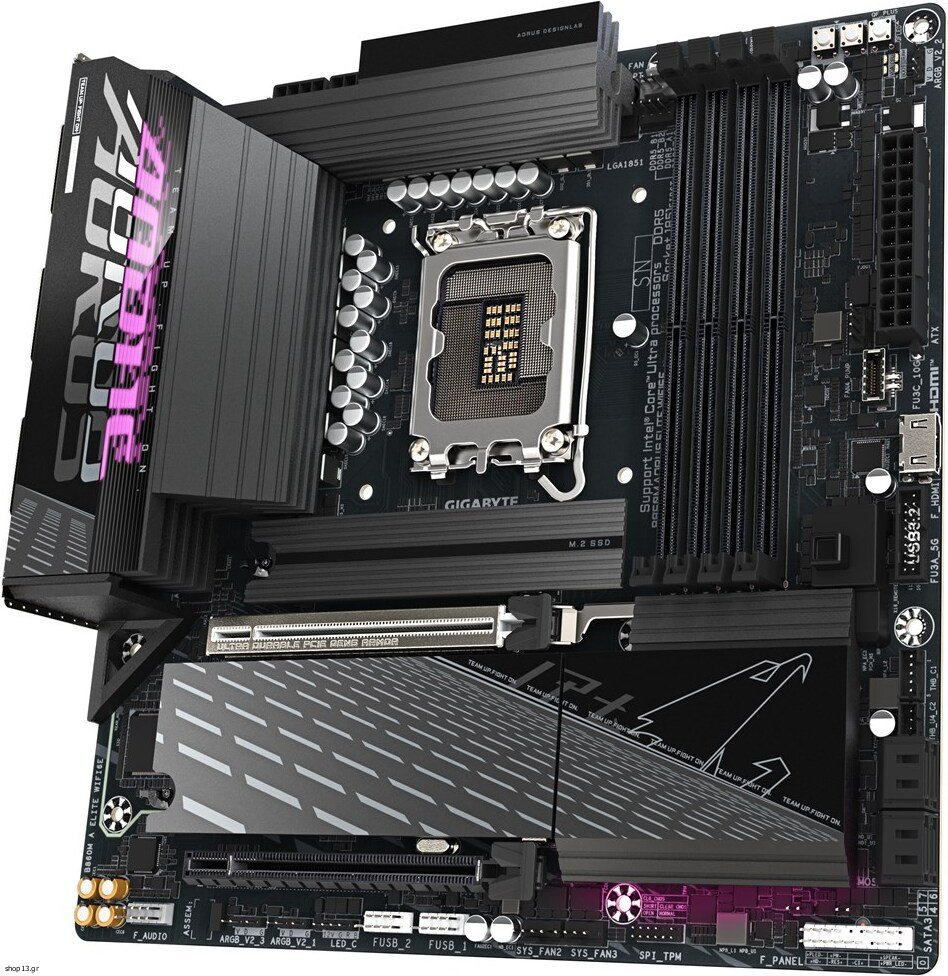

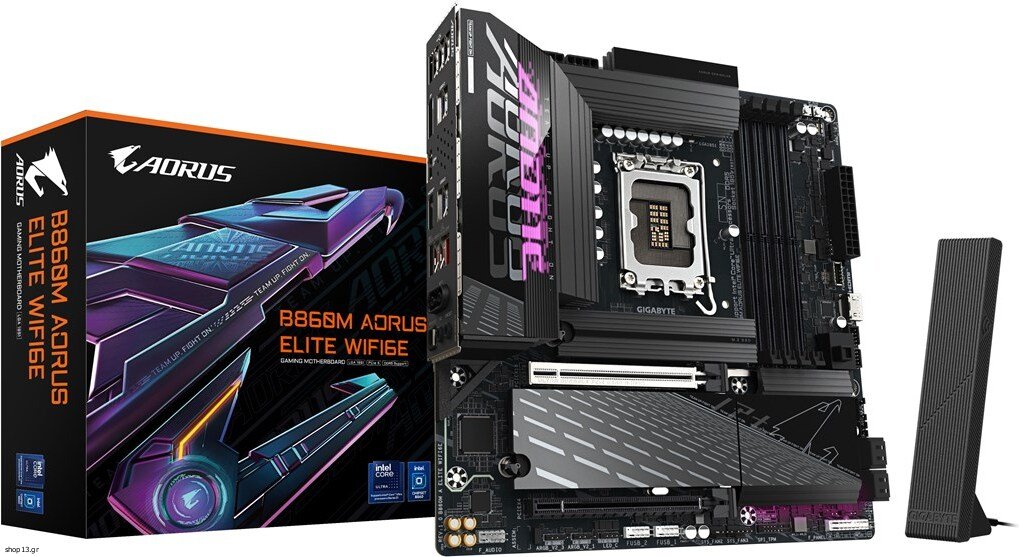

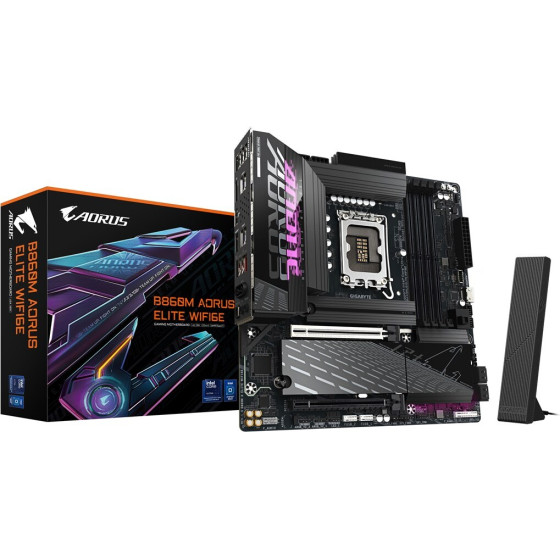

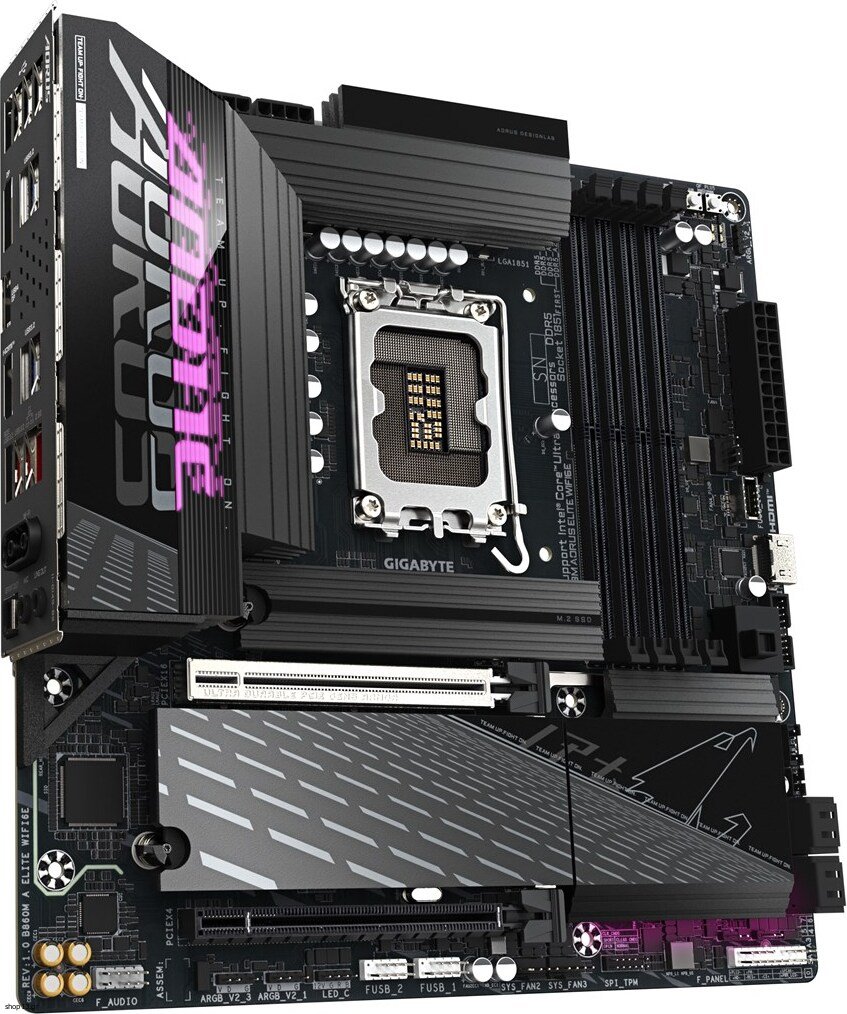

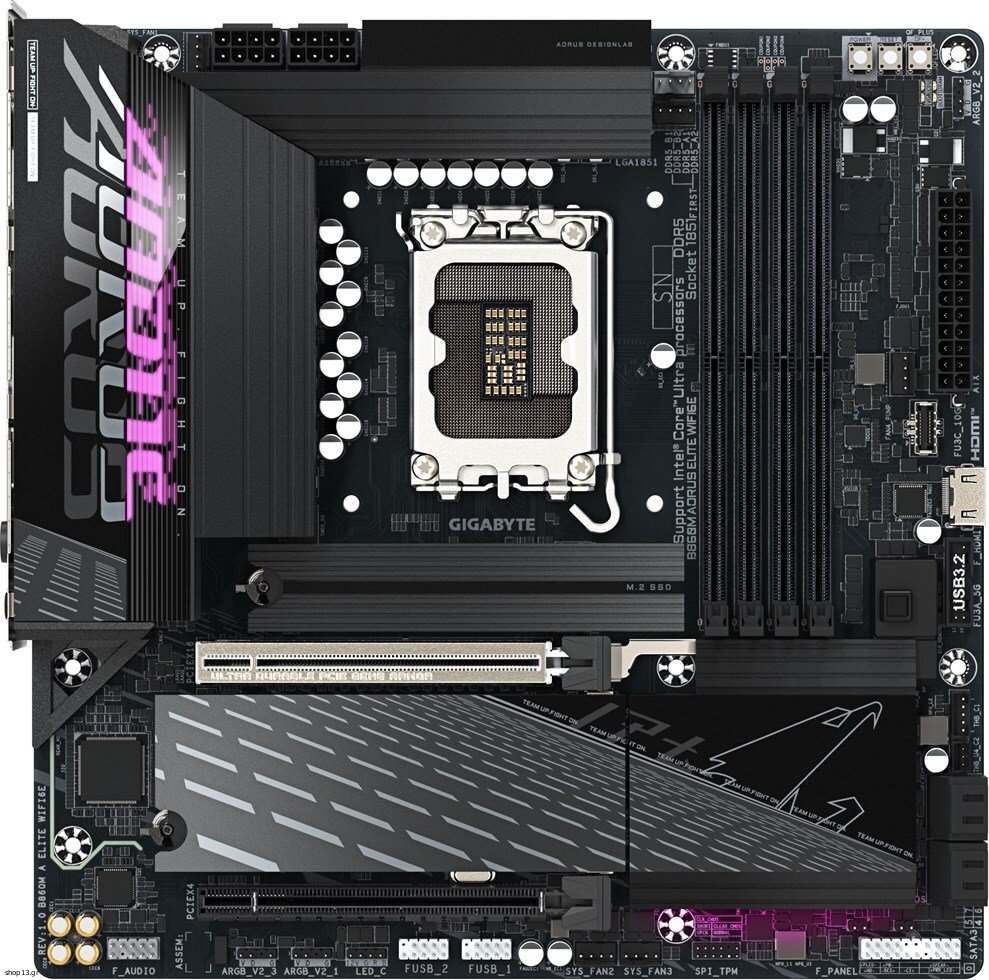

Gigabyte B860M Aorus Elite WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, Up To 9200MHz DDR5, 1xPcie 5.0 + 2xPcie 4.0 M.2, 2.5GBe LAN, Wifi 6E, Thunderbolt - (B860M A Elite WIFI6E)

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2), Intel(R) Core(TM) Ultra (Series 1)
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
HDCP: Yes

Features
Windows operating systems supported: Windows 11 x64
Power source type: ATX
Cooling type: Passive
PC health monitoring: Voltage, Temperature, Water cooling, Fan
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Product colour: Black
Motherboard chipset: Intel B860
Motherboard form factor: micro ATX

Memory
Memory channels: Dual-channel
Supported memory clock speed (max): 9200 MHz
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speeds: 9200 MHz, 6400, 5600
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Depth: 244 mm
Height: 35 mm

Network
Wi-Fi standards: 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth: Yes

Internal I/O
TPM connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
Front panel connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 2
Number of CPU fan connectors: 2
Number of water pump connectors: 2
Number of EPS power connectors (8-pin): 2

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package width: 270 mm
Package height: 68 mm
Package weight: 1.89 kg
Package depth: 268 mm

Packaging content
Batteries included: Yes
Screws included: Yes
Antenna included: Yes

Storage controllers
RAID levels: 10, 5, 0, 1
Number of storage drives supported: 7
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
Digital audio optical out: 1
USB4 Gen 2x2 ports quantity: 1
WiFi-AP antenna jack: 2
Line-in: Yes
Headphone outputs: 1
S/PDIF out port: Yes
DisplayPort version: 2.1
DisplayPorts quantity: 1

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 25110
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2580
1st M.2 highest PCI Express generation: 5.0

Battery
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery weight: 3 g

Other features
Weight: 1.69 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician.


Warranty: warranty 36 months
