Περιγραφή
Features

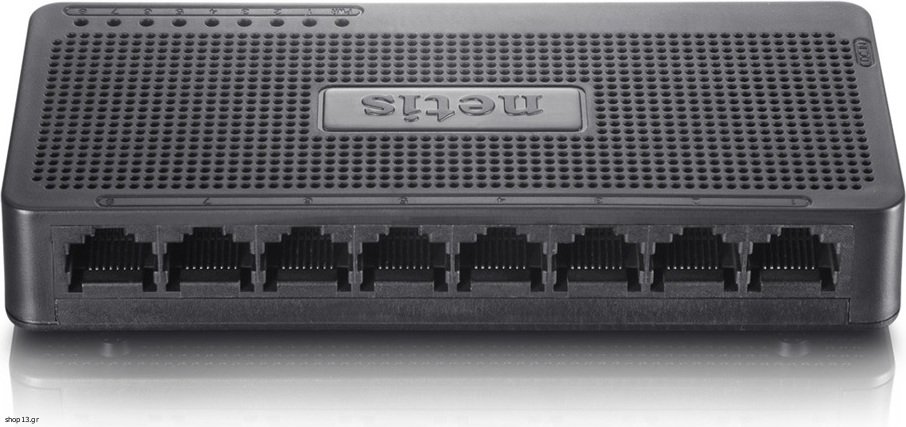

8x 10/100Mbps Auto-Negotiation RJ45 ports, supports auto MDI/MDIX
Green Ethernet technology saves the power up to 70%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop or wall-mounting design better for home and office use
Plug and Play, no configuration required
Specifications
Hardware
Interface: 8* 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX
LED: PWR, 1-8
Power Supply: DC 5V/800mA(Output)
Dimensions (L x W x H ): 130 x 70 x 26mm
Switching Features
Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3x Flow Control
Access Method: CSMA/CD
Transmission Method: Store and Forward
Data Transmission Rate: 10/100Mbps(Half-duplex)
20/200Mbps(Full-duplex)
MAC Address Table: 2K
Others
Certification: FCC, CE, BSMI
Environment: Operating Temperature: 0?~40?
Storage Temperature: -20?~70?
Operating Humidity: 5%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
PORTS
8
ΤΑΧΥΤΗΤΑ
100Mbits
ΤΥΠΟΣ SWITCH
DESKTOP
