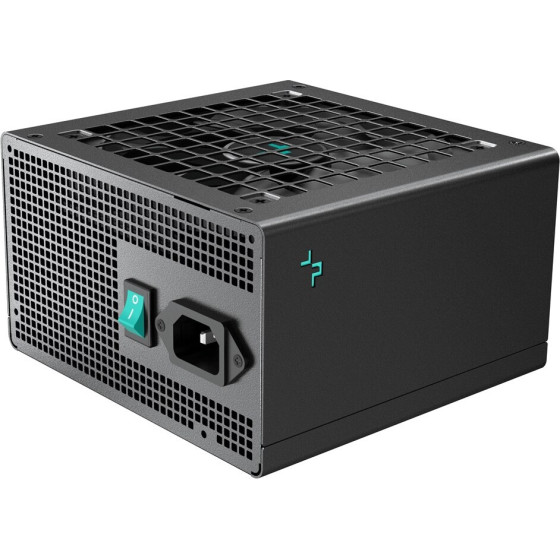

DEEPCOOL PN750D power supply unit 750 W 20+4 pin ATX ATX Black - (R-PN750D-FC0B-EU)

Technical details
Warranty period: 10 year(s)
Compliance certificates: WEEE, RCM, Federal Communications Commission (FCC), EAC, RoHS, CE, CCC
Sustainability certificates: Triman, ErP

Design
Number of fans: 1 fan(s)
Product colour: Black
Fan diameter: 12 cm
Fan location: Top
Cooling type: Active
On/off switch: Yes

Power
AC input frequency: 50/60 Hz
Combined power (+3.3V): 110 W
Max output current (+12V): 62.5 A
AC input voltage: 100 - 240 V
Power protection features: Over power, Short circuit, Over voltage, Surge & inrush protection (SIP), Overheating, Surge protection, No load operation, Under voltage
Efficiency: 90%
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Max output current (+5V): 20 A
Total power: 750 W
Input current: 10 - 5 A
Max output current (-12V): 0.3 A
Combined power (+5Vsb): 15 W
Combined power (+12V): 750 W
Combined power (+5V): 110 W
Power Factor Correction (PFC) type: Active

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Depth: 140 mm
Height: 86 mm
Width: 150 mm

Performance
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Purpose: PC
Bearing technology: FDB
ATX version: 3.1
Power supply unit (PSU) form factor: ATX

Packaging data
Package type: Box

Packaging content
Cable tie(s) included: Yes
Cables included: AC

Ports & interfaces
Peripheral (Molex) power cable length: 450 mm
Cabling type: Non-Modular
Peripheral (Molex) power connectors (4-pin): 2
CPU power cable length: 70 cm
SATA power cable length: 650, 750, 450, 550
PCI Express power connectors (6+2 pin): 3
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 8
PCI Express power connectors (16-pin): 1
Motherboard power cable length: 55 cm
ATX power connector (20+4 pin): Yes

Safety warning
Warnings: Do not open the case - risk of electric shock.


Warranty: warranty 60 months
