Περιγραφή
Processor
Built-in processor: Yes
Features
Product colour: Black
Rack capacity: 1U
Power
Power management: DC 12 V
Current: 2 A
Operational conditions
Operating temperature (T-T): -10 - 55 °C
Storage relative humidity (H-H): 10 - 93%
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Weight: 810 g
Depth: 232.5 mm
Height: 47.6 mm
Width: 260 mm
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Client interoperability: ONVIF (Profile S / (Profile T / (Profile G), CGI, SDK
System requirements
Mobile operating systems supported: iOS, Android
Performance
Video input channels: 16 channels
Video formats supported: H.265, H.264+, H.265+, H.264
People counting: Yes
Video motion detection: Yes
Audio codecs: G.711a; G.711u; PCM; G726
Number of simultaneously playbacked channels: 16 channels
Maximum resolution: 3840 x 2160 pixels
Operating system installed: Embedded LINUX
Multi-screen: Yes
Playback modes: Instant playback, general playback, event playback, tag playback, smart playback
Backup function: Yes

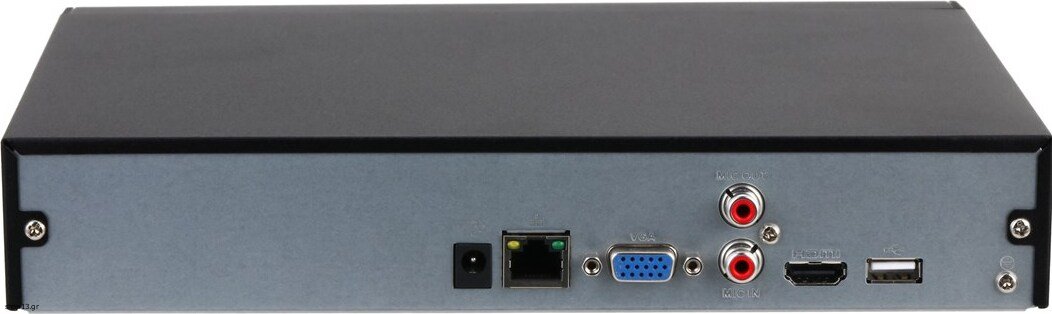

Ports & interfaces
USB 2.0 ports quantity: 2
VGA (D-Sub) output ports: 1
Ethernet LAN (RJ-45) ports: 1
HDMI output: Yes
Audio RCA outputs: 1
HDMI ports quantity: 1
RCA input: 1
Hard drive
Number of HDDs supported: 1
Maximum storage capacity: 20 TB
Number of SATA connectors: 1
Safety warning
Warnings: The product must be disposed of in accordance with local hazardous waste regulations., Do not expose the device to moisture or extreme temperatures., The appliance should be installed by a qualified professional.
Warranty: Manufacturer warranty 36 months
