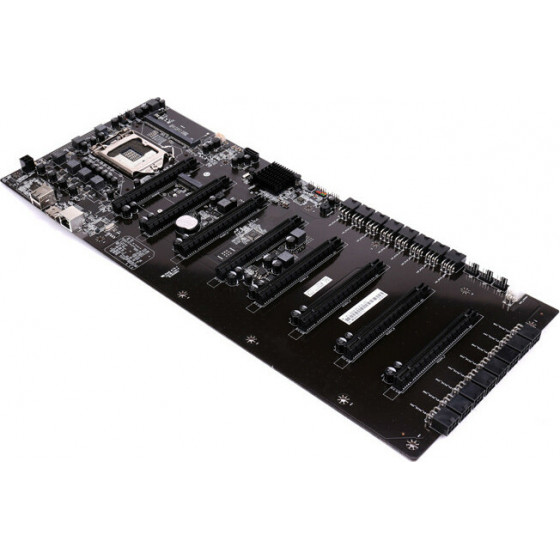

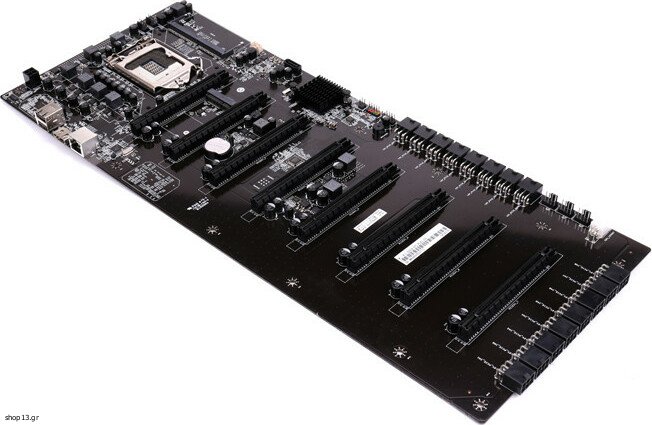

Colorful C.B250A-BTC PLUS V20 - DDR4 7th/6th Gen Intel Socket 1151 - Pro Mining Motherboard - (110003187701)

Crypto Mining

Αυτή η Motherboard είναι ειδικά σχεδιασμένη για mining με άφθονες υποδοχές PCIe που εγγυώνται γρήγορη εξόρυξη.



Motherboard Series
Intel chipset,COLORFUL series


Chipset
Intel B250


Processor
Υποστηρίζει Intel LGA 1151 επεξεργαστές


Memory
1*SO-DIMM slot, Υποστηρίζει DDR4 2400/2133MHz memory


Graphics Support
1*PCI-E x16,7*PCI-E x1


SATA Ports
1*SATA3.0 6Gb/s port


Board I/O
2*USB2.0 ports

1*RJ45 lan

1*HDMI port

onboard: 1*9-pin USB2.0 header


Expansion Slots
1*MSATA slot


BIOS
128M UEFI


Power Management
support 95W processors


Hardware Monitor
CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring


LAN
Onboard 1000M LAN,Provides 10/100/1000Mb Ethernet


Audio
ALC662 6-channel audio chipset


Configuration
485x195mm


Other Features
Support S4, S5;Support phone call startup, timing boot, network S5 wake-up



Ο κατασκευαστείς προτείνει τη χρήση του τροφοδοτικού SEGOTEP SG-1800W-10P
Κατασκευαστής : COLORFUL
Βάρος : 2.38kg
