Περιγραφή

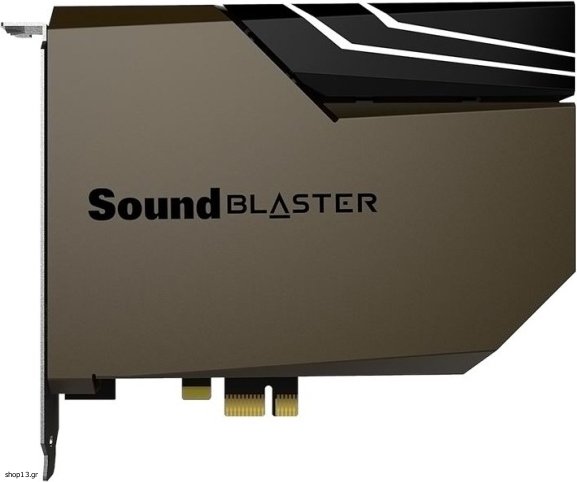

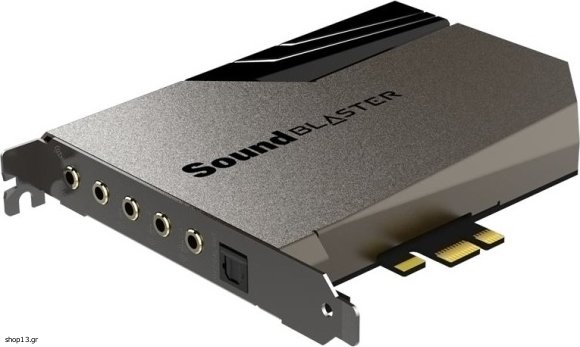

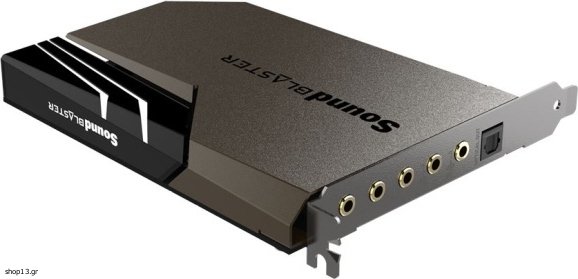

High-resolution DAC sound card with amplifier, featuring a discrete dual Xamp headphone amplifier and an audio control module.
Discrete 5.1 surround sound for speakers, virtual 7.1 surround sound for speakers and headphones, Dolby Digital Live, DTS Connect encoding, and Sound Blaster spatial virtualization.
Audiophile-grade components and cinema-quality audio deserve an audiophile-class headphone amplifier. The AE-7 features a dual Xamp headphone amplifier where each earcup gets its own power from the first amplification stage to the final sound output.
The result is silky-smooth sound, no matter how dynamic or demanding the sound scene. For professional users, the discrete dual Xamp amplifier satisfies even the most demanding audiophile needs, enabling music in its original form and experiencing it as intended by the creators.
It also delivers an extremely low output impedance of 1Ω, capable of driving studio-grade headphones with impedance up to 600Ω, including high-quality planar magnetic headphones.

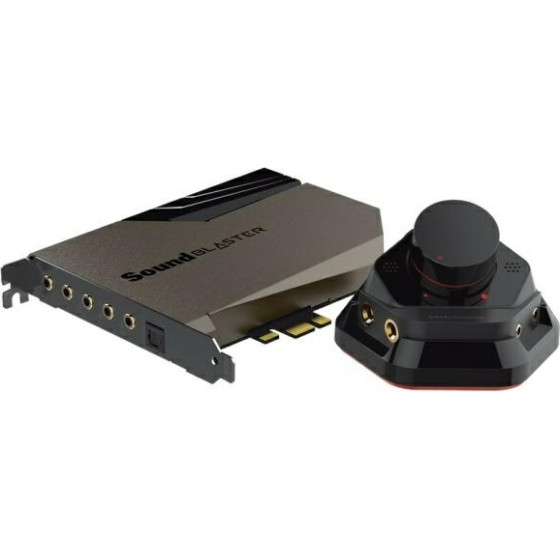

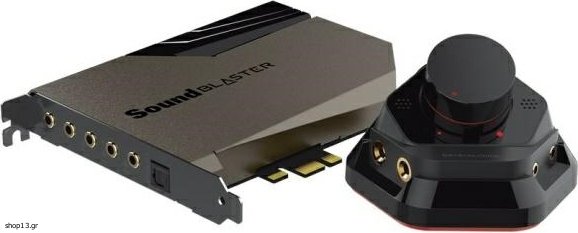

Easy control with the ACM, which integrates a built-in mic bus, 6.3 mm and 3.5 mm connectors for mic and headphone inputs and outputs. Volume can be conveniently adjusted via the knob on the ACM device--all within arm's reach.
Technical Specifications
Brand
Creative
Model
Sound Blaster AE-7
Type
Sound card
Headphone amplifier
Output impedance: 1 Ω, Supported headphone impedance: 16-600Ω, IEM: 16-31Ω (1.9V Rms), Standard: 32-149Ω (3V Rms), High Gain: 150-600Ω (5.6V RMS)
Audio processor
Sound Core3D
Direct mode
Playback bit resolution (stereo audio): PCM 16-bit / 44.1; 48.0; 88.2; 96.0; 192.0; 384 kHz; PCM 24-bit / 44.1; 48.0; 88.2; 96.0; 192.0; 384 kHz; PCM 32-bit / 44.1; 48.0; 88.2; 96.0; 192.0; 384 kHz; DSD 64 (2.8 MHz)
Playback bit resolution (optical output): 16-bit / 44.1; 48.0; 88.2; 96.0 kHz; 24-bit / 44.1; 48.0; 88.2; 96.0 kHz
Recording bit resolution
Microphone In: 16-bit / 44.1; 48.0; 88.2; 96.0 kHz; 24-bit / 44.1; 48.0; 88.2; 96.0 kHz; 32-bit / 44.1; 48.0; 88.2; 96.0 kHz
AUX Input: 16-bit / 44.1; 48.0; 88.2; 96.0 kHz, 24-bit / 44.1; 48.0; 88.2; 96.0 kHz
What-U-Hear: 16-bit / 44.1; 48.0 kHz, 24-bit / 44.1; 48.0 kHz, 32-bit / 44.1; 48.0 kHz
Playback bit resolution (stereo and 5.1 surround sound)
16-bit / 44.1; 48.0; 88.2; 96.0 kHz, 24-bit / 44.1; 48.0; 88.2; 96.0 kHz, 32-bit / 44.1; 48.0; 88.2; 96.0 kHz
Main input options
1 optical TOSLINK output, 1 x 3.5 mm Rear output, 1 x 3.5 mm Center/Sub output, 1 x 3.5 mm Microphone/Line input (default as Microphone with software-switchable options), 1 x 3.5 mm Headphone/Headset output (default as Headphone), 1 x 3.5 mm Front output
Additional input options
1 x 3.5 mm mono microphone input, 1 x 3.5 mm headphone output, 1 x 7 mm headphone output, 1 x 6.3 mm mono microphone input
Audio technologies
CrystalVoice
Supported operating systems
Windows(R) 8, Windows(R) 8.1, Windows(R) 10, Windows(R) 11
DAC
THD+N (Stereo): 0.0001%, Dynamic range (Stereo): 127 dB
Power
PCI-e bus power
Dimensions
Main card: 145 x 20 x 128 mm, Audio Control Module (ACM): 100 x 92 x 70 mm
