Asrock μητρική B550M-Hvs SE, 2x DDR4, AM4, Usb 3.2, Matx - (B550M-HVS-SE)
[Κωδικός : 404665]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή

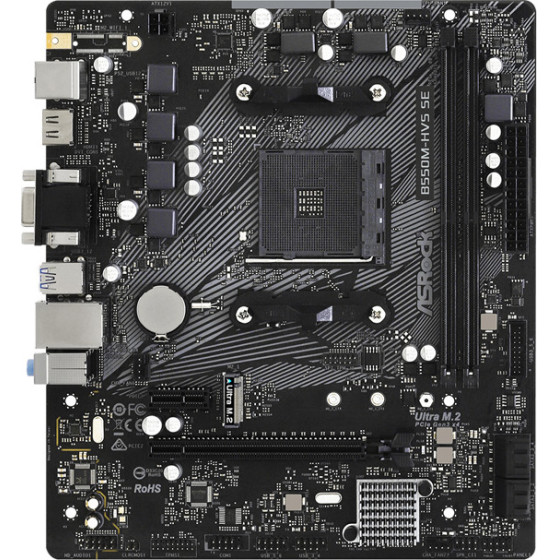

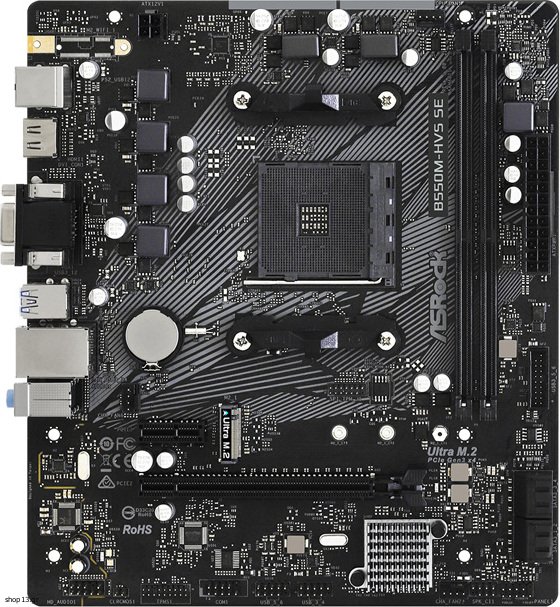

ASROCK μητρική B550M-HVS SE, 2x DDR4, AM4, USB 3.2, mATX
Η B550M-HVS SE της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset PRO565 της AMD.
Διαθέτει δυο εξόδους γραφικών: D-Sub και HDMI.
-Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
-6 Phase Power Design
-Supports DDR4 4733+ (OC)
-1 PCIe 4.0 x16, 1 PCIe 3.0 x1
-Graphics Output Options: D-Sub, HDMI
-7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
-4 SATA3, 1 Ultra M.2 (Gen3 x4 & SATA3)
-6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
-Realtek Gigabit LAN
Τεχνικά χαρακτηριστικά
CPU: AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors / 6 Power Phase design
Chipset: AMD PRO565
Memory: 2x DDR4 DIMM Slots / Dual Channel DDR4 Memory Technology / Supports Extreme Memory Profile (XMP) memory modules / 15μ Gold Contact in DIMM Slots
Max. capacity of system memory: 64GB
BIOS: 128Mb AMI UEFI Legal BIOS with GUI support / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Graphics: HDMI 2.1, D-Sub
Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec), Supports Surge Protection
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Slots: CPU: 1x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode / Chipset: 1x PCIe 3.0 x1 Slot (PCIE1)
Storage: CPU: 1x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes / Chipset: 4x SATA3 6.0 Gb/s Connectors
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Form Factor: Micro ATX Form Factor: 23.0 cm x 20.1 cm
OS: Microsoft Windows 10 64-bit / 11 64-bit
Connector:
-1x SPI TPM Header
-1x COM Port Header
-1x Chassis Intrusion and Speaker Header
-1x CPU Fan Connector (4-pin)
-2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
-1x 24 pin ATX Power Connector
-1x 4 pin 12V Power Connector
-1x Front Panel Audio Connector
-2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
-1x PS/2 Mouse/Keyboard Port
-1x D-Sub Port
-1x HDMI Port
-2x USB 2.0 Ports (Supports ESD Protection)
-4x USB 3.2 Gen1 Ports (Supports ESD Protection)
-1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-HD Audio Jacks: Line in / Front Speaker / Microphone
Περιεχόμενα συσκευασίας
Μητρική B550M-HVS SE
2x SATA Data Cables
Screw for M.2 Socket
I/O Shield
User Manual
Brand: ASROCK
Συσκευασία: Retail box
Socket: AM4
Chipset: PRO565
Η B550M-HVS SE της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset PRO565 της AMD.
Διαθέτει δυο εξόδους γραφικών: D-Sub και HDMI.
-Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
-6 Phase Power Design
-Supports DDR4 4733+ (OC)
-1 PCIe 4.0 x16, 1 PCIe 3.0 x1
-Graphics Output Options: D-Sub, HDMI
-7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
-4 SATA3, 1 Ultra M.2 (Gen3 x4 & SATA3)
-6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
-Realtek Gigabit LAN
Τεχνικά χαρακτηριστικά
CPU: AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors / 6 Power Phase design
Chipset: AMD PRO565
Memory: 2x DDR4 DIMM Slots / Dual Channel DDR4 Memory Technology / Supports Extreme Memory Profile (XMP) memory modules / 15μ Gold Contact in DIMM Slots
Max. capacity of system memory: 64GB
BIOS: 128Mb AMI UEFI Legal BIOS with GUI support / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Graphics: HDMI 2.1, D-Sub
Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec), Supports Surge Protection
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Slots: CPU: 1x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode / Chipset: 1x PCIe 3.0 x1 Slot (PCIE1)
Storage: CPU: 1x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes / Chipset: 4x SATA3 6.0 Gb/s Connectors
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Form Factor: Micro ATX Form Factor: 23.0 cm x 20.1 cm
OS: Microsoft Windows 10 64-bit / 11 64-bit
Connector:
-1x SPI TPM Header
-1x COM Port Header
-1x Chassis Intrusion and Speaker Header
-1x CPU Fan Connector (4-pin)
-2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
-1x 24 pin ATX Power Connector
-1x 4 pin 12V Power Connector
-1x Front Panel Audio Connector
-2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
-1x PS/2 Mouse/Keyboard Port
-1x D-Sub Port
-1x HDMI Port
-2x USB 2.0 Ports (Supports ESD Protection)
-4x USB 3.2 Gen1 Ports (Supports ESD Protection)
-1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-HD Audio Jacks: Line in / Front Speaker / Microphone
Περιεχόμενα συσκευασίας
Μητρική B550M-HVS SE
2x SATA Data Cables
Screw for M.2 Socket
I/O Shield
User Manual
Brand: ASROCK
Συσκευασία: Retail box
Socket: AM4
Chipset: PRO565
Χαρακτηριστικά
Μοντέλο
ASROCK μητρική B550M-HVS SE, 2x DDR4, AM4, USB 3.2, mATX - (B550M-HVS-SE)
