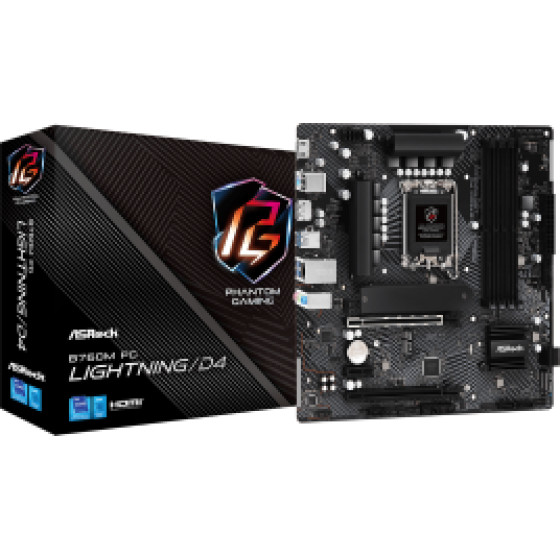

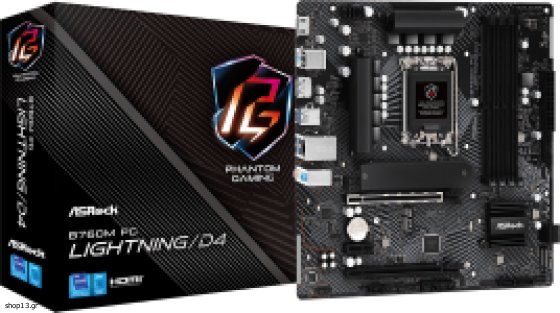

Asrock Mb B760M Pg LIGHTING/ D4, Socket Intel Lga 1700 14th/13tth/12th Gen Intel CPU, Cs Intel B760, 4 Dimm Socket DDR4, HDMI/DP, Gigabit LAN, MICRO-ATX, 3YW - (B760M Pg LIGHTING/D4)

CPU Support: Socket Intel LGA1700 for 14th/13th/12th Generation Intel Core CPU.
Chipset: Intel B760.
MB Size: Micro ATX.
Memory Support: 4x DDR4 DIMM Sockets for non-ECC un-buffered DDR4 RAM up to 5333+(OC)MHz. Max 128GB. Dual Channel Architecture. Supports Intel XMP 2.0.
VGA: Intel Xe Graphics Architecture (Gen 12). Supported only with CPUs with integrated GPU.
VGA Out: 1x HDMI v2.1, 1x Display Port v1.4.
Slots:

CPU: 1x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode.
Chipset: 1x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode, 1x PCIe 4.0 x1 Slot (PCIE2), 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe module.
Storage:

CPU: 1x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4 x4 (64Gb/s) mode.
Chipset: 1x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4 x4 (64Gb/s).
Chipset: 4x SATA3 6.0GB/s ports supports RAID 0/1/5/10
NIC:Gigabit LAN 10/100/1000 Mb/s.
Audio: 7.1 CH HD Audio (Realtek ALC 897 Audio Codec). Nahimic Audio.
I/O: 1x Display Port 1.4, 1x HDMI 2.1, 2x USB2.0(+4int), 1x USB3.2 Gen1 Type-C, 3x USB3.2 Gen1 Type-A (+2int), 1x internal Thunderbolt, 1x RJ45(LAN), 3 Audio jacks, 1x Front Panel Audio Connector, 2x Antenna Mounting Points, 1x PS/2 Mouse/Keyboard port.
Certification: FCC, CE, ErP/EuP.
Εγγύηση: 3 χρόνια.
