Design
LED indicators: Yes
Product colour: Grey
Reset button: Yes
Power
Power consumption (max): 15.61 W

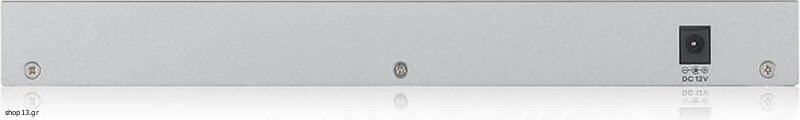

DC input voltage: 12 V
Power supply included: Yes
AC input voltage: 100 - 240 V
Input current: 1.5 A
Power source: AC/DC
Security
Loop protection: Yes
IGMP snooping: Yes
DHCP features: DHCP client
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Management features
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes
Weight & dimensions
Width: 250 mm
Weight: 768 g
Height: 24 mm
Depth: 104 mm
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3az
Link aggregation: Yes
Full duplex: Yes
VLAN support: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Broadcast storm control: Yes
Flow control support: Yes
Packaging data
Package width: 306 mm
Package weight: 1.22 kg
Package depth: 225 mm
Package height: 64 mm

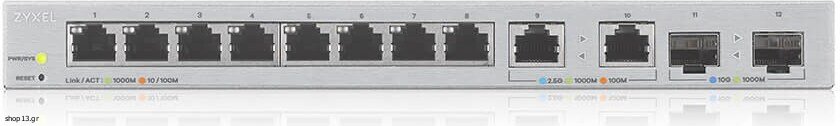

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
SFP+ module slots quantity: 2
2.5G Ethernet (copper) ports quantity: 2
Logistics data
Harmonized System (HS) code: 85176990
Data transmission
MAC address table: 16000 entries
Jumbo frames: 12000
Switching capacity: 66 Gbit/s
Forwarding rate: 49 Mpps
Packet buffer memory: 1.5 MB
Static route: Yes
Jumbo frames support: Yes
Multicast features
Multicast support: Yes
Warranty: Lifetime warranty
