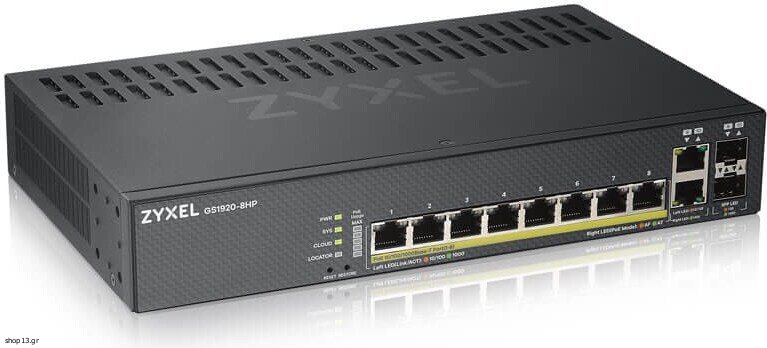

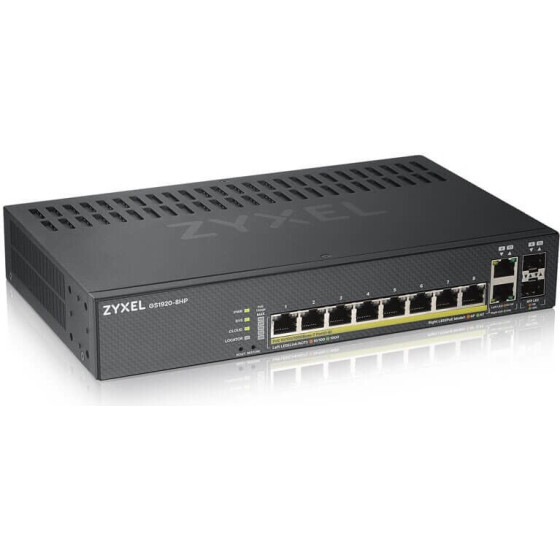

Zyxel GS1920-8HPV2 Managed Gigabit Ethernet (10/100/1000) Power Over Ethernet (PoE) Black - (GS1920-8HPV2-EU0101F)
[Κωδικός : 766732]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Design
LED indicators: Yes
Safety: LVD, BSMI
Electromagnetic compatibility: FCC 15 A, CE A, BSMI EMC
Wall mountable: Yes
Rack mounting: No
Product colour: Black
Power
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 161.8 W
Security
Access Control List (ACL): Yes
Queue scheduling algorithms: WFQ, SPQ, Weighted Round Robin (WRR)
Authentication: Guest VLAN, Port-based authentication
DHCP features: DHCPv6 relay, DHCP snooping, DHCP client, DHCP relay
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Security algorithms: SNMPv3, SNMP, 802.1x RADIUS
Password protection: Yes
Authentication type: IEEE 802.1x, RADIUS
MAC address filtering: Yes
CPU defense: Yes
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 551.74 BTU/h
Storage relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 95%
Management features
Quality of Service (QoS) support: Yes
ARP inspection: Yes
Switch type: Managed
System event log: Yes
Weight & dimensions
Height: 44 mm
Width: 267 mm
Depth: 162 mm
Weight: 1.9 kg
Network
Rate limiting: Yes
Virtual LAN features: Private VLAN, Port-based VLAN, Protocol-based VLAN, IP subnet-based VLAN, Voice VLAN, MAC address-based VLAN
Spanning tree protocol: Yes
Networking standards: IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z
VLAN support: Yes
10G support: No
Flow control support: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX
Performance
Mean time between failures (MTBF): 513985 h
Internal memory: 256 MB
Flash memory: 32 MB
Packaging data
Cables included: AC
Package width: 375 mm
Package weight: 2.73 kg
Package depth: 235 mm
Package height: 61 mm
Ports & interfaces
Combo SFP ports quantity: 2
Fiber optic connector: SFP
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Logistics data
Harmonized System (HS) code: 85176990
Data transmission
Switching capacity: 20 Gbit/s
Packet buffer memory: 1.5 MB
Forwarding rate: 15 Mpps
MAC address table: 16000 entries
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 130 W
Multicast features
Multicast support: Yes
Optical fiber
Fiber ethernet cabling technology: 1000BASE-X
Warranty: Lifetime warranty
LED indicators: Yes
Safety: LVD, BSMI
Electromagnetic compatibility: FCC 15 A, CE A, BSMI EMC
Wall mountable: Yes
Rack mounting: No
Product colour: Black
Power
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 161.8 W
Security
Access Control List (ACL): Yes
Queue scheduling algorithms: WFQ, SPQ, Weighted Round Robin (WRR)
Authentication: Guest VLAN, Port-based authentication
DHCP features: DHCPv6 relay, DHCP snooping, DHCP client, DHCP relay
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Security algorithms: SNMPv3, SNMP, 802.1x RADIUS
Password protection: Yes
Authentication type: IEEE 802.1x, RADIUS
MAC address filtering: Yes
CPU defense: Yes
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 551.74 BTU/h
Storage relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 95%
Management features
Quality of Service (QoS) support: Yes
ARP inspection: Yes
Switch type: Managed
System event log: Yes
Weight & dimensions
Height: 44 mm
Width: 267 mm
Depth: 162 mm
Weight: 1.9 kg
Network
Rate limiting: Yes
Virtual LAN features: Private VLAN, Port-based VLAN, Protocol-based VLAN, IP subnet-based VLAN, Voice VLAN, MAC address-based VLAN
Spanning tree protocol: Yes
Networking standards: IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z
VLAN support: Yes
10G support: No
Flow control support: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX
Performance
Mean time between failures (MTBF): 513985 h
Internal memory: 256 MB
Flash memory: 32 MB
Packaging data
Cables included: AC
Package width: 375 mm
Package weight: 2.73 kg
Package depth: 235 mm
Package height: 61 mm
Ports & interfaces
Combo SFP ports quantity: 2
Fiber optic connector: SFP
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Logistics data
Harmonized System (HS) code: 85176990
Data transmission
Switching capacity: 20 Gbit/s
Packet buffer memory: 1.5 MB
Forwarding rate: 15 Mpps
MAC address table: 16000 entries
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 130 W
Multicast features
Multicast support: Yes
Optical fiber
Fiber ethernet cabling technology: 1000BASE-X
Warranty: Lifetime warranty
