Περιγραφή
Design
Form factor: Desktop
LED indicators: Yes
Product colour: Grey
Stackable: No
Rack mounting: No
Power
AC input frequency: 50/60 Hz
Power consumption (max): 3.81 W
Power source: AC
AC input voltage: 100 - 240 V
Power supply included: Yes
Security
Password protection: Yes
IGMP snooping: Yes
DHCP features: DHCP client
Queue scheduling algorithms: Weighted Round Robin (WRR)
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 10 - 95%
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 13 BTU/h
Management features
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
Switch layer: L2
Weight & dimensions
Weight: 268 g
Width: 193 mm
Depth: 85 mm
Height: 26 mm
Network
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3u
Virtual LAN features: Port-based VLAN
Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-T
Broadcast storm control: Yes
VLAN support: Yes
Full duplex: Yes
Port mirroring: Yes
10G support: No
Flow control support: Yes
Performance
Mean time between failures (MTBF): 1266805 h
Fanless: Yes
Ports & interfaces

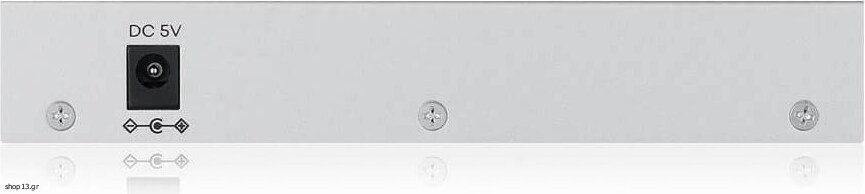

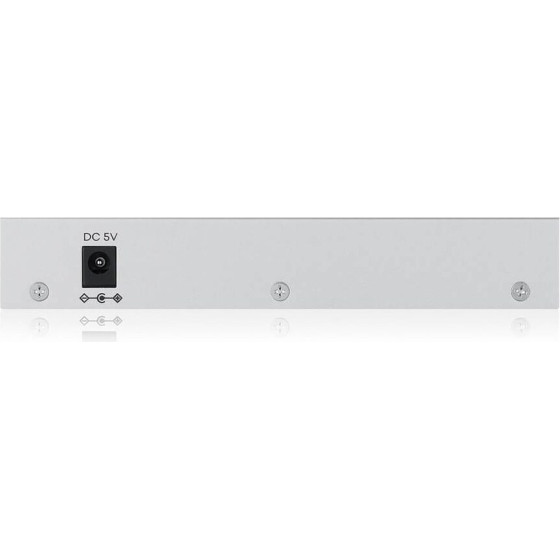

Power connector: DC-in jack

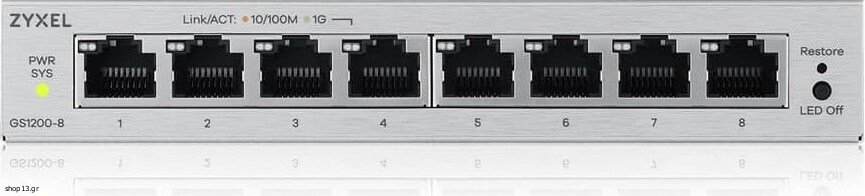

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Data transmission
Forwarding rate: 11.9 Mpps
Switching capacity: 16 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 15
Packet buffer memory: 0.192 MB
MAC address table: 4000 entries
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Multicast features
Number of multicast groups filtered: 128
Multicast support: Yes
Warranty: Lifetime warranty
