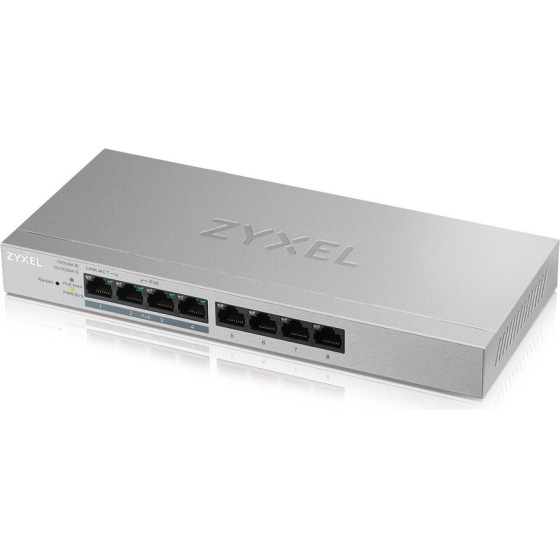

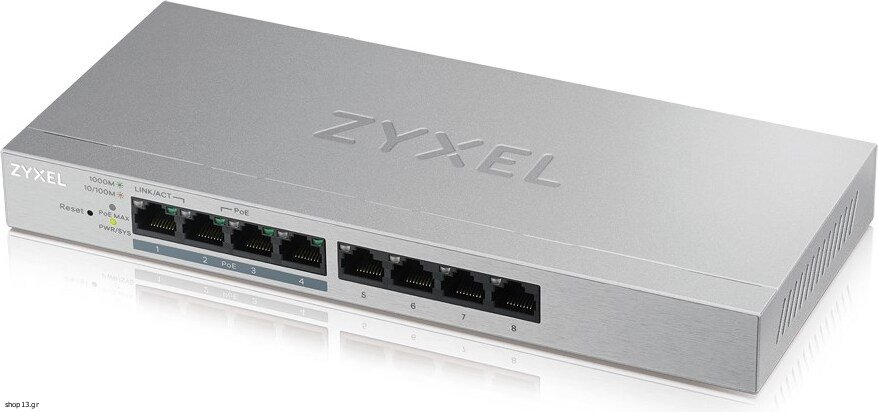

Zyxel GS1200-8HP v2 Managed Gigabit Ethernet (10/100/1000) Power Over Ethernet (PoE) Grey - (GS1200-8HPV2-EU0101F)

Design
Rack mounting: No
Product colour: Grey
Housing material: Metal

Power
Power consumption (max): 72 W
Input current: 1.3 A
DC input voltage: 55 V

Security
DHCP features: DHCP client
Loop protection: Yes
IGMP snooping: Yes

Operational conditions
Storage relative humidity (H-H): 10 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C

Management features
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes

Weight & dimensions
Depth: 105 mm
Weight: 584 g
Width: 240 mm
Height: 26 mm

Network
Auto MDI/MDI-X: Yes
Link aggregation: Yes
Full duplex: Yes
Flow control support: Yes
Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x
Port mirroring: Yes
Broadcast storm control: Yes

Performance
Buffer size: 192 KB

Packaging data
Package weight: 1.15 kg
Package depth: 132 mm
Package height: 78 mm
Package width: 256 mm

Ports & interfaces
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Jumbo frame range: 1 - 1 B
Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Jumbo frames support: Yes
Store-and-forward: Yes
Jumbo frames: 9000

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 60 W


Warranty: Lifetime warranty
