Περιγραφή
Design
Product colour: Grey
Rack mounting: No
LED indicators: Yes
Stackable: No
Form factor: Desktop
Power
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 2.718 W
Power source: AC
Power supply included: Yes
Security
IGMP snooping: Yes
DHCP features: DHCP client
Queue scheduling algorithms: Weighted Round Robin (WRR)
Password protection: Yes
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 10 - 95%
Heat dissipation: 9.274 BTU/h
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 95%
Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Switch layer: L2
Weight & dimensions
Depth: 75 mm
Width: 121 mm
Weight: 172 g
Height: 26 mm
Network
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p
10G support: No
Flow control support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
VLAN support: Yes
Broadcast storm control: Yes
Virtual LAN features: Port-based VLAN
Port mirroring: Yes
Full duplex: Yes
Performance
Mean time between failures (MTBF): 1375342 h
Fanless: Yes
Ports & interfaces

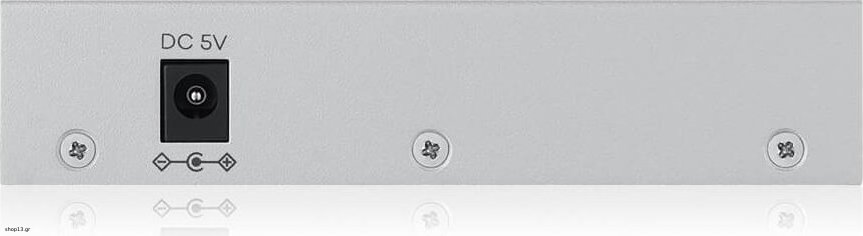

Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 5
Data transmission
Forwarding rate: 7.44 Mpps
Switching capacity: 10 Gbit/s
Jumbo frames: 15
Packet buffer memory: 0.192 MB
MAC address table: 4000 entries
Jumbo frames support: Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Multicast features
Number of multicast groups filtered: 128
Multicast support: Yes
Warranty: Lifetime warranty
