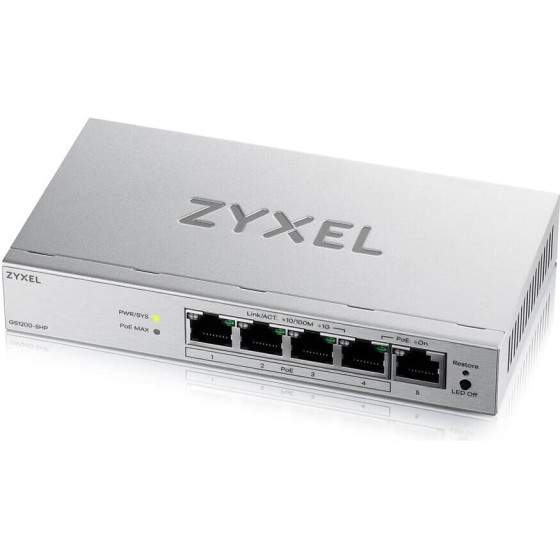

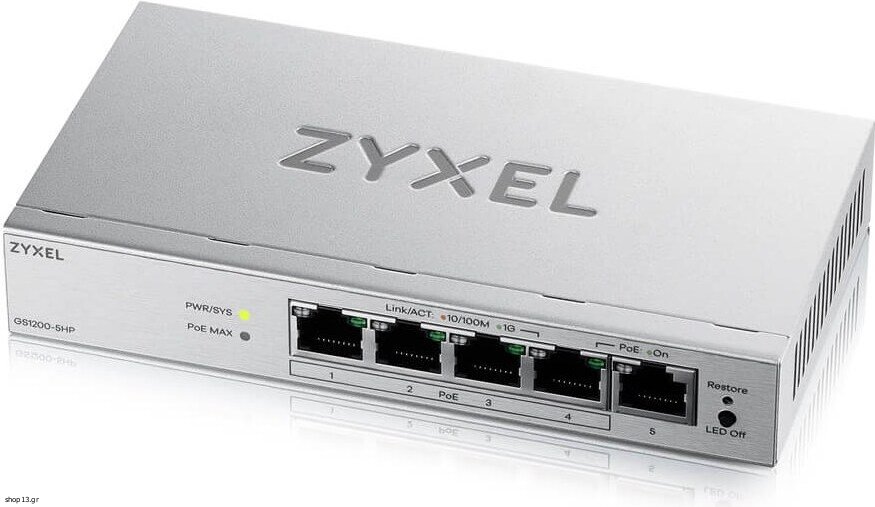

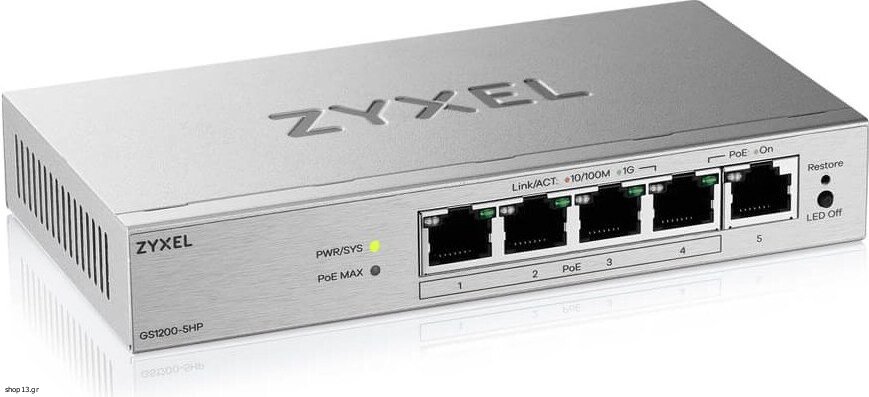

Zyxel GS1200-5HPV3 Managed L2 Gigabit Ethernet (10/100/1000) Power Over Ethernet (PoE) Desktop Grey - (GS1200-5HPV3-EU0101F)

Design
Form factor: Desktop
Rack mounting: No
LED indicators: Yes
Product colour: Grey
Stackable: No

Power
Power consumption (max): 4.153 W
Power source: AC/PoE
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power supply included: Yes

Security
IGMP snooping: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
Password protection: Yes
DHCP features: DHCP client

Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 10 - 95%
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 44.788 BTU/h

Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Switch layer: L2

Weight & dimensions
Height: 26 mm
Weight: 274 g
Depth: 85 mm
Width: 155 mm

Network
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3u
Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-T
VLAN support: Yes
10G support: No
Flow control support: Yes
Full duplex: Yes
Broadcast storm control: Yes
Virtual LAN features: Port-based VLAN
Port mirroring: Yes

Performance
Mean time between failures (MTBF): 1730334 h
Fanless: Yes

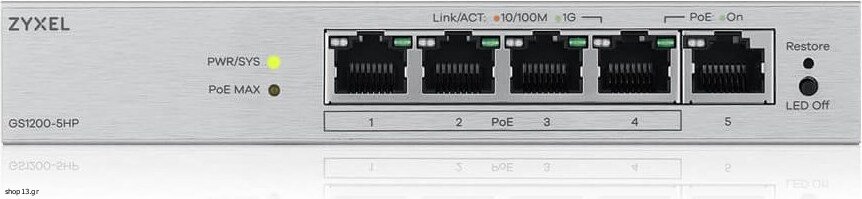

Ports & interfaces

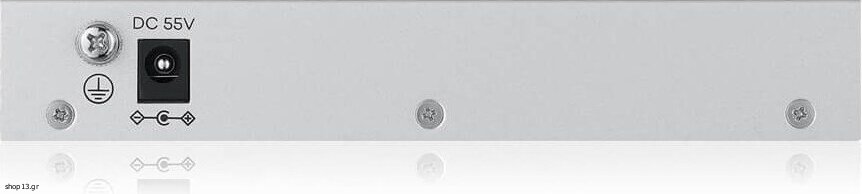

Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 5

Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
Packet buffer memory: 0.192 MB
Jumbo frames: 15
Jumbo frames support: Yes
MAC address table: 4000 entries

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 68 W
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE): Yes

Multicast features
Number of multicast groups filtered: 128
Multicast support: Yes


Warranty: Lifetime warranty
