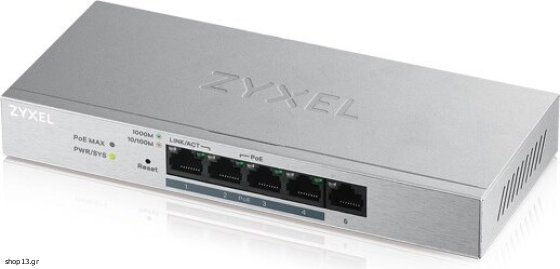

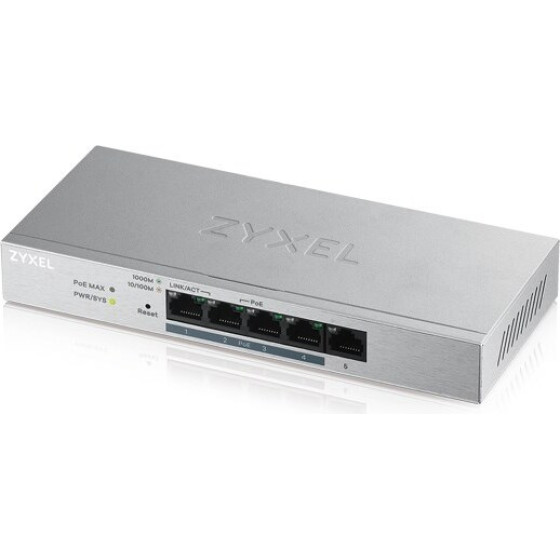

Zyxel GS1200-5HP v2 Managed Gigabit Ethernet (10/100/1000) Power Over Ethernet (PoE) Grey - (GS1200-5HPV2-EU0101F)

Design
LED indicators: PoE, Power, Link
Product colour: Grey
Safety: LVD EN60950-1
Stackable: No
On/off switch: Yes
Reset button: Yes
Rack mounting: No

Power
Output current: 1.3 A
Power consumption (max): 72 W

Security
DHCP features: DHCP client
IGMP snooping: Yes

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Management features
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes

Weight & dimensions
Weight: 392 g
Depth: 84 mm
Height: 26 mm
Width: 193 mm

Network
Virtual LAN features: Port-based VLAN
Link aggregation: Yes
Networking standards: IEEE 802.3x, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az
Auto MDI/MDI-X: Yes
Full duplex: Yes
Port mirroring: Yes
10G support: No
Flow control support: Yes
Broadcast storm control: Yes
VLAN support: Yes

Performance
Firmware upgradeable: Yes

Packaging data
Package width: 210 mm
Package type: Box
Package height: 78 mm
Package weight: 950 g
Package depth: 132 mm

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Store-and-forward: Yes
Jumbo frames: 9000
Jumbo frames support: Yes
Packet buffer memory: 0.1 MB
MAC address table: 2000 entries
Switching capacity: 10 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 60 W
Power over Ethernet (PoE) ports quantity: 5

Multicast features
Multicast support: Yes
Number of multicast groups filtered: 20


Warranty: Lifetime warranty
