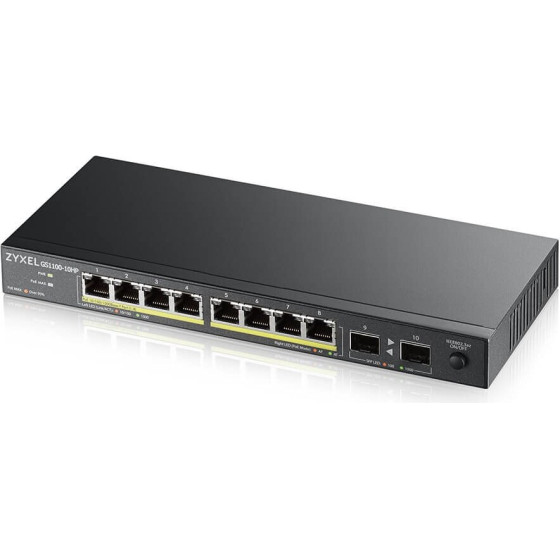

ZyXEL GS1100-10HP v2 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black - (GS1100-10HP-EU0102F)

Technical details
Compliance certificates: RoHS

Design
Product colour: Black
LED indicators: Yes
Wall mountable: Yes

Power
Power source: AC/DC
AC input frequency: 50 - 60 Hz
Power consumption (max): 156.1 W
AC input voltage: 100 - 240 V
Power supply included: Yes
DC input voltage: 54 V

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 10 - 95%
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 89 BTU/h

Management features
Switch type: Unmanaged

Weight & dimensions
Width: 250 mm
Weight: 730 g
Depth: 104 mm
Height: 27 mm

Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x
Ethernet LAN data rates: 100,1000 Mbit/s
Auto MDI/MDI-X: Yes
10G support: No

Performance
Mean time between failures (MTBF): 1000070 h

Packaging data
Package width: 228 mm
Package height: 67 mm
Package weight: 1.97 kg
Package depth: 304 mm

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Logistics data
Master (outer) case width: 323 mm
Master (outer) case length: 558 mm
Master (outer) case gross weight: 13.7 kg
Products per master (outer) case: 8 pc(s)
Harmonized System (HS) code: 85176990
Master (outer) case height: 275 mm

Data transmission
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Packet buffer memory: 0.256 MB
Switching capacity: 20 Gbit/s
Jumbo frames: 9000
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 130 W
Power over Ethernet (PoE) ports quantity: 8

Sustainability
Sustainability compliance: Yes
Sustainability certificates: RoHS


Warranty: Lifetime warranty
