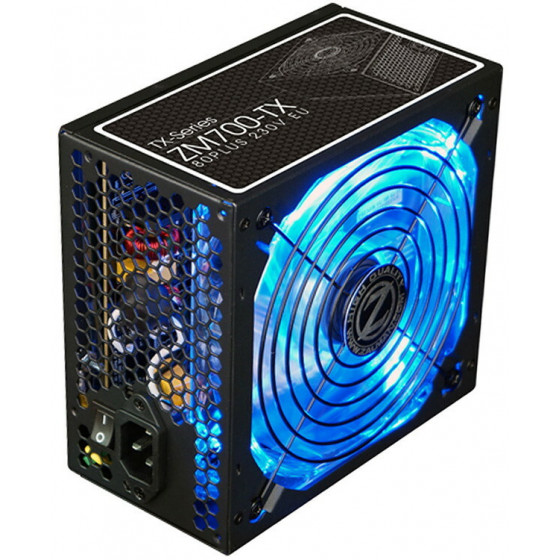

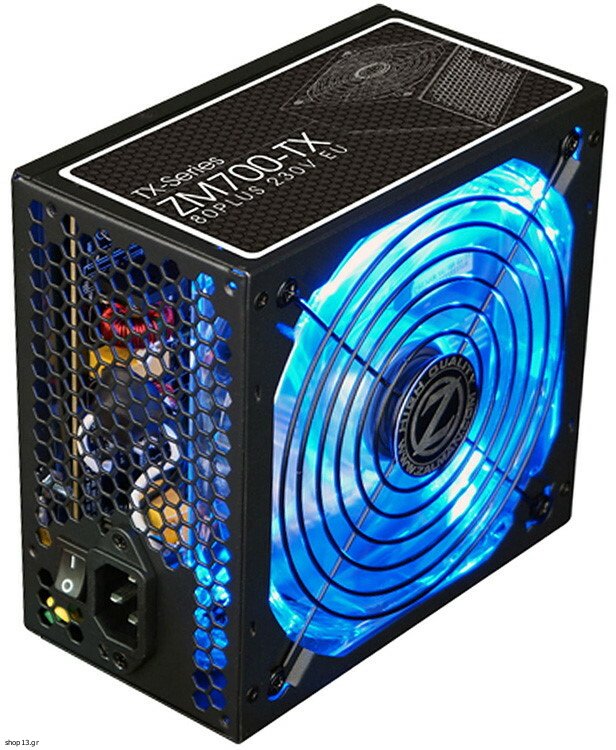

ZALMAN ΤΡΟΦΟΔΟΤΙΚΟ 700W 80PLUS ACTIVE PFC LED - (ZM700-TX)

ZALMAN τροφοδοτικό ZM700-TX, 700W, 80Plus Active PFC, LED-Built-in Active PFC circuit to provide high power factor and high efficiency
-Dual Forward Converter Circuit designed for stability
-Single+12VDC output design for stabilized voltage supply
-Built-in Over-voltage, Under-voltage, Short-circuit Protection Functions
-Circuit design with DC-DC Converter for +5V and +3.3V
-Low noise 140mm Quiet Blue LED Fan controlled by thermal Cooling SystemΤεχνικά Χαρακτηριστικά:
AC Input Range:
Voltage: 200 ~ 240VAC ± 10%
Frequency: 50 ~ 60Hz ± 3
AC Input Current(Rated)
Voltage: 200~ 240VAC
Current:8A
PFC Type: Active PFC
Power Factor: Max 98%
Inrush Current Limit(@ Cold start at 25°C): 115VAC-230VAC Max 100A
Efficiency: Max 87% @ 230VAC, Typical load
DC Output Voltage Regulations
Vout Regulation Range
+3.3VDC ±5% +3.14 ~ +3.47V
+5VDC ±5% +4.75 ~ +5.25V
+12VDC ±5% +11.4 ~ +12.6V
-12VDC ±10% -10.8 ~ -13.0V
+5VSB ±5% +4.75 ~ +5.25V
DC Output Ripple & Noise
Vout Standard Range
+3.3VDC 50mV
+5VDC 50mV
+12VDC 120mV
-12VDC 120mV
+5VSB 50mV
Temperature
Operation temperature: 0 ~ 40°C
Storage temperature: -20 ~ 70°C
Protection Features: Under Voltage(UVP), Short Circuit(SCP), Over Power(OPP), Over Current (OCP), Over Voltage(OVP)
Dimensions: 157(L) x 150(W) x 86(H) mm
Weight: 2.2kg




Κατασκευαστής:ZALMAN

Εγγύηση:24 μήνες

Διαστάσεις Συσκευασίας:28 x 10 x 18 cm

Βάρος Συσκευασίας:2.06 Kg

Τύπος συσκευασίας:Retail box
