Description

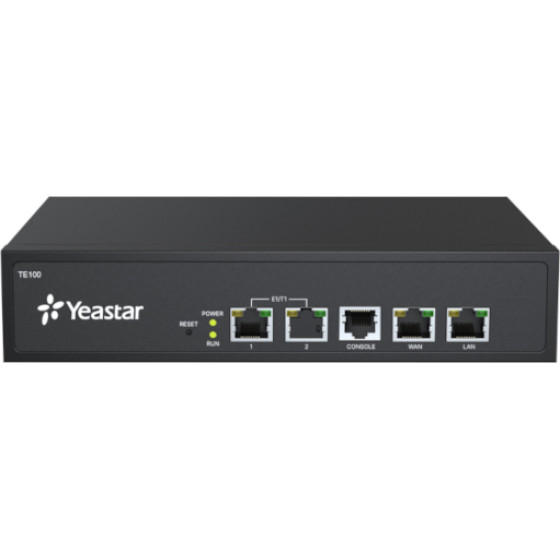

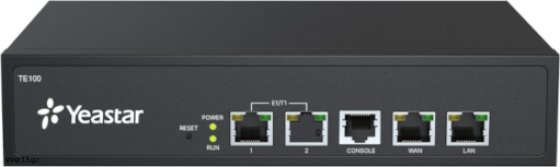

TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/T1/J1, and E1/T1/J1 to VoIP) that supports up to 30 concurrent calls. TE100 offers SMBs cost effective additions to a legacy telephone system to bring the true benefits of VoIP.
Key Features
Blocklist
Call Duration Limitation
Caller ID Prefix
Call Routing Rules
E1/T1/J1 Diagnostics
Firmware Upgrade by HTTP/TFTP
NAT Traversal
T.38 fax
SIP Trunk Support
SIP Registrar for IP phones
Web-based Configuration
Call Detail Record (CDR)
Caller ID
Configure backup/restore
Custom Prompts
Firewall
IP Blocklist
Packet Capture Tool
Trunk Group
SIP Peer Mode
System Logs
Specifications
E1/T1/J1 Ports (Support PRI, E&M)
1
Protocol
SIP (RFC3261)
Transport Protocol
UDP, TCP, TLS, SRTP
Codec
G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo Cancellation
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF Mode
RFC2833, SIP Info, In-band
Network
DDNS, Firewall, PPPoE, Static IP, QoS, Static Route
Network Protocol
FTP, TFTP, HTTP, HTTPS, SSH
PRI switch types
Euro ISDN, nation, Q.SIG
Caller ID
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
LAN
1 10/100Mbps
WAN
1 10/100Mbps
Power Supply
AC 100-240V (12V 2A)
Dimensions (L x W x H) (mm)
213 x 160 x 44
Operation Range
0°C to 40°C, 32°F to 104°F;
Storage Range
-20°C to 65°C, -4°F to 149°F
Humidity
10-90% non-condensing
