Description

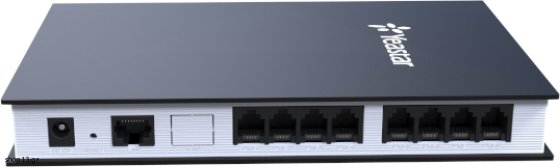

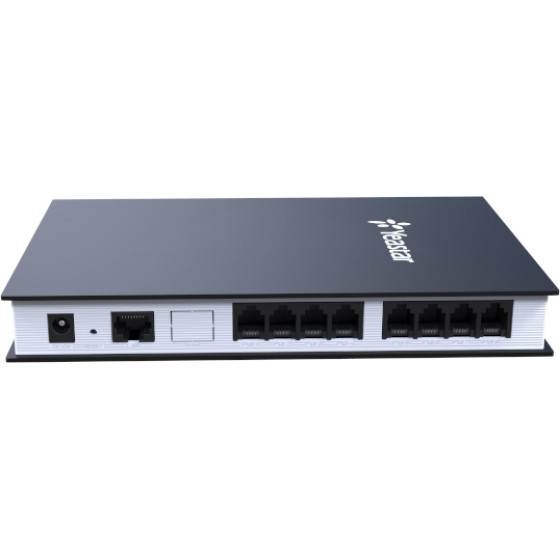

Yeastar TA800 features 8 FXS ports for analog phones and is designed to meet various demands of IP applications. The powerful features and robust performance simplify the integration of legacy phone system and IP-based system.
TA800 is a stand-alone FXS VoIP gateway with carrier-grade features and reliability.
- 8 FXS ports
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Superb voice compression with industry standard codecs
- Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
- Tested and certified with Elastix, BroadSoft, and others
Specifications
Interfaces Ports
8 FXS Ports
Telephony Interfaces
RJ11
Network Interfaces
1 10/100BASE-T Ethernet
Indicators
Ports Status and Activity LEDs
Media Processing Protocol
SIP (RFC3261), IAX2
Transport
UDP, TCP, TLS, SRTP
Codec
G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A/B, GSM, ADPCM
Voice Capability
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode
RFC2833, SIP Info, In-band
Fax
T.38 and Pass-through
QoS
DiffServ, ToS, 802.1 P/Q VLAN tagging
Telephony Features
Call Handling
3-way Conference, Attended and Blind Transfer, Call Forward, Caller ID Display, Call Waiting, CDR, Direct Caller ID Calling, Distinctive Ringtone, Do Not Disturb, Flexible Dialing Plan, Hunting Groups, Hotline, MWI, Speed Dial
Security/ IP Services Firewall
Built-in Firewall, IP Blacklist, Attack Alert
Network
DHCP, DDNS, OpenVPN, Static Route, VLAN
Nat Traversal
Static NAT, STUN
Network Protocol
FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol
RADIUS, TR-069
Provisioning
Web GUI, Auto Provisioning, Backup and Restore, Firmware Upgrade by HTTP/TFTP
Configuration
Remote Management, Packet Capture, System Logs, Voice Menu for FXS Gateways Basic Configuration, API
Connectivity Signaling
FXS Loop Start, FXS Kewl Start
Caller ID
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods
Busy Tone, Polarity Reversal
Short & Long Haul
3REN, up to 1.5 km on 24 AWG wire
Physical Power
12V, 1A
Dimensions (L x W x H) (mm)
200 x 137 x 25
Operation Temperature
0°C to 40°C, 32°F to 104°F
Storage Temperature
-20°C to 65°C, -4°F to 149°F
Humidity
10-90% non-condensing
Mounting
Desktop, Wall-mount
Compatibility
Softswitch and IP-PBX
Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
