Περιγραφή

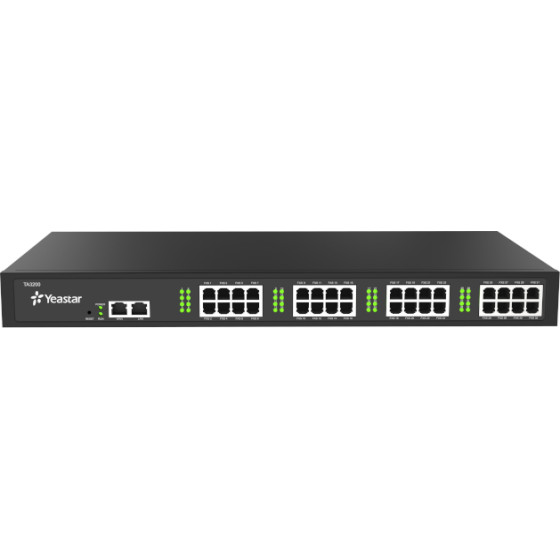

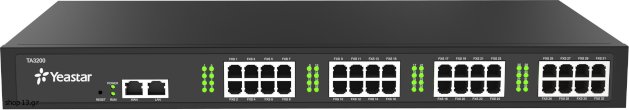

Yeastar NeoGate TA3200
The Yeastar NeoGate TA3200 is a multi-port FXS gateway including 32 FXS ports, line echo cancellation and is compatible with both SIP and IAX2. The TA3200 is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system.
Yeastar NeoGate TA3200 Features and Functions:
Fully compliant with SIP and IAX2
Flexible calling rules
Reliable fax performance with T.38
Provides high-quality voice compression with industry standard codecs
Line echo cancellation for 32, 64 or 128 ms echo delays
Web-based GUI for easy configuration and management
Excellent interoperability with a wide range of legacy and IP equipment
Specifications
Interfaces Ports
32 FXS Ports
Telephony Interfaces
RJ11 and RJ21 50-pin Telco Connectors
Network Interfaces
1 10/100BASE-T Ethernet
Indicators
Ports Status and Activity LEDs
Media Processing Protocol
SIP (RFC3261), IAX2
Transport
UDP, TCP, TLS, SRTP
Codec
G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A/B, GSM, ADPCM
Voice Capability
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode
RFC2833, SIP Info, In-band
Fax
T.38 and Pass-through
QoS
DiffServ, ToS, 802.1 P/Q VLAN tagging
Telephony Features
Call Handling
3-way Conference, Attended and Blind Transfer, Call Forward, Caller ID Display, Call Waiting, CDR, Direct Caller ID Calling, Distinctive Ringtone, Do Not Disturb, Flexible Dialing Plan, Hunting Groups, Hotline, MWI, Speed Dial
Security/ IP Services Firewall
Built-in Firewall, IP Blacklist, Attack Alert
Network
DHCP, DDNS, OpenVPN, Static Route, VLAN
Nat Traversal
Static NAT, STUN
Network Protocol
FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol
SNMP, RADIUS, TR-069
Provisioning
Web GUI, Auto Provisioning, Backup and Restore, Firmware Upgrade by HTTP/TFTP
Configuration
Remote Management, Packet Capture, System Logs, Voice Menu for FXS Gateways Basic Configuration, API
Connectivity Signaling
FXS Loop Start, FXS Kewl Start
Caller ID
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods
Busy Tone, Polarity Reversal
Short & Long Haul
3REN, up to 1.5 km on 24 AWG wire
Physical Power
AC 100-240V (12V 5A)
Dimensions (L x W x H) (mm)
440 x 250 x 44
Operation Temperature
0°C to 45°C, 32°F to 113°F
Storage Temperature
-20°C to 65°C, -4°F to 149°F
Humidity
10-90% non-condensing
Mounting
Desktop, Rack-mount
Compatibility
Softswitch and IP-PBX
Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
