Description

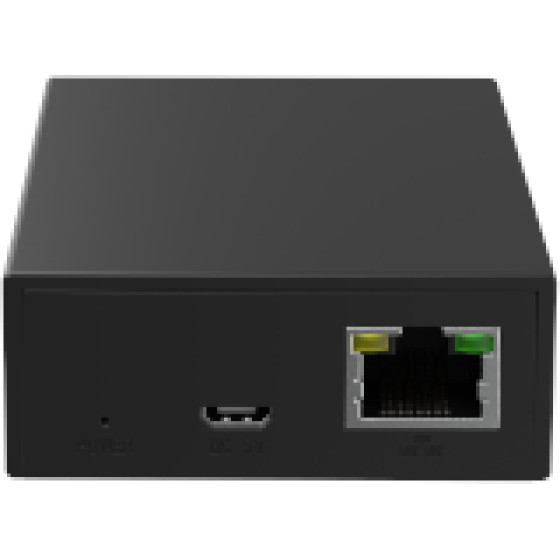

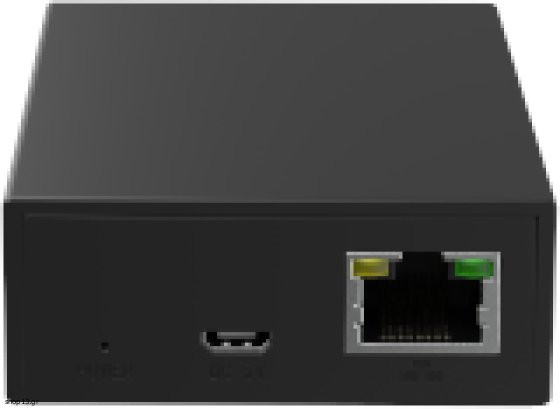

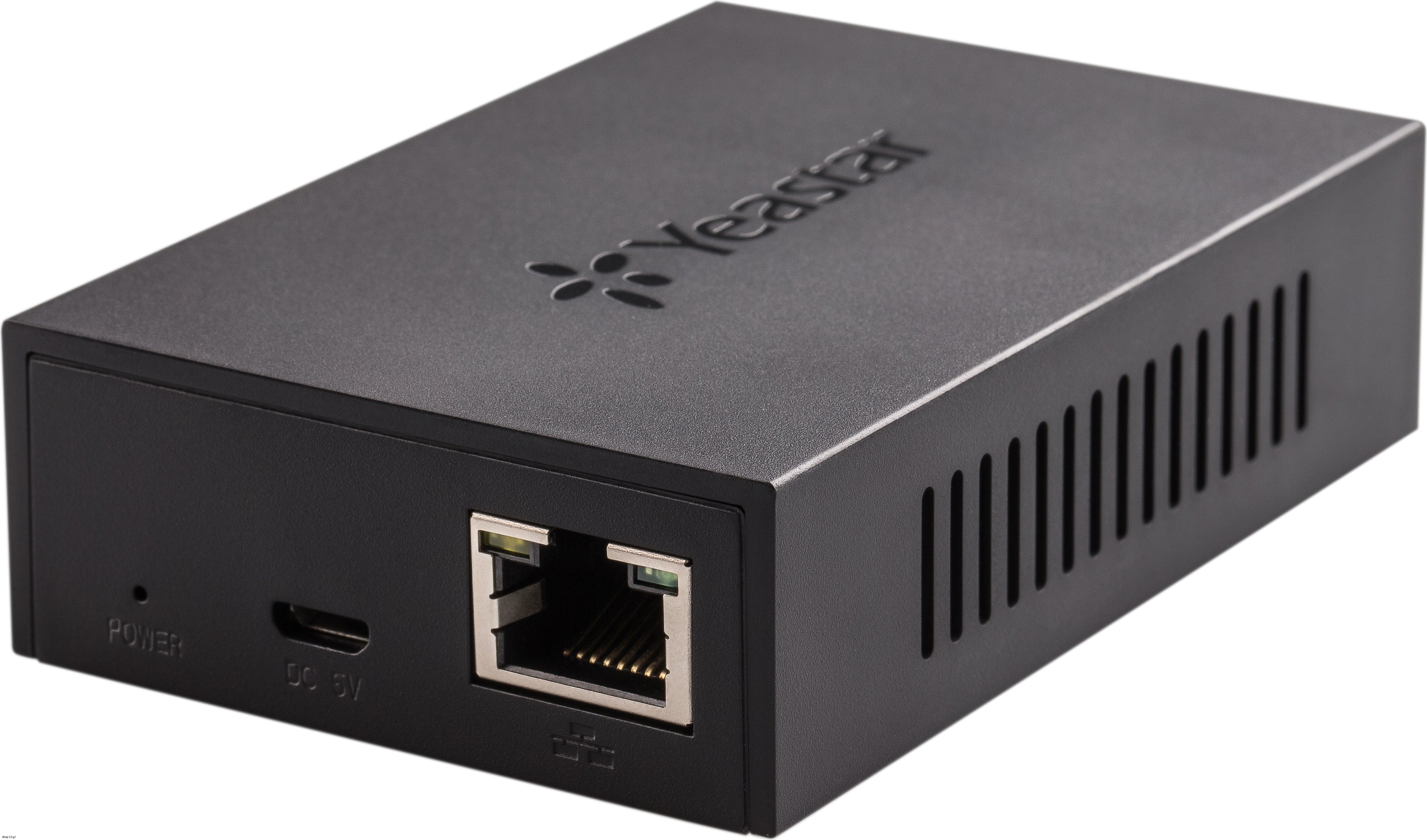

Yeastar TA200 supports 2 FXS ports to connect analog phones to IP-based data networks. It is compliant with SIP industry standard and compatible with various PBX, IP-PBX, softswitches, and phones.
TA200 is a stand-alone FXS VoIP gateway with carrier-grade features and reliability.

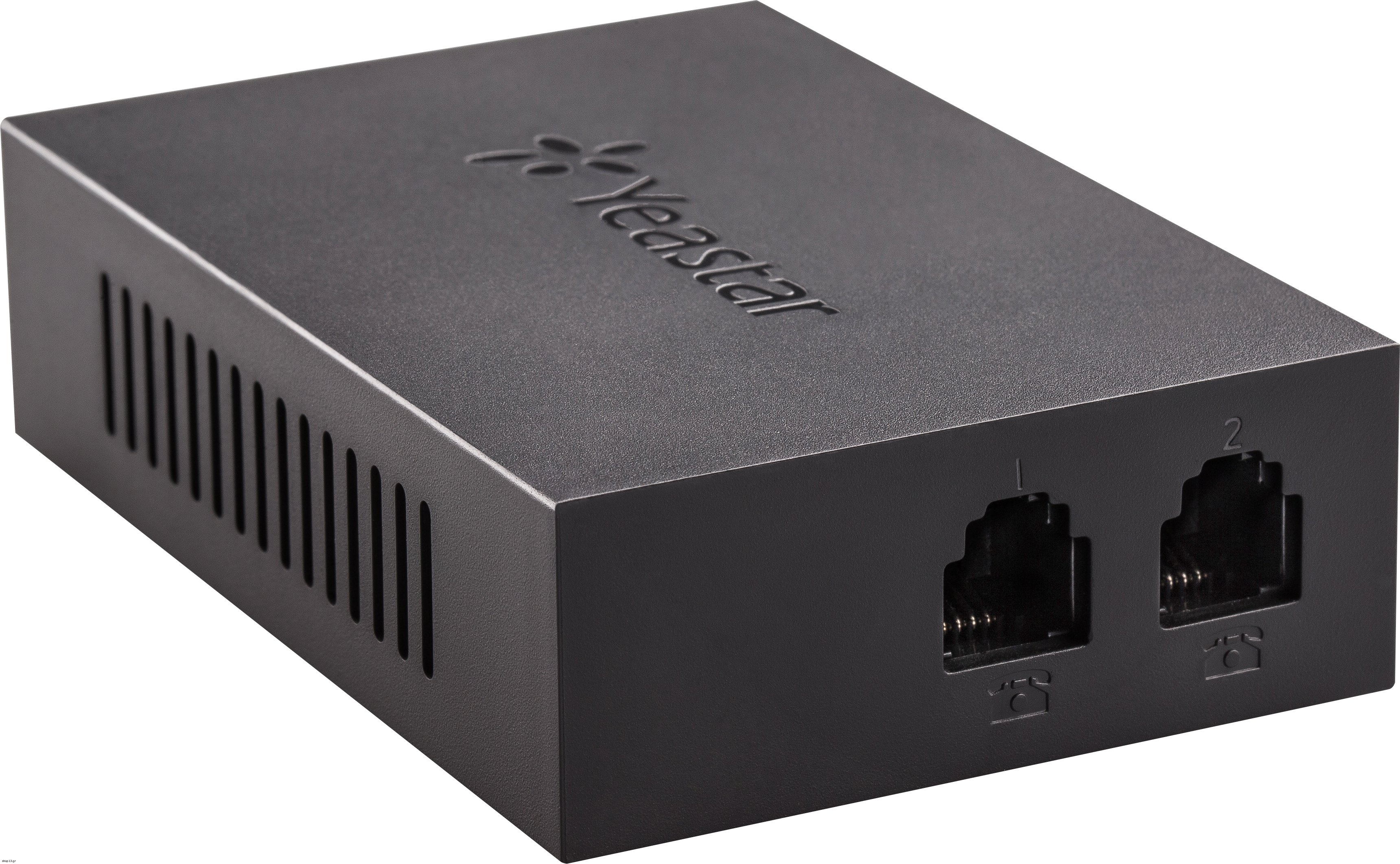

- 2 FXS ports
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Superb voice compression with industry standard codecs
- Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
- Tested and certified with Elastix, BroadSoft, and others
Specifications
RJ11 FXS Ports
2
LAN
1 10/100 Mbps
Micro USB Port
1
Protocol
SIP (RFC3261)
Transport
UDP, TCP, TLS, SRTP
Codec
G.711 (alaw/ulaw), G.729A/B
Voice Capability
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF Mode
RFC2833, SIP Info, In-band
QoS
DiffServ, ToS, 802.1 P/Q VLAN tagging
Network
DHCP, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol
FTP, TFTP, HTTP, HTTPS, SSH
Signaling
FXS Loop Start, FXS Kewl Start
Caller ID
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods
Busy Tone, Polarity Reversal
Power
DC 5V 1A
Dimensions (L x W x H) (mm)
85 x 58 x 24
Operation Range
0°C to 40°C, 32°F to 104°F;
Storage Range
-20°C to 65°C, -4°F to 149°F
Humidity
10-90% non-condensing
Mounting
Desktop
Compatibility
Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix.
