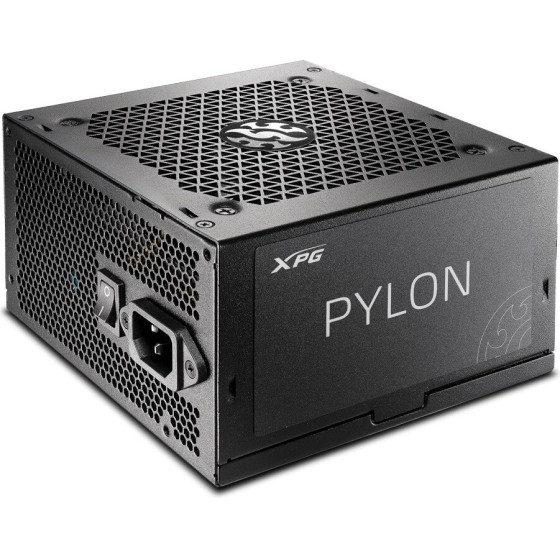

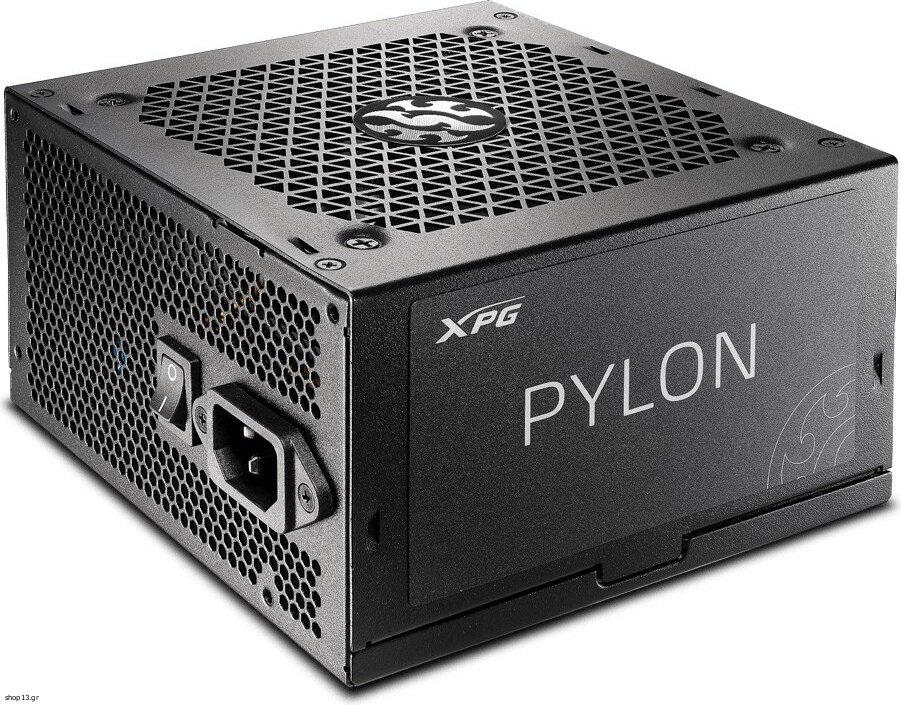

XPG PYLON 550W Power Supply - (75260122)

Technical details
Sustainability certificates: ErP
Sustainability compliance: Yes

Design
Fan diameter: 12 cm
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)

Power
Power protection features: Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating
Power factor: 0.99
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Total power: 550 W
Input current: 8/4 A
Max output current (+12V): 45.5 A
Combined power (+12V): 546 W
Max output current (+5Vsb): 2.5 A
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 20 A
Max output current (+3.3V): 20 A
Combined power (+5V): 110 W
Combined power (+3.3V): 110 W
Power Factor Correction (PFC) type: Active
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W

Weight & dimensions
Depth: 150 mm
Width: 140 mm
Height: 86 mm

Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
ATX version: 2.4

Packaging content
Cables included: AC

Certificates
Compliance certificates: RoHS

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 1
ATX Power connector (24-pin): Yes
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 5
EPS power connector (4+4 pin): Yes
Cabling type: Non-Modular
PCI Express power connectors (6+2 pin): 2

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Do not open the case - risk of electric shock.


Warranty: warranty 60 months
