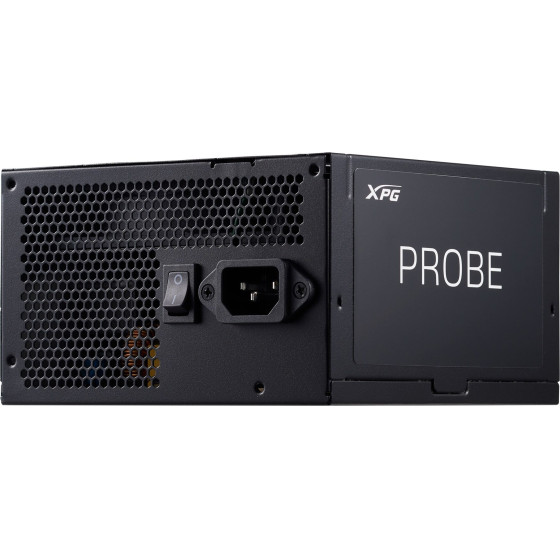

XPG PROBE 600 BRONZE Power Supply - (75261547)

Design
Fan speed: 2160 - 2640 RPM
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 19 A
Power protection features: Surge & inrush protection (SIP), Over power, Short circuit, Over voltage, Under voltage
Input current: 10 A
Max output current (+12V): 46 A
AC input frequency: 47 - 63 Hz
Max output current (+5Vsb): 2.5 A
Total power: 600 W
Power factor: 0.99
AC input voltage: 100 - 240 V
Max output current (+5V): 17 A
Max output current (-12V): 0.3 A

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 150 mm
Height: 86 mm
Weight: 1.48 kg
Depth: 140 mm

Performance
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Bearing technology: Sleeve
Power supply unit (PSU) form factor: ATX
ATX version: 2.52

Ports & interfaces
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 5
Cabling type: Non-Modular
ATX Power connector (24-pin): Yes
Motherboard power connector: 20+4 pin ATX
