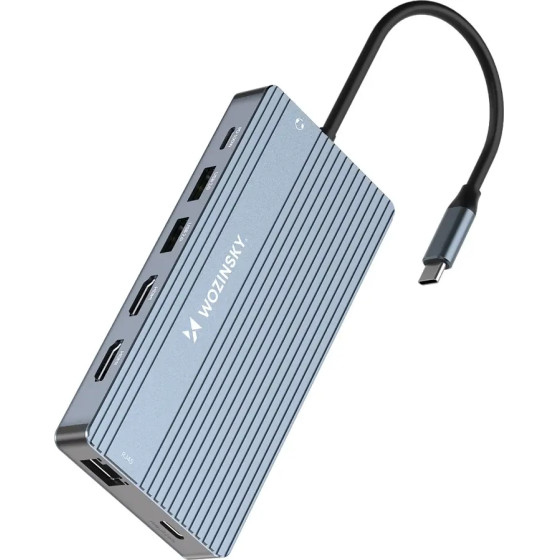

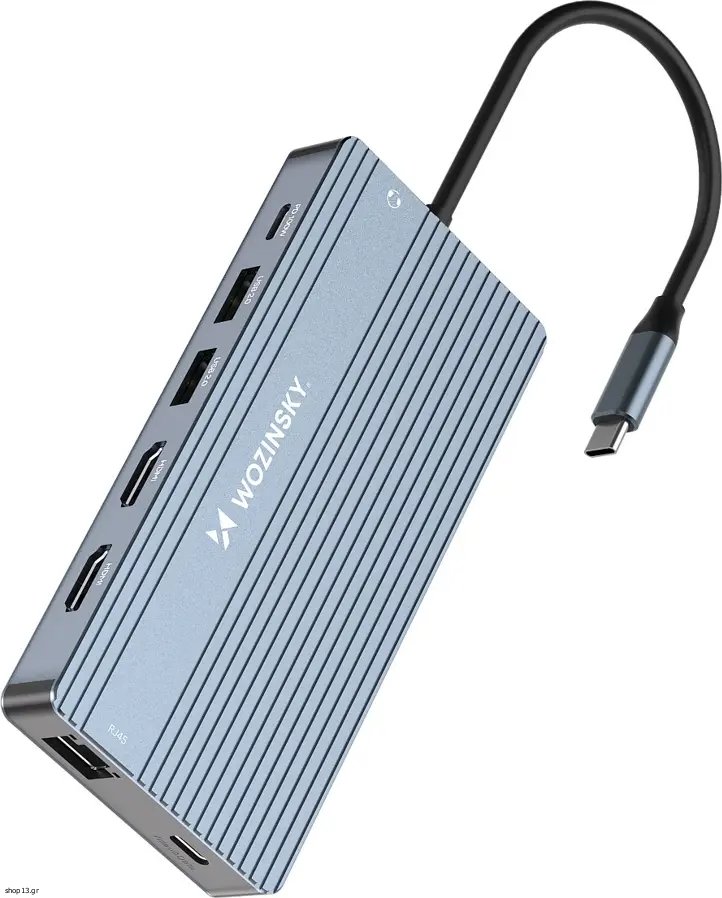

USB-C Hub 14 in 1 Wozinsky WDS03Y5S Multifunctional, Aluminum, for 3 Monitors, with 15cm Cable - Gray Wozinsky WDS03Y5S is a true command center for your office - a compact but powerful 14-in-1 USB-C hub that supports up to three monitors in up to 4K/60Hz resolution, ultra-fast data transfer up to 10 Gbps and charging with up to 100W. Thanks to USB-C, HDMI, DisplayPort ports, SD/TF card readers and audio and Ethernet connectors, the device is ideal for stationary, hybrid and mobile work. The aluminum housing not only dissipates heat well, but also provides an elegant and durable appearance. This is a plug & play solution - no drivers to install, ready to work immediately after connecting. Irreplaceable in everyday tasks - from data transfer, through presentations, to charging a laptop.
~
Specification:
Brand: Wozinsky
Model: Wozinsky WDS03Y5S
Weight: 0.18 kg
Connectors: 1 x USB-C 3.2 full-featured (DP, up to 10 Gbps, up to 85W)
1 x USB-C Power Delivery input (up to 100W)
1 x USB-C 3.2 Gen2 & DisplayPort (up to 10 Gbps, 4K@60Hz)
4 x USB-A 3.2 Gen2 (up to 10 Gbps)
2 x USB-A 2.0 (up to 480 Mbps)
2 x HDMI (up to 4096x2160@60Hz)
1 x RJ45 Ethernet (1000M/100/10M)
1 x audio 3.5 mm (microphone + headphones)
1 x SD card reader
1 x TF card reader
Chipsets: GL3590: Supports USB 3.2 Gen2 ports
RTD2145: responsible for DisplayPort and HDMI support
RTL8153B: Supports RJ45 Ethernet port (1Gbps)
VL103: Manages Power Delivery (PD) charging
GL3231: controls SD/TF card readers
GL850S: Supports USB 2.0 ports
GPD8104B: responsible for audio/microphone functions
Cable length: 15 cm
Material: aluminum + ABS plastic
Color: gray
~
The most important advantages of the Wozinsky WDS03Y5S USB-C Hub:
Support for three 4K monitors: Equipped with 2 x HDMI and 1 x DisplayPort - work in extended (MST) or mirrored (SST) mode.
Super-fast data transfers: USB-C and USB-A 3.2 Gen2 ports offer speeds up to 10Gbps - perfect for external drives and high-speed media.
Power Delivery up to 100W: Fast and safe laptop charging with stability - the hub draws only 15W from the power supply.

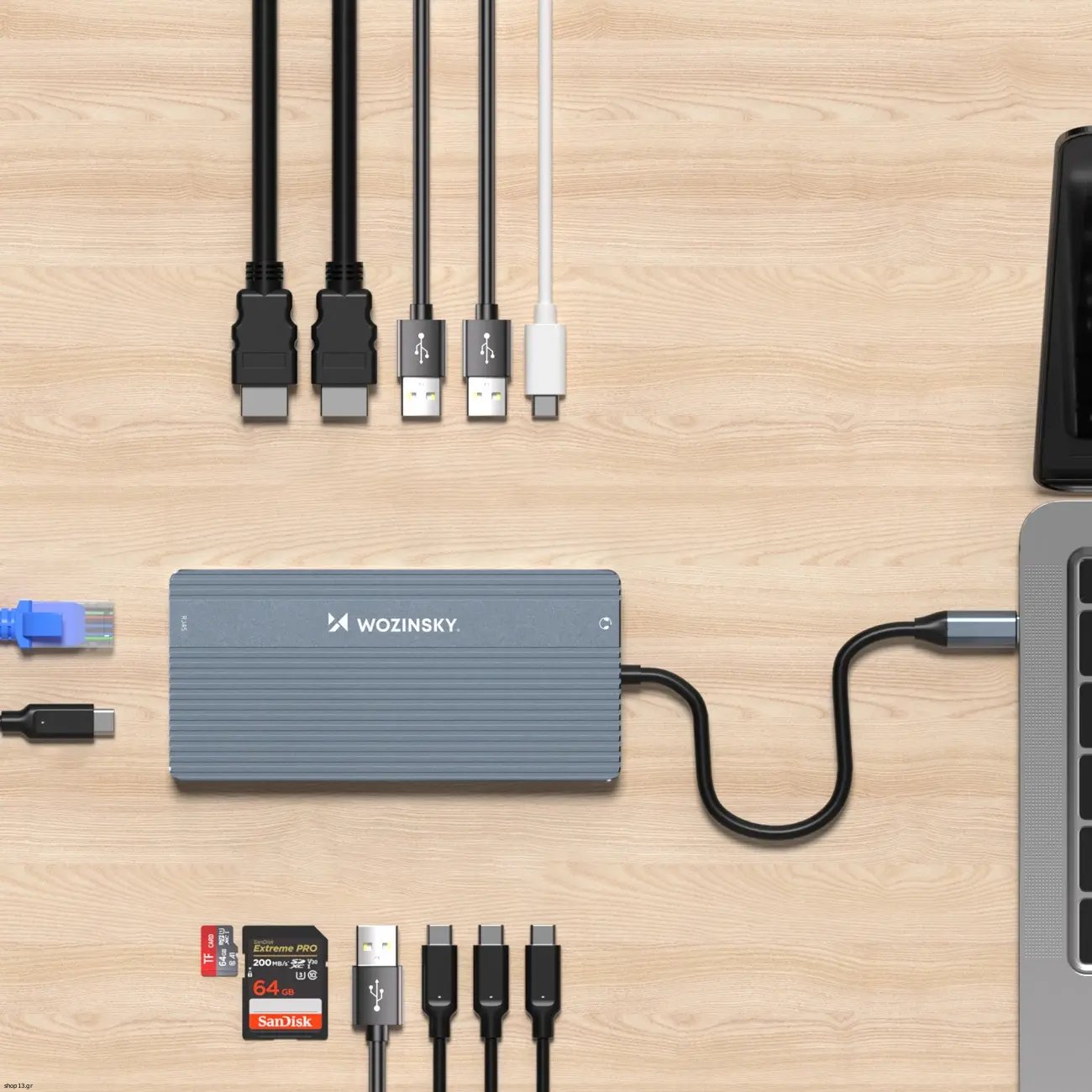

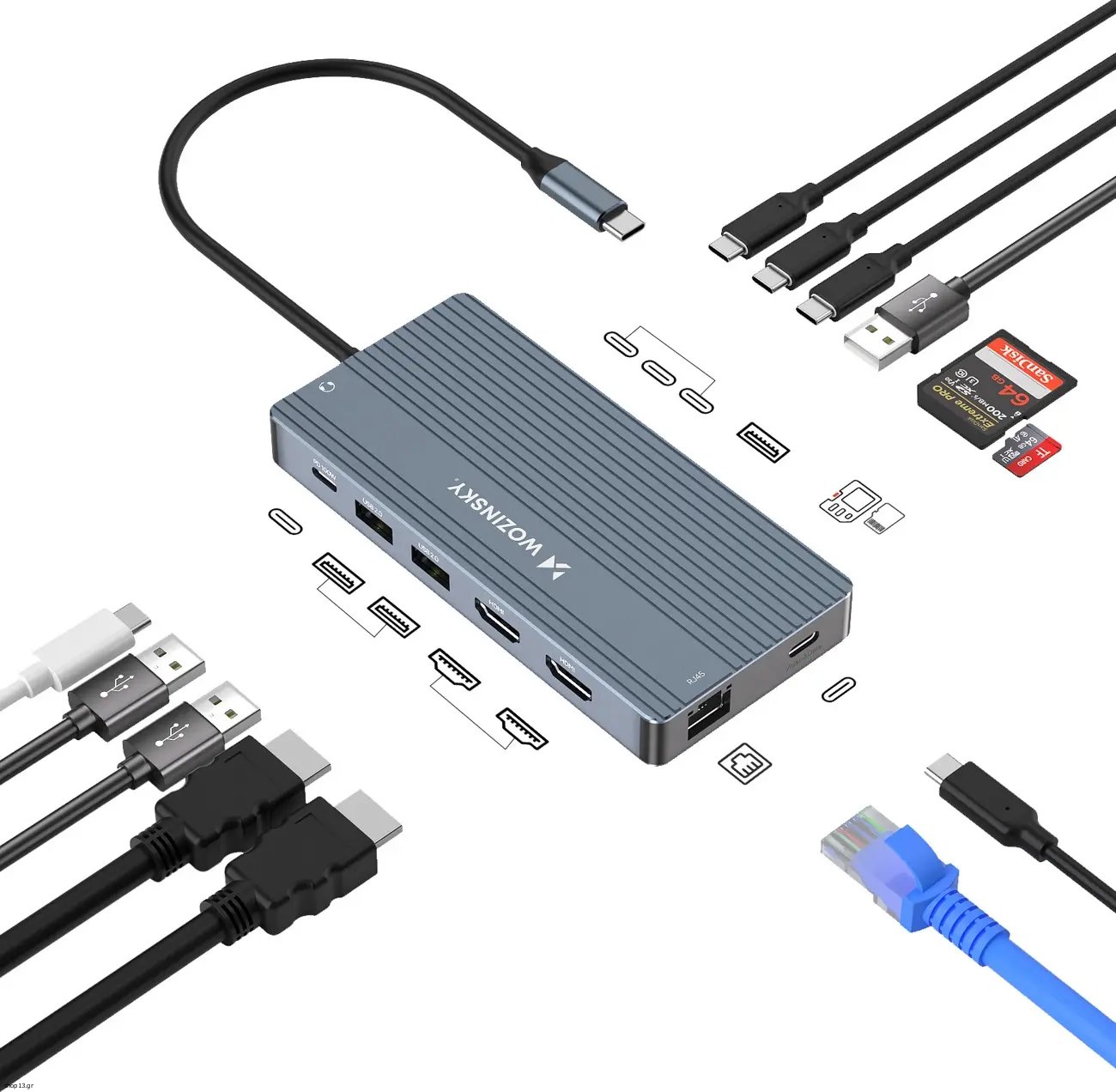

Full connectivity: Gigabit Ethernet, 3.5mm audio, SD/TF card readers, 8 x USB ports - everything you need in one device.
Robust aluminum housing: Durable, stylish and heat-resistant - ideal for heavy-duty use.
~

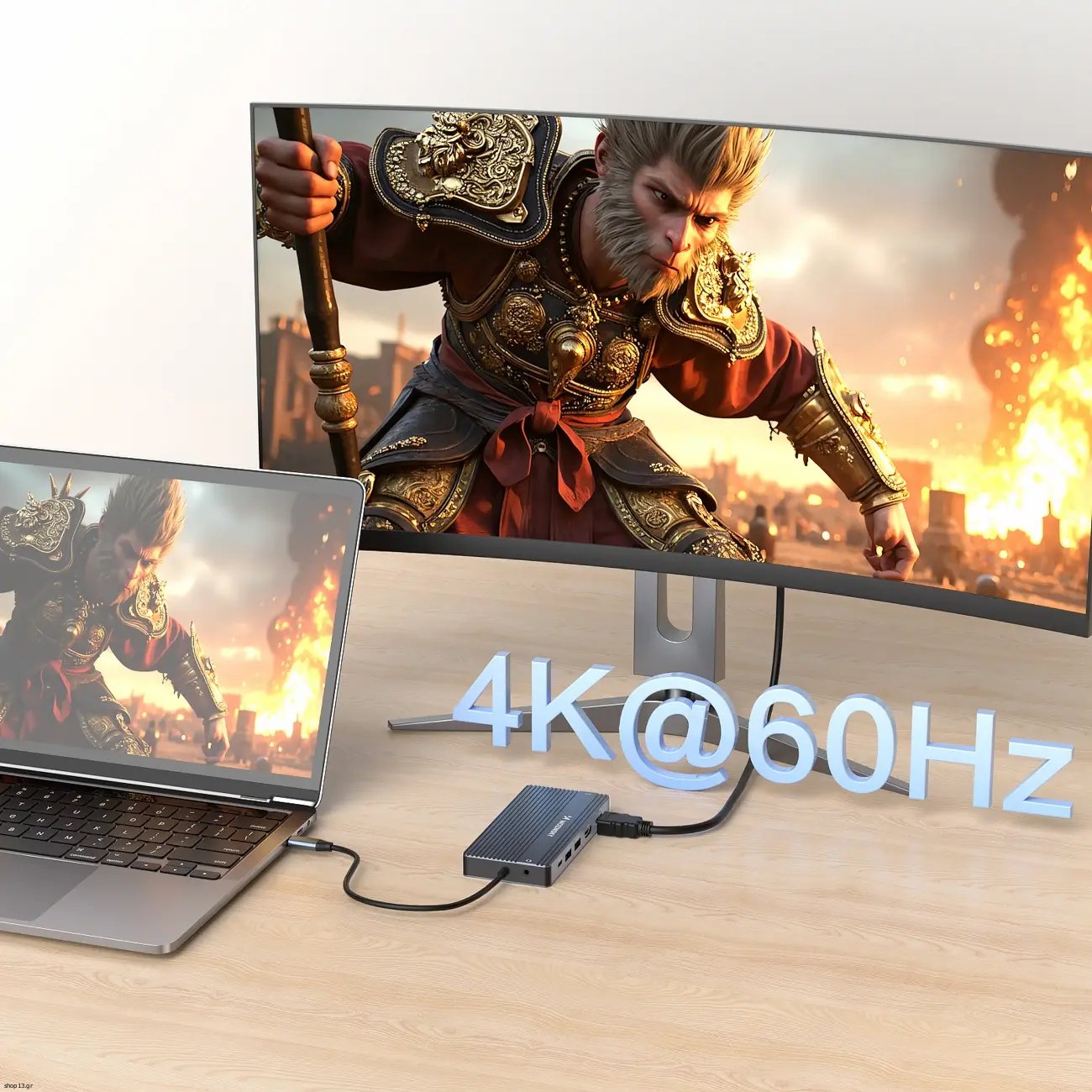

4K Triple Display Support Two HDMI ports and one DisplayPort allow you to connect up to three monitors simultaneously, ensuring flexible work and entertainment while maintaining the highest image quality.
Data transfer speeds up to 10 Gbps Modern USB-C and USB-A 3.2 Gen2 connectors enable lightning-fast transfers of large files and trouble-free handling of fast data carriers.
Charging with power up to 100W The PD 3.0 port ensures fast and safe charging of laptops and smartphones - you save time and maintain work efficiency.
Multifunctional connectivity in one housing A Gigabit Ethernet port, 3.5mm audio jack, SD and TF card readers, and 8 USB ports make this hub up to any office challenge.
Solid and stylish aluminum casing The durable aluminum body not only protects the interior, but also dissipates heat, ensuring quiet and stable operation of the device.
Supported resolutions in MST mode (USB-C DP Alt Mode):
Mode HDMI1 HDMI2 USB-C Comments DP1.4 4096x2160/60Hz X X single video output DP1.4 X 4096x2160/60Hz X single video output DP1.4 X X 3840x2160/60Hz single video output DP1.4 3840x2160/60Hz 3840x2160/60Hz X dual video outputs DP1.4 3840x2160/60Hz X 3840x2160/60Hz dual video outputs DP1.4 X 3840x2160/60Hz 3840x2160/60Hz dual video outputs DP1.4 3840x2160/60Hz 3840x2160/60Hz 3840x2160/30Hz triple video outputs DP1.2 3840x2160/30Hz X X single video output DP1.2 X 3840x2160/30Hz X single video output DP1.2 X X 3840x2160/30Hz single video output DP1.2 2560x1440/60Hz 2560x1440/60Hz X dual video outputs DP1.2 2560x1440/60Hz X 2560x1440/60Hz dual video outputs DP1.2 X 2560x1440/60Hz 2560x1440/60Hz dual video outputs DP1.2 1920x1080/60Hz 1920x1080/60Hz 1920x1080/60Hz triple video outputs * Resolutions and refresh rates may vary depending on signal source, cable, and monitor. MST mode only works on Windows.
