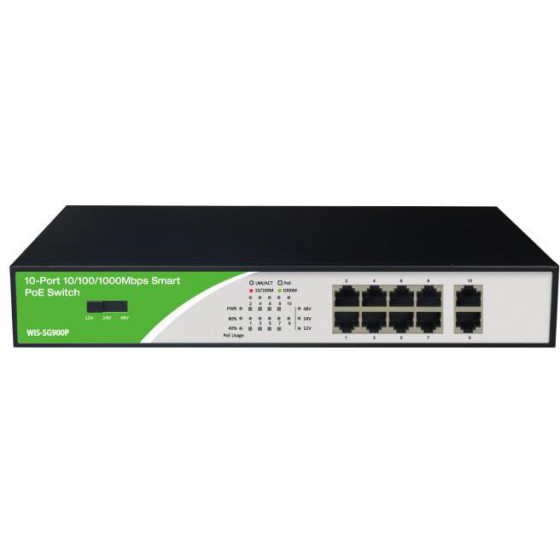

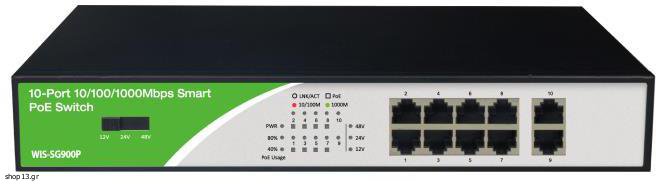

WIS GIGABIT 10PORT SWITCH POE SG900P

Gigabit PoE
Apply to 802.11ac series wisnetworks
products
Seamlessly working with 5GHz backhaul
and base station etc.
Extremely Wide Voltage Scale
Adjustable 12V/24V/48V Output
Support 802.3at and passive PoE
Compatible with all PoE device
Up to 100meters PoE length
Dual Uplink Ports
Adapt to complex networking status
Support for multi-switch cascading

Interface 10x 10/100/1000Mbps auto-negotiation RJ45 port
PoE Ports 1~8
PoE Method 4/5(+)7/8(-)
PoE Output DC: 12/24/48V Adjustable
PoE Power 120W
Forward Type Store and foward
Capacity 20G
MAC Table 8K,Auto-learning, Auto-aging
Jumbo Frame 9KB
PPS 14.88Mpps
Input Voltage AC 100-240V 50-60Hz
Working Temperature 0~40oC
Storage Temperature -40~70oC
Working Humidity 10%~90% RH non-condensing
Storage Humidity 5%~90% RH non-condensing
Dimension 280*179*45mm
Weight 1.5kg
LED PWR, Suply Voltage Indicator, PoE CONS, LNK/ACT, PoE
Cable 10BASE-T: UTP category 3,4,5 cable(
