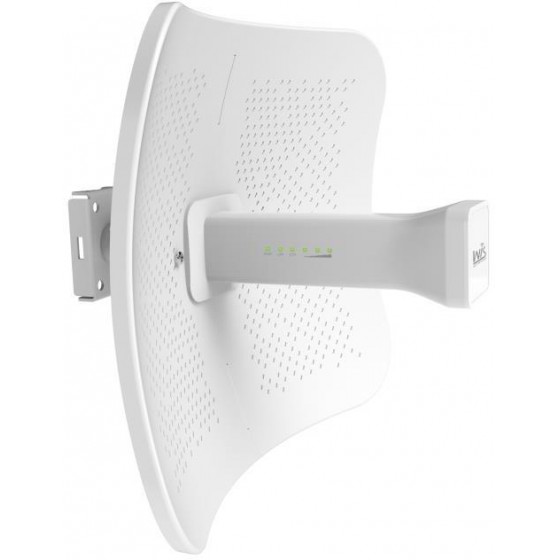

WIRELESS BRIDGE 300MBPS 5GHZ OUTDOOR DISH D5230 WICONTROLLER

Overview:- WiD TDMA greatly improves the network scalability in throughput and latency - Compliant with 802.11n/a, speed up to 300Mbps - 23dBi dual-polarized dish antenna to build robust long range wireless PtP link­ - High output transmission power and receive sensitivity optimized - 40/20/10/5MHz selectable for channel bandwidth - Easy deployment and adjustment with provided mounting kits - Managed with web interface or by NMS WiController - Passive POE(24VDC) for flexible deployment - Weather-proof design for outdoor environment­ - Up to16kV ESD protection


Features:

Physical Characteristics
Dimension 357*283*258mm
Weight 3kg
Enclosure ASA Weatherproof
ESD Protection 16kV
Working Temp -40 ~ 70°C
Storage Temp -40 ~ 85°C
Power 24VDC, 0.75A
Power Consuption 6W
Button Reset
Certification CE, RoHS
Working Humidity 10%~95% non-condensing
Processor Atheros 600MHz
LAN port 1x 10/100 Base-T Ethernet
LED Power:On/Off LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal: 1,2,3

Wireless Characteristics
Wi-Fi Standard 802.11a/n radio
Frequency 5.150~5.5250GHz
Speed 300Mbps
Max Tx Power 23dbm
Rx Sensitivity 300M: -74dBm@10% PER 54M: -78dBm@10% PER 1M: -98dBm@10% PER
Antenna 23dBi dual-polarized dish antenna
Wireless Security WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP)
Advanced Characteristics
VLAN 802.1q
MAC Filter Blacklist
User QOS Speed Limit by User Group
Trunk Port Supported
Firewall Integrated Firewall
NMS WiController
