Περιγραφή

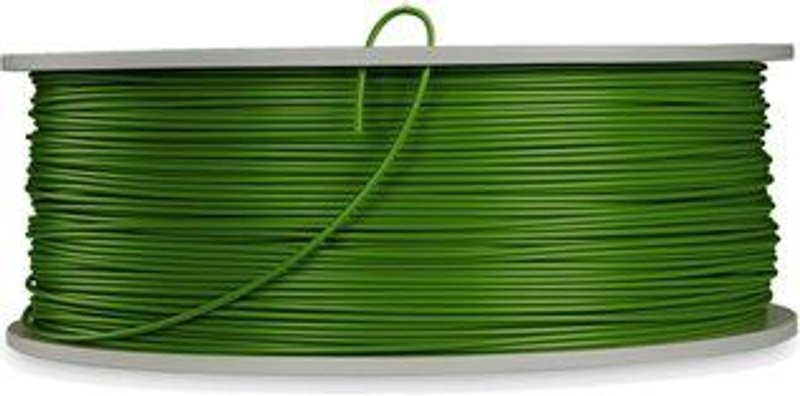

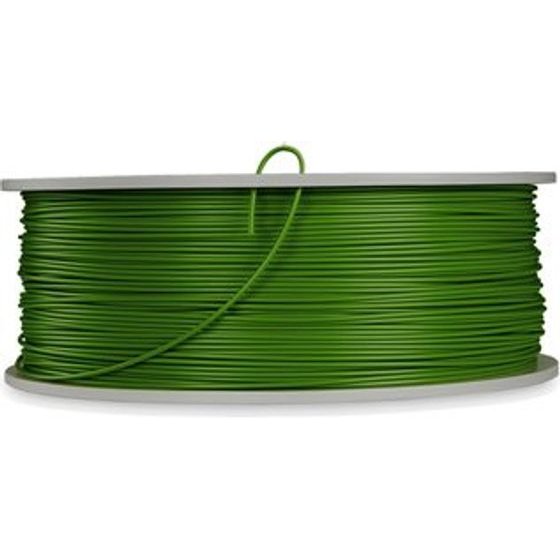

Popular, highly durable filament with a smooth, glossy surface. ABS has a high melting temperature compared to other materials available for 3D printing. This makes it suitable for applications where resistance to high temperatures is important, such as conceptual models for the construction, electrical, and automotive industries. Verbatim ABS is manufactured using special technologies while maintaining a high standard of quality control.
Product details
Highly durable acrylonitrile butadiene styrene (ABS) for material extrusion
Material features high rigidity, high gloss, and medium impact resistance
Resistant to fats and lubricants
Good post-processing capability
Strong odor during printing
Main applications: Prototype models for construction, electrical, automotive industries, etc.; mechanically less stressed components
Technical Data
Product specifications
Diameter tolerance: 1.75 ± 0.05 mm
Net weight: 1.00 kg
Gross weight: 1.5 kg
Filament length: 396 m
Density: 1.05 g/cm?
Flexural strength: 76 MPa
Flexural modulus: 2200 MPa
Impact strength (Charpy): 21 kJ/m?
Molding shrinkage: 0.3 - 0.7 %
Yield strength (JIS K 7113): 47 MPa
Elongation (JIS K 7113): 30 %
Spool dimensions
Spool diameter: 200 mm
Spool depth: 72 mm
Hub diameter: 102 mm
Hub hole diameter: 51 mm
Recommended printer settings
Extrusion temperature: 250 ± 10 "C
Bed temperature: 90 "C
Printing speed: 30 mm/s
