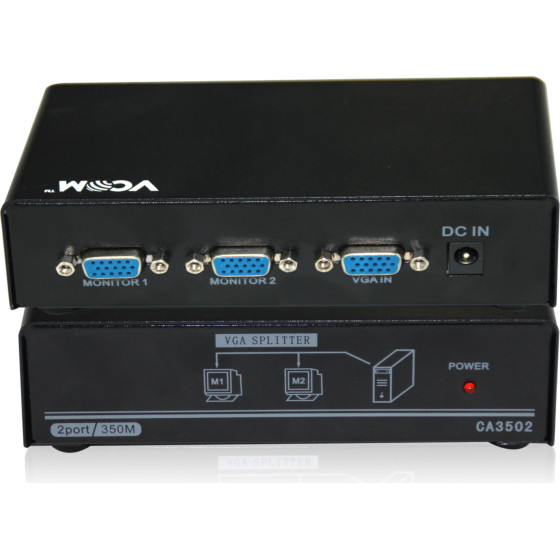

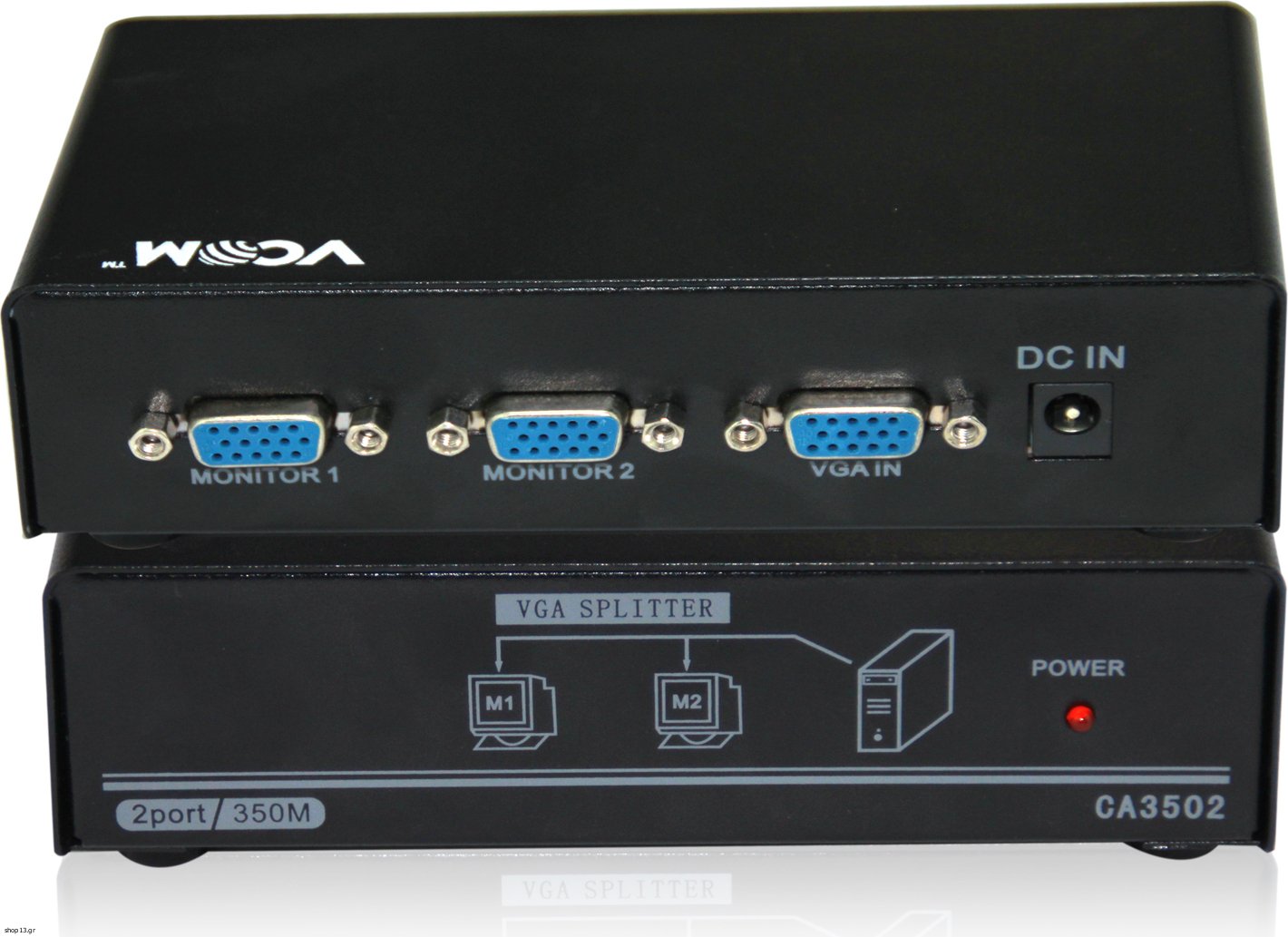

VCom VGA Splitter 1x2 - (DD132)
[Κωδικός : 783298]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
1*2 350MHZ VGA splitterSignal :VGA .SVGA.XGA.QXGA,UXGA and Multisync displays
Input port:1 Port x High Density DB15 (Female)
Output port; 2 port x High Density DB15 (Female)
Video input :1Vp-p
Video impedance :75Ω
Video gain : 0db≦DG≦1db
Maximum Video Resolutions :1920×1440@85HZ
VGA Bandwidth:350M/-3db
Power area:DC12V
Rated power :4W
VGA 1input 4outputMANUFACTURER: VCOM
TYPE: Active converter with external power supply
CONNECTOR 1: Female, VGA
CONNECTOR 2: Female, VGA x 2
COLOR: Black
SHIELDING: Shielded
MAX RESOLUTION: 1920 x 1440
OTHERS: Power board
Input port:1 Port x High Density DB15 (Female)
Output port; 2 port x High Density DB15 (Female)
Video input :1Vp-p
Video impedance :75Ω
Video gain : 0db≦DG≦1db
Maximum Video Resolutions :1920×1440@85HZ
VGA Bandwidth:350M/-3db
Power area:DC12V
Rated power :4W
VGA 1input 4outputMANUFACTURER: VCOM
TYPE: Active converter with external power supply
CONNECTOR 1: Female, VGA
CONNECTOR 2: Female, VGA x 2
COLOR: Black
SHIELDING: Shielded
MAX RESOLUTION: 1920 x 1440
OTHERS: Power board
Χαρακτηριστικά
Μοντέλο
VCom VGA Splitter 1x2 - (DD132)
