Περιγραφή
Technical Specifications Output Max Configurable Power (Watts) 900 Watts / 1.6kVA Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains Topology Line interactive Waveform type Stepped approximation to a sinewave Transfer Time 6 ms typical : 10 ms maximum Input Input frequency 50/60 Hz +/- 5 Hz Auto-sensing Input voltage range for main operations 140 - 300V Number of Power Cords 1 Input Power Factor at Full Load 0.56 Batteries & Runtime Battery type Lead-acid battery Typical recharge time 8hour(s) Nominal Battery Voltage 24 V Expected Battery Life (years) 3 - 5 Battery Volt-Amp-Hour Capacity 168 Runtime View Runtime Graph Efficiency View Efficiency Graph Communications & Management Interface Port(s) USB Control panel LED Status display with on line : on battery Audible Alarm Alarm when on battery : distinctive low battery alarm Surge Protection and Filtering Surge energy rating 273Joules Data Line Protection RJ45 10/100/1000 Base-T Ethernet protection Physical Maximum Height 190MM, 19.0CM Maximum Width 140MM, 14.0CM Maximum Depth 390MM, 39.0CM Net Weight 10.3KG Shipping weight 11.3KG Shipping Height 190MM, 19.0CM Shipping Width 140MM, 14.0CM Shipping Depth 390MM, 39.0CM Color Black SCC Codes 10731304410826 Environmental Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 (Non-condensing) % Operating Elevation 0 - 3000meters Storage Temperature -15 - 40 °C Storage Relative Humidity 0 - 95 (Non-condensing) % Storage Elevation 0 - 3000meters Audible noise at 1 meter from surface of unit 40.0dBA Protection Class IP20 Conformance Approvals CB , CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2 Equipment protection policy Lifetime : 50000 euros Standard warranty 2 years repair or replace
Κατασκευαστής : APC
Τύπος UPS : Line Interactive
Είδος : Tower

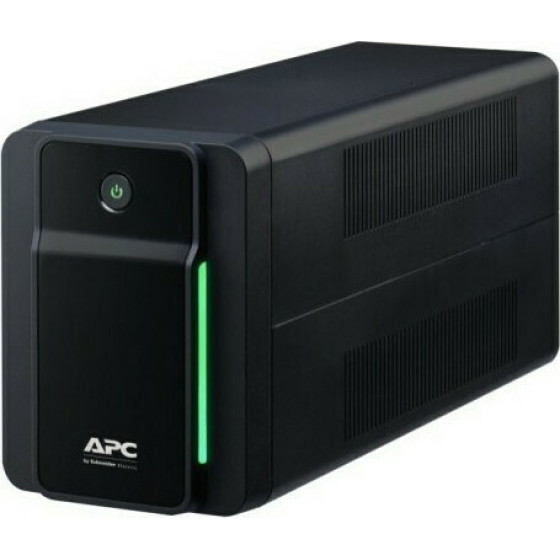

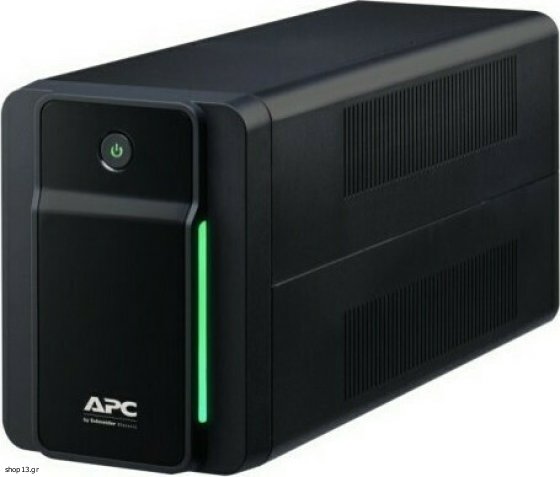

Part Number : BX1600MI
Μεικτό βάρος : 12 kg
Καθαρό βάρος : 11,3 kg
EAN Number : 0731304410829
Εγγύηση : 2 έτη
