Description

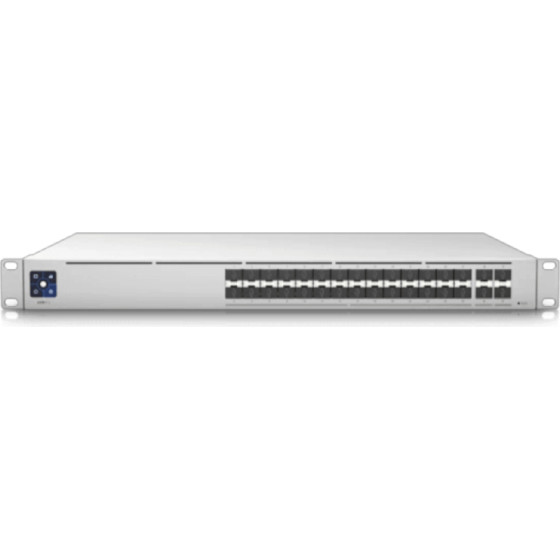

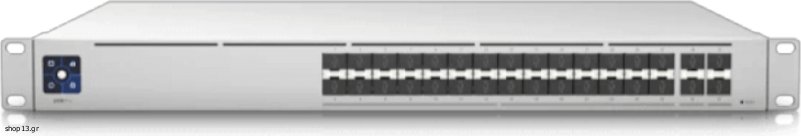

The UniFi Switch Pro Aggregation is a fully managed, Layer 3 switch with (4) 25G SFP28 ports and (28) 10G SFP+ ports.
The UniFi Switch Pro Aggregation utilizes high-bandwidth links to create link aggregation that enhances its switching capacity. The UniFi Switch Pro Aggregation is managed with the UniFi Network application (web and mobile), allowing you to easily build, scale, and monitor your enterprise networks.
Features:
(28) 10 Gbps SFP+ ports
(4) 25 Gbps SFP28 ports
760 Gbps switching capacity
(1) 1.3" touchscreen with AR switch management
(1) Backup 12V DC input connector, SmartPower RPS
Managed with UniFi Network Application Version: 6.1.25 or higher
Specifications
Mechanical
Dimensions
442 x 325 x 44 mm
(17.4 x 12.8 x 1.7?)
Weight
Without Mount: 4.6 kg (10.14 lb)
With Mount: 4.7 kg (10.36 lb)
Enclosure Material
SGCC Steel
Hardware
Total Non-Blocking Throughput
380 Gbps
Switching Capacity
760 Gbps
Forwarding Rate
565.44 Mpps
Max. Power Consumption
100W
Power Method
(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply
AC/DC, Internal, 100W
Network Interface
(28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet*
LCM Display
(1) 1.3? Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
LEDs
SFP28/SFP+: White, Link and Activity
Management Interface
Ethernet In-Band
Modes
SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection
Air: ± 16kV, Contact: ± 12kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
