Description

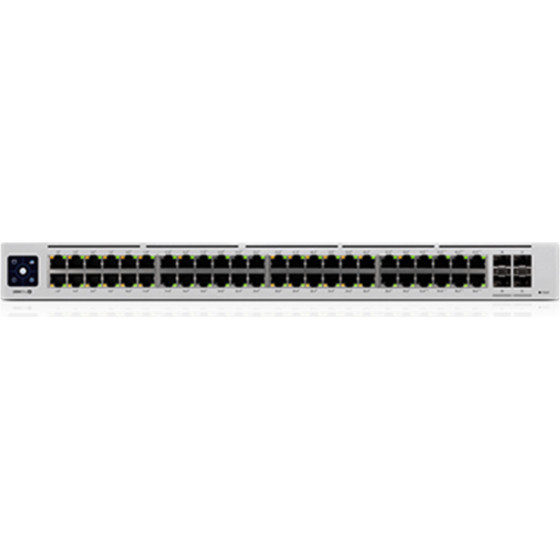

UniFi Switch Pro 48 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (40) 802.3at (PoE+) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 PoE is the ideal access layer switch for any UniFi solution - it combines up to 600W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network application and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features
(8) Gigabit RJ45 802.3bt PoE++ ports
(40) Gigabit RJ45 802.3at PoE+ ports
(4) 10G SFP+ ports
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3? touchscreen display
Managed with UniFi Network application
Managed with UniFi Network Application Version: 5.10.5 or higher
Specifications
Mechanical
Dimensions
442.4 x 399.6 x 43.7 mm
(17.42 x 15.73 x 1.72?)
Weight
With Brackets
6.25 kg (13.78 lb)
6.34 kg (13.98 lb)
Interfaces
NetworkingManagement
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput
88 Gbps
Switching Capacity
176 Gbps
Forwarding Rate
130.944 Mpps
Power Method
Universal Input
USP RPS DC Input
100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply
AC/DC, Internal, 120W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
60W
LEDs
System
RJ45 Data Ports
SFP+ Data Ports
Status
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
PoE
Total Available PoE
600W
PoE Interfaces
Ports 1-40
Ports 41-48
POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE
802.3at
802.3bt
32W
64W
Voltage Range 802.3af Mode
44-57V
Voltage Range 802.3at Mode
50-57V
