Description

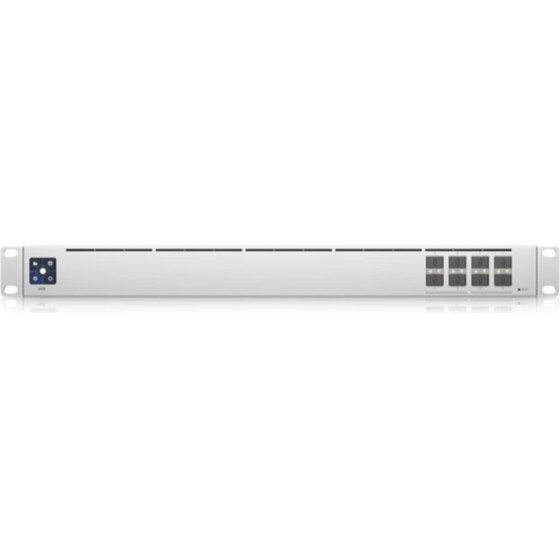

The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3? LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7? depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. Specifications
Dimensions
442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72?)
Weight Without Mount
2.65 kg (5.84 lb)
With Mount
2.74 kg (6.04 lb)
Enclosure Material
SGCC Steel
Total Non-Blocking Throughput
80 Gbps
Switching Capacity
160 Gbps
Forwarding Rate
119.04 Mpps
Max. Power Consumption
30W
Power Method
Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply
AC/DC, Internal, 36W
Management Interface
Ethernet In-Band
Modes
SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection
Air: ± 16kV, Contact: ± 12kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
