Description

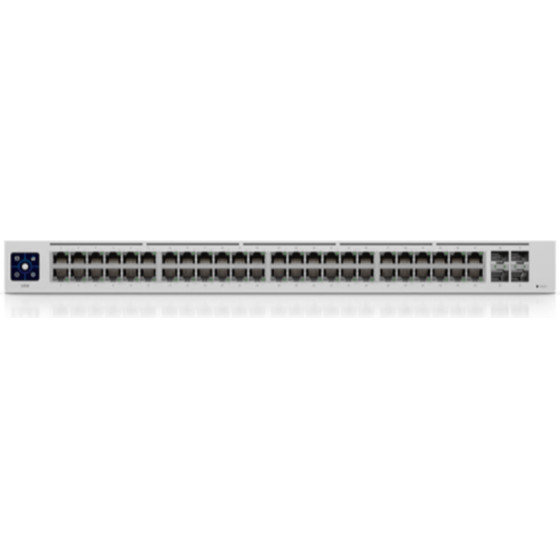

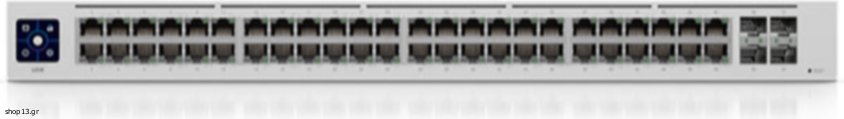

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3? touch LCM to provide status.
Features
(48) Gigabit Ethernet Ports including (32) 802.3at PoE+
(4) 1G SFP Ports
1.3? touch LCM
240W Power supply
Managed with UniFi Network Application Version: 5.12.32 or higher
Specifications
Mechanical
Dimensions
442.4 x 285 x 43.7 mm
(17.42 x 11.22 x 1.72?)
Weight
With Rackmount Brackets
4.52 kg (9.97 lb)
4.61 kg (10.16 lb)
Interfaces
NetworkingManagement
(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput
52 Gbps
Switching Capacity
104 Gbps
Forwarding Rate
77.38 Mpps
Power Method
100-240VAC, 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 240W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
45W
LEDs
RJ45 Data Ports
SFP Data Ports
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
PoE
Total Available PoE
195W
PoE Interfaces
Ports 1-32
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at
32W
Voltage Range 802.3af Mode
44-57V
Voltage Range 802.3at Mode
50-57V
